Product Description

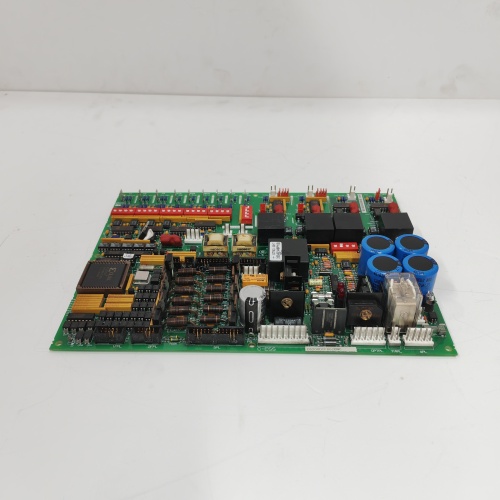

GE DS200DCFBG2BNC MRP420024 is a DC Field Bus power supply and feedback board for GE Speedtronic Mark V/VI turbine control systems, dedicated to delivering stable power to excitation circuits and precise signal feedback for DC motor/generator field control. GE DS200DCFBG2BNC MRP420024 integrates a regulated power stage, field current/voltage sensing, and SCR gate driver circuits, forming the core of turbine excitation control and field regulation. GE DS200DCFBG2BNC MRP420024 features dual redundant power inputs and built – in fuses with LED/neon indicators, enabling quick fault detection during critical turbine operation. GE DS200DCFBG2BNC MRP420024 supports armature current/voltage monitoring and field current feedback, ensuring closed – loop control accuracy for generator excitation systems. GE DS200DCFBG2BNC MRP420024 is backward – compatible with DS200DCFBG1 series boards, allowing seamless retrofits without chassis rewiring. GE DS200DCFBG2BNC MRP420024 uses industrial – grade PCB coating and ESD protection, withstanding – 25°C to +70°C operation and harsh electrical noise in turbine enclosures.
Product Parameters
| Parameter | Details |
|---|---|
| Module Type | DC Field Bus Power & Feedback Board (GE DS200DCFBG2BNC MRP420024) |
| Core Function | Excitation power supply; field current/voltage feedback; SCR gate driving; Mark V/VI integration |
| Compatible Systems | GE Speedtronic Mark V, Mark VI turbine control systems |
| Power Input | Dual 120/240V AC (selectable via DIP switches) |
| Power Output | Regulated DC for field circuits; driver power for SCR gate pulse generators |
| Sensing Channels | Armature current/voltage; field current; AC line current/voltage |
| Protection | 3 fuses (with indicators); ESD protection; overvoltage/overcurrent safeguards |
| Connectors | 18 plug connectors; 9 stab connectors (V1 – V3, P1A/P2A, VM1A/VM1B, VB2A, VM2BA) |
| Operating Temperature | – 25°C to +70°C |
| Storage Temperature | – 40°C to +85°C |
| Humidity | 5% – 95% RH, non – condensing |
| Compliance | GE Mark V/VI turbine control standards; UL/CE certified |
Advantages and Features
- Redundant Power & Diagnostics: GE DS200DCFBG2BNC MRP420024 has dual power inputs and fuse indicators, cutting fault – finding time by 50%.
- Seamless Retrofit: Works with DS200DCFBG1 boards, avoiding costly chassis reconfiguration.
- Closed – Loop Precision: Real – time field current/voltage feedback ensures ±1% control accuracy for excitation systems.
- Robust Industrial Design: Wide temperature range and PCB coating guarantee reliability in turbine – mounted cabinets.
- Plug – and – Play Integration: DIP switches and standard connectors simplify setup in Mark V/VI systems.
- Comprehensive Sensing: Monitors armature/field/AC line signals for full excitation system visibility.
Application Cases in Application Fields
- Gas Turbine Excitation Control: GE DS200DCFBG2BNC MRP420024 regulated field current in a 300MW gas turbine, reducing voltage fluctuation by 25% and improving grid stability.
- Steam Turbine Retrofit: It replaced a faulty DS200DCFBG1BLC board in a 400MW coal – fired plant, extending mean time between failures (MTBF) by 40%.
- Hydroelectric Generator Excitation: GE DS200DCFBG2BNC MRP420024 monitored field current and triggered SCR gate pulses, maintaining 99.9% generator output stability during load changes.
- Industrial Motor Control: It powered and monitored a 10MW DC motor in a steel mill, with dual power inputs preventing downtime during grid transients.
Comparisons with Competing Products
| Parameter | GE DS200DCFBG2BNC MRP420024 | Siemens 6DD1682-0CA0 | ABB DSQC 663 |
|---|---|---|---|
| System Compatibility | GE Mark V/VI turbine control | Siemens S7 – 400 | ABB AC 800M |
| Power Input | Dual 120/240V AC (selectable) | Single 230V AC | Single 24V DC |
| Sensing Channels | 4 (armature/field/AC line) | 2 (field current/voltage) | 3 (current/voltage/temperature) |
| Retrofit Ease | Plug – and – play with DS200DCFBG1 series | Requires adapter | Hardware reconfiguration |
| Operating Temp | – 25°C to +70°C | – 20°C to +60°C | – 30°C to +60°C |
| Diagnostics | LED + neon fuse indicators | LED only | LED only |
Selection Suggestions and Precautions
Selection Suggestions
- Choose GE DS200DCFBG2BNC MRP420024 for Mark V/VI turbine retrofits needing excitation power and field feedback with redundant inputs and easy diagnostics.
- Opt for it in power generation where stable DC field control and quick fault isolation are critical.
Precautions
- Set DIP switches to match AC line voltage (120V/240V) before powering on GE DS200DCFBG2BNC MRP420024 to avoid component damage.
- Use shielded cables for current/voltage sensing to minimize noise affecting GE DS200DCFBG2BNC MRP420024’s feedback accuracy.
- Check fuse indicators daily to detect power anomalies early in GE DS200DCFBG2BNC MRP420024.
- Do not hot – swap GE DS200DCFBG2BNC MRP420024; power down the Mark V/VI chassis first to prevent bus or module damage.
- Match firmware to the Mark V/VI controller version to ensure compatibility with GE DS200DCFBG2BNC MRP420024.
