GE DS200DCFBG1BLC

Description

Product Overview

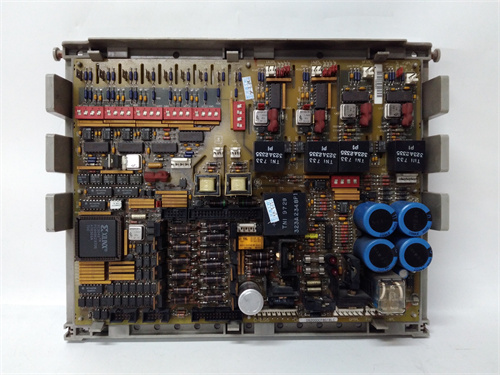

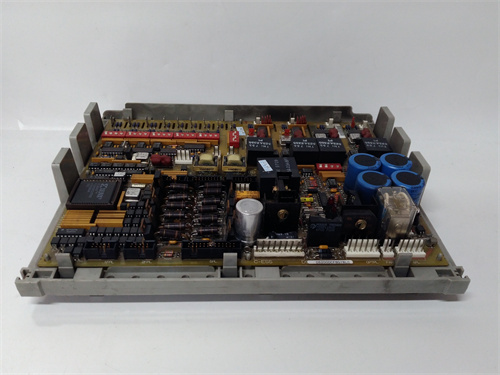

The GE DS200DCFBG1BLC is a critical I/O communication and control board designed for General Electric’s Mark VI and Mark VIe series gas/steam turbine control systems. This module, often referred to as a Device Control Fabric Board (DCFB), serves as a high-speed communication hub and I/O expander within the turbine control cabinet. Its primary function is to facilitate deterministic data exchange between the main turbine controller (CPU) and various distributed I/O packs (DIOBs) and other specialized boards, while also providing additional control logic processing and hardware interfacing capabilities. For detailed technical manuals, wiring diagrams, and configuration guides, please consult the official product resource: GE DS200DCFBG1BLC. The reliability of the GE DS200DCFBG1BLC is paramount, as it forms a core part of the control fabric that governs the safe and efficient operation of high-value turbomachinery assets.

Product Parameters and Specifications

• Function: Device Control Fabric Board (I/O Communication & Control Processor) for GE Mark VI/Mark VIe.
• Communication Role: Manages the Fabric Bus, a proprietary, high-speed deterministic network (often PCI-based) that connects the main control processors (Cores) with distributed I/O blocks and other fabric boards.
• Processor: Contains a dedicated microprocessor and FPGA (Field-Programmable Gate Array) to handle real-time communication protocols and execute local control logic.
• Memory: Includes onboard RAM and flash memory for storing firmware, configuration, and application logic.
• I/O Connectivity: Provides multiple connectors for interfacing with other boards in the rack via the fabric bus backplane and for connecting to field devices or networks through daughterboards or terminal boards.
• LED Indicators: Features multiple status LEDs for power, communication health, fault indication, and operational state.
• Form Factor: A printed circuit board (PCB) designed to slot into a specific slot within a Mark VIe control rack (e.g., in an EX2100e excitation controller or a standalone turbine controller).
• Firmware: Operates with specific GE-issued firmware that defines its communication and control capabilities.

Advantages and Key Features

The GE DS200DCFBG1BLC offers key advantages within the GE turbine control ecosystem. Its core feature is enabling deterministic, high-speed communication across the control system, ensuring synchronized data acquisition and control output essential for fast-acting turbine protection and control loops. It provides distributed processing capability, offloading specific tasks from the main CPU to improve overall system performance and responsiveness. The board enhances system scalability and modularity by serving as a central hub for adding additional I/O blocks. Its design focuses on high reliability and fault diagnosis, with comprehensive status LEDs and firmware-based diagnostics that aid in rapid troubleshooting. As a genuine GE component, the DS200DCFBG1BLC guarantees full electrical and software compatibility with the Mark VIe system, ensuring proper operation and preserving system certifications.

Application Cases in Industry

This board is exclusively used in turbomachinery control applications powered by GE’s Mark VIe platform. Its primary application is in Gas Turbine Power Generation, where it is a core component in the unit controller, managing communication between the CPU and I/O that monitors combustion temperatures, fuel valve positions, and vibration probes. In Steam Turbine Control, it performs a similar role for governing systems and auxiliary monitoring. The GE DS200DCFBG1BLC is also found in Mechanical Drive Turbines used in oil and gas compression and pipeline applications. Furthermore, it is a critical part of the EX2100e Excitation Control System for generators, managing the interface between the regulator and the power bridge. Any industry relying on GE heavy-duty gas or steam turbines for prime movers will have this board in its control infrastructure.

Comparison with Competing Products

The GE DS200DCFBG1BLC does not have a direct functional competitor from other manufacturers, as it is a proprietary component within a closed, highly specialized control system. Comparisons are typically made within the GE ecosystem:

1. Genuine GE Spare (this board): Guarantees full compatibility, reliability, and support from GE.
2. Third-Party Replica or Refurbished Board: May be available but carries risks related to component quality, firmware integrity, and potential lack of proper testing. Its use may be unsupported by GE.
3. Previous Generation Equivalents: It may be compared to older DCFB versions (e.g., DS200DCFBG1AAA) for upgrade or replacement purposes, with differences in firmware features or hardware revisions.
   The board’s true “competition” is the decision to replace the entire legacy Mark VIe subsystem with a newer control platform, which is a major capital project versus a component-level repair using the DS200DCFBG1BLC.

Selection Suggestions and Precautions

• Selection Advice:

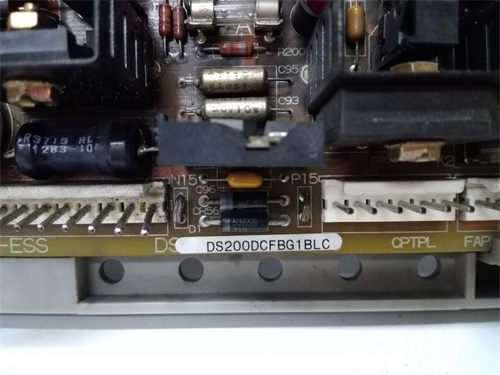

  1. Exact Replacement is Critical: This board must be an exact match for the failed unit. The full part number DS200DCFBG1BLC (including the suffix BLC) must be verified from the label on the original board. Suffixes denote critical firmware or hardware revisions.
  2. System Identification: Identify the exact Mark VIe system model, serial number, and application (e.g., GT, ST, EX2100e) to ensure compatibility.
  3. Firmware Compatibility: The replacement board may require a specific firmware version to be loaded. This must be confirmed with GE technical support or the board’s documentation. Some boards are shipped blank.
  4. Source from Authorized Channels: To avoid counterfeit or incompatible parts, purchase this critical spare only from GE or its authorized distributors for turbine controls.
• Important Precautions:
  1. ESD Protection: This is a sensitive electronic assembly. Handle with strict Electrostatic Discharge (ESD) precautions—use a grounded wrist strap and anti-static packaging.
  2. System Shutdown and Safety: The entire turbine must be shut down, and the control cabinet must be fully de-energized, locked out, and tagged out (LOTO) before removing or installing the board. High voltages are present.
  3. Configuration Backup: Before removing the old board, ensure a complete backup of the turbine controller’s configuration and application software is available. Configuration may need to be restored or verified after board replacement.
  4. Professional Service: Replacement and subsequent testing should be performed by qualified technicians trained on GE Mark VIe systems. Improper installation or configuration can lead to turbine damage or unsafe operation.
