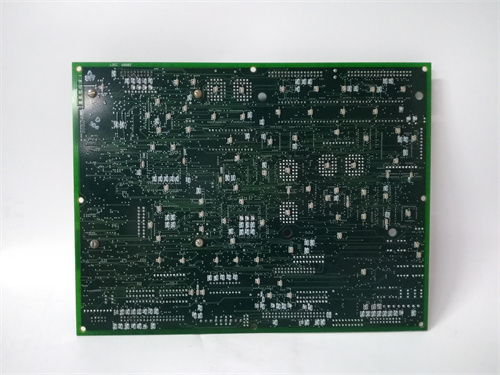

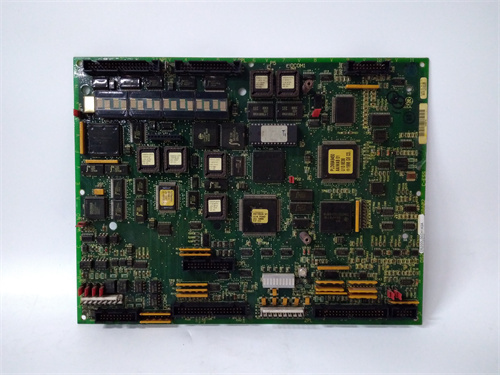

GE DS200DCFBG1B

Description

1. Product Overview

2. Product Parameters

2.1 Core Power Supply Specifications

• Input Voltage: 24V DC (±10%) (primary), 48V DC (±10%) (redundant, optional)
• Output Voltages (Regulated):
  • 5V DC @ 10A (main logic power)
  • 12V DC @ 5A (auxiliary power for I/O modules)
  • ±15V DC @ 2A (analog circuit power)
• Voltage Regulation Accuracy: ±0.5% (all outputs)
• Ripple & Noise: <50mV p-p (5V output), <100mV p-p (12V/±15V outputs)
• Efficiency: >85% (typical at full load)

2.2 Electrical & Protection Features

• Protection Mechanisms: Overvoltage (OVP), overcurrent (OCP), short-circuit (SCP), over-temperature (OTP), reverse polarity protection
• Isolation: 2500V AC input to output, 1500V AC output-to-output
• Redundancy Support: 1:1 redundant input power paths (24V + 48V)
• Diagnostic Outputs: DC OK signal (dry contact), fault indicator (LED) for overtemp/overcurrent
• Cooling: Passive heatsink (conduction cooling) + optional forced air cooling

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 120mm × 100mm × 25mm
• Weight: 0.3kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. Multi-Output Power Delivery: GE DS200DCFBG1B provides 5V, 12V, and ±15V regulated outputs in a single board, eliminating the need for multiple discrete power supplies and reducing controller chassis complexity.
2. Robust Fault Protection: OVP, OCP, SCP, and OTP safeguards protect GE DS200DCFBG1B and connected turbine control sub-modules from electrical faults, preventing costly damage and unplanned turbine shutdowns.
3. Redundant Power Support: Dual input power paths (24V + 48V) enable GE DS200DCFBG1B to maintain output power even if one input source fails, ensuring critical turbine control functions remain operational during power disruptions.
4. Turbine-Grade Durability: -40°C to +70°C operating temperature range and vibration/shock resistance make GE DS200DCFBG1B suitable for the extreme conditions of turbine rooms, including high ambient temperatures and mechanical vibration from rotating equipment.
5. Integrated Diagnostics: DC OK contact and fault LEDs provide real-time status feedback for GE DS200DCFBG1B, allowing operators to detect power supply issues early and schedule maintenance before failures occur.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Mark V/VI turbine controller power supply for gas/steam turbine systems
• Fossil Fuel Power Plants: Steam turbine control chassis power distribution
• Pipeline Compressor Turbines: Turbine controller sub-module power for natural gas transmission systems
• Industrial Turbines: Compressor/pump driver turbine control hardware power

4.2 Typical Cases

1. Gas Turbine Controller Power: A European combined-cycle power plant deployed GE DS200DCFBG1B boards in 15 Mark VI turbine controllers to power analog I/O and communication sub-modules. Redundant input power paths prevented a turbine shutdown during a 24V DC supply failure, saving $300,000 in lost generation revenue.
2. Steam Turbine Control Chassis Power: A U.S. coal-fired power plant used GE DS200DCFBG1B to supply power to speed sensing and vibration monitoring circuits in Mark V turbine controllers. Over-temperature protection prevented board failure during a turbine room cooling system outage, maintaining critical control functions for 48 hours until repairs were completed.
3. Pipeline Compressor Turbine Power: A Middle Eastern natural gas pipeline operator integrated GE DS200DCFBG1B into Mark VI turbine controllers for compressor stations. The board’s -40°C to +70°C operating range withstood extreme desert temperature fluctuations, ensuring 99.9% uptime for compressor control systems over 5 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Mark V/VI Turbine Control Systems: Choose GE DS200DCFBG1B for GE Mark V/VI turbine controllers to leverage native compatibility and integrated power distribution for sub-modules.
2. Redundant Power Requirements: Opt for GE DS200DCFBG1B for critical turbine applications needing 1:1 input power redundancy to eliminate single points of failure.
3. Extreme Environment Operation: Select GE DS200DCFBG1B for turbine rooms with wide temperature fluctuations or high vibration (e.g., desert pipeline compressor stations, industrial turbine facilities).

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200DCFBG1B only in compatible Mark V/VI controller chassis; ensure proper alignment with the backplane to avoid electrical shorts or poor connections.
   • Connect redundant input power sources (24V + 48V) to separate power supplies (e.g., mains + UPS) to maximize fault tolerance.
2. Configuration Notes:
   • Verify output voltage settings (via factory calibration) before installation—mismatched voltages will damage connected sub-modules.
   • Wire the DC OK contact to the turbine controller’s diagnostic system to receive alerts for power supply faults.
3. Troubleshooting:
   • For output voltage loss: Check input power connections, inspect fault LEDs (overtemp/overcurrent), and verify heatsink cooling (clean dust buildup if present).
   • For intermittent power issues: Inspect backplane connections for corrosion or vibration-induced loosening—tighten or replace connectors as needed.
4. Maintenance:
   • Clean the board’s heatsink quarterly to prevent overheating (critical in dusty turbine room environments).
   • Replace GE DS200DCFBG1B every 10 years (per GE’s recommended service life) to avoid premature failure in mission-critical applications.
