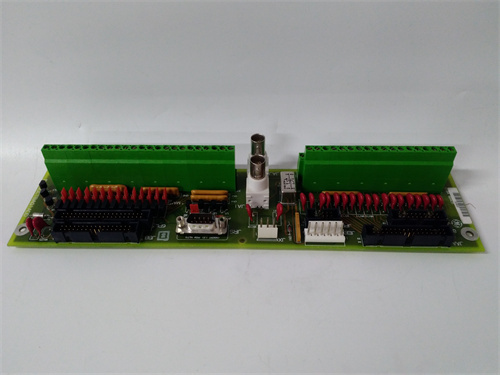

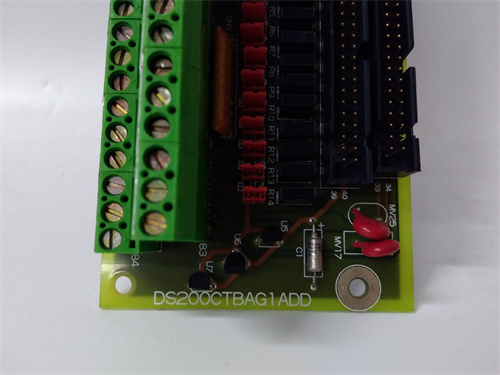

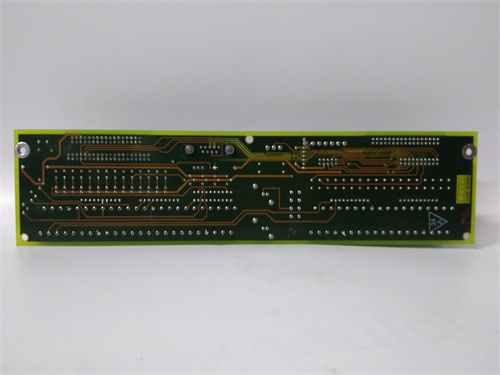

GE DS200CTBAG1ACB

Description

Product Description

Product Parameters

• Brand/Model: GE DS200CTBAG1ACB
• Core Terminal Board Parameters
  • Terminal Count: 32 screw terminals (16 analog, 16 digital)
  • Terminal Type: Phoenix-style screw terminals (2.5mm² wire capacity)
  • Signal Compatibility: 4-20mA, 0-10V (analog); 24V DC (digital); RTD thermocouple inputs
  • Fused Terminals: 8 fused inputs (1A fast-blow fuses for critical analog signals)
  • Labeling: Color-coded (red = digital, blue = analog) + engraved signal identifiers
• System & Mechanical Parameters
  • Compatible Systems: GE Mark V/VI Turbine Control Systems, DS200 series I/O modules (ADMA, AHAI, ACNT)
  • Mounting: Rack-mount (compatible with GE Mark V/VI chassis) + DIN rail adapter
  • Connection Interface: 50-pin ribbon cable to DS200 I/O modules
  • Wire Gauge Support: 22-12 AWG (solid/stranded copper)
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +85°C
  • Storage Temperature: -55°C ~ +125°C
  • Vibration Resistance: 10g (5-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount)
  • Dimensions: 150mm (W) × 100mm (H) × 50mm (D)
  • Material: Flame-retardant ABS housing + stainless steel terminal blocks

Advantages & Features

1. Organized Signal Wiring: GE DS200CTBAG1ACB’s 32 color-coded, labeled terminals eliminate wiring errors and simplify troubleshooting, reducing installation time by up to 30% compared to unlabeled terminal blocks.
2. Critical Signal Protection: 8 fused inputs safeguard high-value analog signals (e.g., turbine pressure transducers) from short circuits and overcurrent damage, minimizing downtime from wiring faults.
3. Turbine-Environment Durability: The module’s wide operating temperature range (-40°C ~ +85°C) and vibration resistance (10g) ensure reliable performance in turbine enclosures and harsh industrial settings.
4. Seamless I/O Module Integration: The 50-pin ribbon cable interface provides a secure connection to GE DS200 I/O modules, eliminating loose connections and signal interference in high-vibration environments.

Application Fields & Cases

1. Gas Turbine I/O Connectivity: A combined-cycle power plant deployed GE DS200CTBAG1ACB terminal boards to connect DS200ADMAH1ABB analog I/O modules with turbine pressure/temperature sensors. Color-coded terminals reduced wiring errors during installation, while fused inputs prevented damage to critical RTD sensors from short circuits.
2. Oil & Gas Compressor Turbine Control: An offshore pipeline operator used GE DS200CTBAG1ACB to wire digital I/O signals (valve position switches, emergency stops) to DS200AHAI1AAG modules in gas turbine-driven compressors. The module’s vibration resistance withstood marine conditions, ensuring secure connections in rough seas.
3. Industrial Steam Turbine Wiring: A pulp mill integrated GE DS200CTBAG1ACB into its Mark V turbine control system to organize thermocouple and actuator signals. Engraved terminal labels enabled quick identification of faulty sensors during maintenance, reducing turbine downtime by 20%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE DS200CTBAG1ACB is ideal for GE Mark V/VI turbine control system users needing organized, protected I/O wiring (e.g., power generation, oil & gas). For general industrial applications, choose Phoenix Contact UK35 or Allen-Bradley 1492-J32; for non-GE turbine systems, select protocol-matched terminal blocks.
2. Precautions:
   • Use only 22-12 AWG solid/stranded copper wire to ensure secure terminal connections—smaller gauge wires may loosen in high-vibration environments.
   • Replace blown fuses with identical 1A fast-blow components (GE P/N: FUSE-1A-FAST) to maintain signal protection and avoid overcurrent damage.
   • Tighten terminal screws to 0.8 Nm torque (per GE specifications) to prevent loose connections and signal interference.
   • Route wiring away from high-voltage turbine components (e.g., generator windings) to minimize electromagnetic interference (EMI) in analog signals.
   • Clean terminals annually (with isopropyl alcohol) to remove dust and corrosion, ensuring reliable conductivity in harsh industrial environments.
