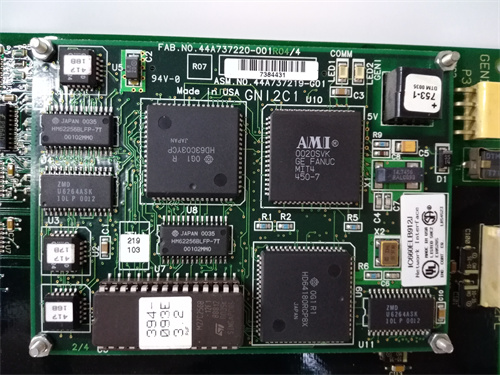

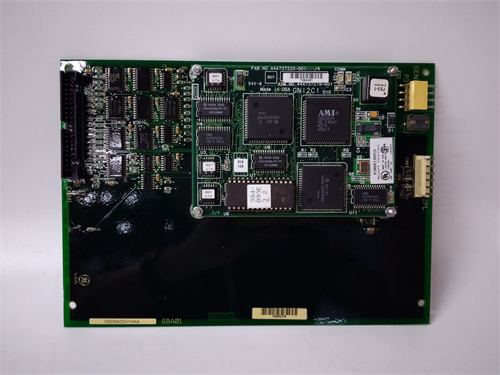

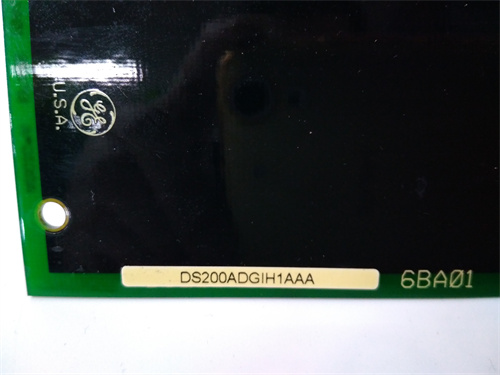

GE DS200ADGIH1AAA

Description

Product Description

GE DS200ADGIH1AAA is a critical analog input and signal conditioning module from the GE Speedtronic Mark V turbine control system. This module, designated as an ADGI (Analog to Digital Gate, Input), serves as the primary interface for converting critical analog process signals—such as temperatures, pressures, and levels—into digital values for the Mark V’s processor. The core function of the GE DS200ADGIH1AAA is to provide high-accuracy, isolated measurement of 4-20 mA or 0-10 VDC signals from field transmitters, perform necessary signal scaling and filtering, and transmit this data to the control system for use in regulation, sequencing, and protection algorithms. The reliability and precision of the DS200ADGIH1AAA directly impact the control system’s ability to monitor and manage the turbine process accurately. For maintenance of legacy Mark V systems, the GE DS200ADGIH1AAA is a vital spare part for ensuring continued and reliable data acquisition.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric)
• Series: Speedtronic Mark V Turbine Control System
• Functional Designation: Analog Input Module (ADGI)
• Input Type: Accepts analog current (e.g., 4-20 mA) and/or voltage (e.g., 0-10 VDC) signals.
• Input Channels: Contains multiple isolated input channels (a common configuration is 8 channels).
• Resolution: Features analog-to-digital conversion with sufficient resolution (e.g., 12-bit or higher) for precise process measurement.
• Isolation: Channels are typically isolated from each other and from the system logic to prevent noise interference and ground loops.
• Communication: Interfaces with the Mark V’s <P> (Primary) and <C> (Control) processors via the system’s backplane or dedicated bus.
• Diagnostics: Includes status LEDs for module health and may provide basic channel fault indication.
• Power Supply: Receives power from the Mark V rack’s power distribution system.

Advantages and Key Features

• High Accuracy in Harsh Environments: Designed to provide stable and accurate measurements in the electrically noisy and thermally challenging environment of a turbine control cabinet.
• Channel-to-Channel Isolation: Prevents signal crossover and fault propagation, allowing the module to safely handle signals from different sources and voltage potentials.
• Integrated Signal Conditioning: Includes necessary filtering and protection against voltage transients, ensuring the raw field signal is properly conditioned for the control processor.
• Deterministic System Integration: As a dedicated component of the Mark V system, it provides predictable sampling and update times, which are integrated into the controller’s deterministic scan.
• Robust Legacy Design: Built for long-term reliability, supporting the operational lifespan of Mark V-controlled turbines, many of which remain in service today.

Application Cases in Industry

• Gas Turbine Process Monitoring: Used to measure critical parameters such as exhaust temperature (via transmitter), fuel gas pressure, compressor discharge pressure, and lube oil pressure.
• Steam Turbine Control: Interfaces with transmitters for steam pressure, condenser vacuum, and bearing drain temperatures.
• Auxiliary System Monitoring: Measures tank levels, differential pressures across filters, and cooling water flow rates in the balance-of-plant systems.
• Compressor Station Control: Monitors suction and discharge pressures and temperatures for turbine-driven compressors in pipeline applications.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Absolute Part Number Match: For Mark V systems, the entire part number including the suffix (“H1AAA”) is critical. Different suffixes denote different input types (voltage/current), channel counts, or calibration. Using an incorrect version will result in malfunction or inaccurate readings.
2. Verify Signal Type Compatibility: Confirm that the GE DS200ADGIH1AAA is configured for the specific signal type (4-20mA, 0-10V) required by your field transmitters. This is often fixed per module variant.
3. Calibration May Be Required: Legacy analog modules like this may require manual calibration using precision instruments to ensure measurement accuracy across all channels after installation.
4. Check Associated Hardware: A failure of an analog input module can sometimes be caused by a fault in the field transmitter or wiring. Check for loop power issues, short circuits, or open wires before replacing the module.
5. Static Sensitivity (ESD): Handle this module as a sensitive electronic component. Use proper ESD precautions—a grounded wrist strap and anti-static bag.
6. Sourcing from Specialized Vendors: Given its role in a legacy but critical system, source the DS200ADGIH1AAA from vendors who specialize in Speedtronic Mark V parts and can provide testing verification.
