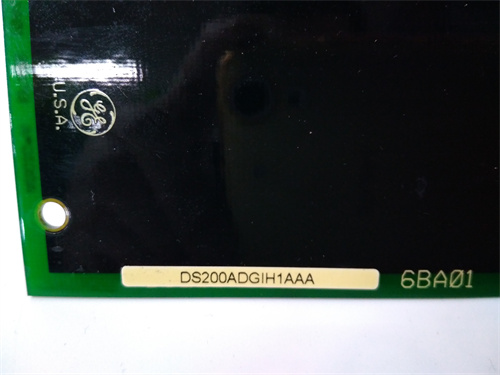

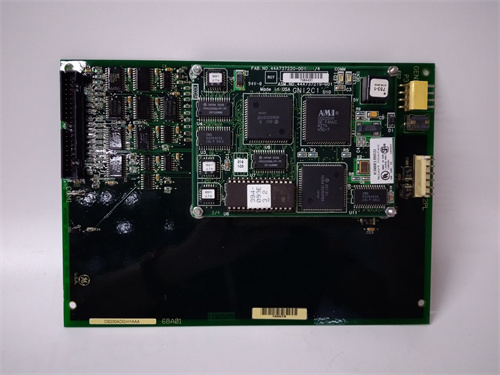

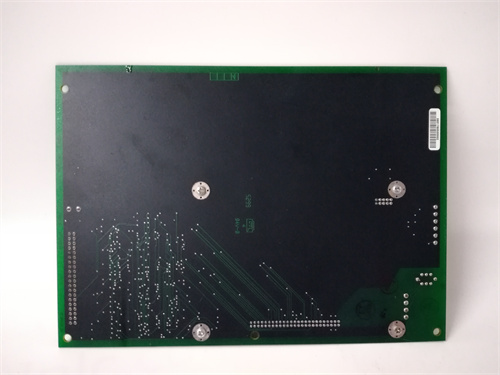

GE DS200ADGIH1AAA

Description

1. Product Overview

2. Product Parameters

2.1 Core Analog I/O Specifications

Analog Inputs (8 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC, thermocouples (J/K/T/E), RTDs (Pt100)
• Resolution: 16-bit (current/voltage), 18-bit (thermocouple/RTD)
• Accuracy: ±0.05% of full scale (current/voltage), ±0.1°C (thermocouple), ±0.05°C (RTD)
• Input Impedance: 250Ω (4-20mA), >10MΩ (voltage), 100Ω (RTD)
• Sampling Rate: 50 samples per second (per channel, simultaneous)

Analog Outputs (4 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC (configurable per channel)
• Resolution: 16-bit
• Accuracy: ±0.1% of full scale
• Output Load Capacity: 500Ω (4-20mA), 10kΩ (0-10V)
• Update Rate: 100ms (per channel)

2.2 Electrical & System Parameters

• Power Supply: 5V DC (from main turbine controller module), isolated
• Power Consumption: 1.5W (typical)
• Communication Interface: Serial Peripheral Interface (SPI) to main controller
• Isolation: 2500V AC channel-to-channel, 3000V AC channel-to-ground
• Calibration: Factory-calibrated (field-adjustable via GE Diagnostic Tool)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Daughter board (fits Mark V/VI controller chassis), 100mm × 80mm × 20mm
• Weight: 0.15kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. Precision Signal Processing: 18-bit resolution for temperature measurements and ±0.05% accuracy for current/voltage signals ensure GE DS200ADGIH1AAA delivers reliable data for critical turbine control loops (e.g., fuel regulation, speed stabilization).
2. Compact Form Factor: As a daughter board, GE DS200ADGIH1AAA integrates directly with Mark V/VI controller modules, saving space in turbine control cabinets and reducing wiring complexity compared to standalone I/O modules.
3. Rugged Turbine-Grade Design: -40°C to +70°C operating temperature range and vibration resistance make GE DS200ADGIH1AAA suitable for the harsh conditions of turbine rooms, including high temperatures and mechanical vibration.
4. Seamless Controller Integration: SPI communication with Mark V/VI main controllers enables plug-and-play installation, allowing GE DS200ADGIH1AAA to synchronize with turbine control logic without additional configuration.
5. Comprehensive Signal Support: The board’s compatibility with thermocouples, RTDs, current, and voltage signals eliminates the need for multiple specialized modules, making GE DS200ADGIH1AAA a versatile solution for turbine monitoring and control.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine analog I/O for combustion control and speed regulation
• Fossil Fuel Power Plants: Steam turbine pressure/temperature monitoring and governor control
• Pipeline Compressors: Turbine speed and pressure control for natural gas transmission
• Industrial Turbines: Compressor/pump driver turbine analog signal processing

4.2 Typical Cases

1. Gas Turbine Combustion Control: A U.S. combined-cycle power plant installed GE DS200ADGIH1AAA daughter boards in 12 Mark VI turbine controllers to process thermocouple inputs from combustion chambers. 18-bit temperature resolution enabled precise fuel-to-air ratio control, reducing NOx emissions by 15% and improving turbine efficiency by 2%.
2. Steam Turbine Governor Control: A European utility used GE DS200ADGIH1AAA to monitor steam pressure and adjust governor settings via 4-20mA outputs in 8 steam turbines. ±0.1% output accuracy ensured stable speed control (±1 RPM), complying with grid frequency regulations and avoiding penalties.
3. Pipeline Compressor Turbine Control: A Middle Eastern natural gas pipeline operator integrated GE DS200ADGIH1AAA into Mark V turbine controllers to synchronize pressure sensor data with compressor speed. Rugged design withstood extreme desert temperatures (-10°C to +65°C), maintaining 99.9% uptime for 3 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Mark V/VI Turbine Systems: Choose GE DS200ADGIH1AAA for GE Mark V/VI turbine controllers to leverage native integration and plug-and-play installation.
2. High-Precision Temperature Measurement: Opt for GE DS200ADGIH1AAA if your turbine application requires 18-bit resolution for thermocouple/RTD signals (e.g., combustion chamber monitoring).
3. Space-Constrained Control Cabinets: Select GE DS200ADGIH1AAA for compact turbine control systems, as its daughter board design saves cabinet space compared to standalone I/O modules.

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200ADGIH1AAA only in compatible Mark V/VI controller chassis; ensure proper alignment with the main processor module to avoid electrical damage.
   • Use shielded twisted-pair wiring for analog inputs/outputs and ground shields at the controller end to minimize EMI interference from turbine electrical systems.
2. Configuration Notes:
   • Configure signal types (thermocouple/RTD/current/voltage) via GE Diagnostic Tool before commissioning—incorrect settings will cause measurement/control errors.
   • Recalibrate the board every 2 years (per GE recommendations) using a certified calibrator to maintain accuracy in harsh turbine environments.
3. Troubleshooting:
   • For erratic analog readings: Check sensor wiring continuity and verify isolation between channels—faulty wiring or ground loops are the most common issues.
   • For communication failures: Inspect the SPI connection to the main controller and ensure the board is fully seated in the chassis slot.
4. Maintenance:
   • Inspect the board’s electrical connections quarterly for corrosion (common in turbine rooms with high humidity); clean contacts with approved electrical contact cleaner.
   • Store spare GE DS200ADGIH1AAA boards in anti-static packaging to prevent electrostatic discharge (ESD) damage.
