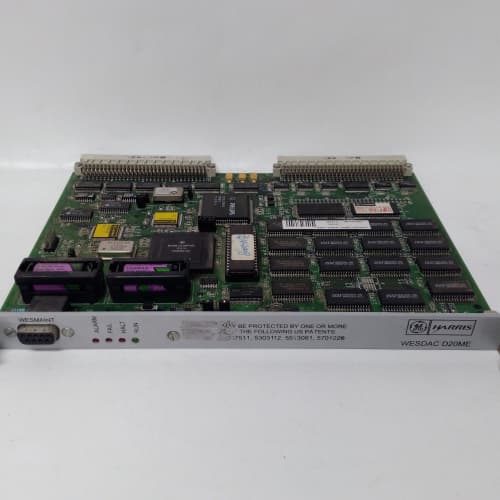

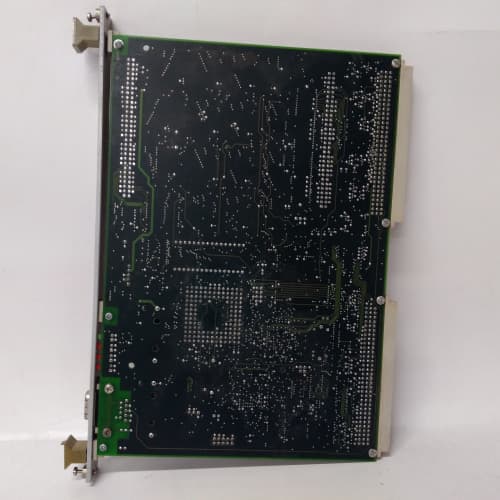

GE D20EME 526-2100

Description

1. Product Overview

2. Product Parameters

2.1 Core Processing Specifications

• Processor: Dual-core 1.2 GHz RISC processor (enhanced from base D20 EME)
• Memory: 2 GB DDR4 RAM (expandable to 4 GB), 8 GB industrial-grade flash storage
• Operating System: GE D20 Real-Time OS (RTOS) v4.0, IEC 61508 SIL 3 certified
• Cycle Time: <500µs (control logic execution), <2ms (protection functions)
• Programming: IEC 61131-3 (LD, FBD, ST, IL, SFC), GE D20 Configuration Tool v5.0
• Data Analytics: Built-in edge computing for real-time power quality analysis

2.2 Communication Interfaces

• Ethernet: 4 x 10/100/1000 Mbps ports (IEEE 802.3), support for IEC 61850-9-2 LE, DNP3.0, Modbus TCP/IP, MQTT
• Serial: 2 x RS-232/485 ports (isolated), 1 x RS-422 port
• Fiber Optic: 4 x SFP+ ports (10 Gbps, long-distance communication up to 80km)
• Synchronization: IRIG-B, PTP v2 (IEEE 1588-2008), GPS time input
• Cybersecurity: IEC 62443-4-1/4-2 compliance, secure firmware updates, encrypted communication (TLS 1.3)

2.3 Electrical & Mechanical Parameters

• Power Supply: 24/48V DC (±20%), 120/240V AC (±10%), dual redundant power inputs
• Power Consumption: <30W (typical)
• Operating Temperature: -40°C to +75°C (extended extreme range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP31 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 3g (IEC 60068-2-6, substation-grade)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: 19” rack-mount (2U height), compatible with GE D20 system cabinets
• Weight: 4.0kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 61850-3, IEC 61850-5, ATEX Zone 2, IECEx, UL 869 (relay protection)
• Safety Ratings: IEC 61508 SIL 3 (protection functions), IEC 61850 SIL 4 (communication)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity), EN 61000-4-8 (power frequency magnetic fields)
• Cybersecurity: IEC 62443-3-3, NERC CIP compliance (for North American utilities)

3. Advantages & Features

1. Ultra-High-Speed Processing: 1.2 GHz dual-core processor and <500µs cycle time enable GE D20EME 526-2100 to handle complex smart grid algorithms and real-time fault detection, critical for modern substation automation and microgrid control.
2. Enhanced Communication Capacity: 4 x 10 Gbps SFP+ ports and multi-protocol support allow GE D20EME 526-2100 to integrate with legacy and next-gen power equipment, including smart meters, inverters, and battery storage systems, while supporting high-bandwidth IEC 61850-9-2 LE sampled values.
3. Enterprise-Grade Cybersecurity: TLS 1.3 encryption, secure boot, and NERC CIP compliance protect GE D20EME 526-2100 from advanced cyber threats, ensuring the integrity of critical power system data and control commands.
4. Redundant & Fault-Tolerant Design: Dual power inputs, hot-swappable redundancy (1:1), and error-correcting memory (ECC) make GE D20EME 526-2100 resilient to hardware failures, delivering 99.999% availability for mission-critical applications.
5. Edge Analytics Capabilities: Built-in edge computing allows GE D20EME 526-2100 to process power quality data, predict equipment failures, and optimize energy usage locally—reducing latency and reliance on cloud-based systems.

4. Application Fields & Cases

4.1 Application Fields

• Smart Substations: IEC 61850-based automation, fault detection, grid synchronization, substation protection
• Microgrids & Renewable Energy: Solar/wind/battery coordination, island mode control, grid-tie synchronization
• Industrial Power Systems: Medium-voltage switchgear control, motor protection, power quality management, backup generator control
• Utility Grid Control: Distribution automation, feeder reconfiguration, demand response management, voltage regulation

4.2 Typical Cases

1. Smart Substation Automation (Europe): A German utility deployed GE D20EME 526-2100 in 20 380kV smart substations to enable IEC 61850-9-2 LE sampled value communication. The module’s 10 Gbps fiber ports reduced data latency by 70%, cutting fault clearing time to <2ms and improving grid stability for 1.2 million customers.
2. Renewable Microgrid Control (USA): A California microgrid operator used GE D20EME 526-2100 to integrate 50 MW of solar, 20 MW of wind, and 30 MWh of battery storage. Edge analytics capabilities optimized energy dispatch in real time, increasing renewable penetration by 25% and reducing reliance on fossil fuel backups.
3. Industrial Power Management (Asia): A South Korean semiconductor plant implemented GE D20EME 526-2100 for medium-voltage switchgear control and power quality monitoring. Redundant design and -40°C to +75°C operating range ensured uninterrupted power to cleanrooms, avoiding $1.8 million in production losses during extreme weather events.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart Substations & High-Voltage Grids: Choose GE D20EME 526-2100 for 110kV+ substations requiring IEC 61850-9-2 LE and ultra-low latency fault detection.
2. Renewable Microgrids: Opt for GE D20EME 526-2100 for microgrids with mixed solar/wind/battery assets, leveraging edge analytics and multi-protocol communication for seamless integration.
3. Critical Industrial Power Systems: Select GE D20EME 526-2100 for semiconductor plants, data centers, or manufacturing facilities needing 99.999% availability and extreme temperature tolerance.

6.2 Precautions

1. Installation Guidelines:
   • Mount GE D20EME 526-2100 in a GE D20 certified cabinet with forced air cooling (ambient temperature <75°C) to maintain performance in extreme conditions.
   • Use shielded Ethernet/fiber cables and ground the module per IEC 61850-3 standards to minimize EMI and ensure reliable communication.
2. Configuration Notes:
   • Configure PTP v2 time synchronization with GPS input for sub-millisecond accuracy (critical for IEC 61850 applications); validate settings via GE D20 Configuration Tool.
   • Enable encrypted communication (TLS 1.3) for all external interfaces and restrict firmware updates to authorized personnel only (per cybersecurity best practices).
3. Troubleshooting:
   • For communication faults: Check SFP+ module compatibility (use GE-certified transceivers) and verify PTP synchronization status; replace faulty fiber cables or ports as needed.
   • For processing errors: Review ECC memory logs (via the D20 tool) and check power supply stability—redundant power inputs should be connected to separate sources.
4. Maintenance:
   • Perform quarterly cybersecurity audits (update firmware, check access logs) and replace cooling fans every 3 years (per GE recommendations).
   • Back up configuration data to a secure, offline storage device monthly—critical for rapid recovery in case of module failure.
