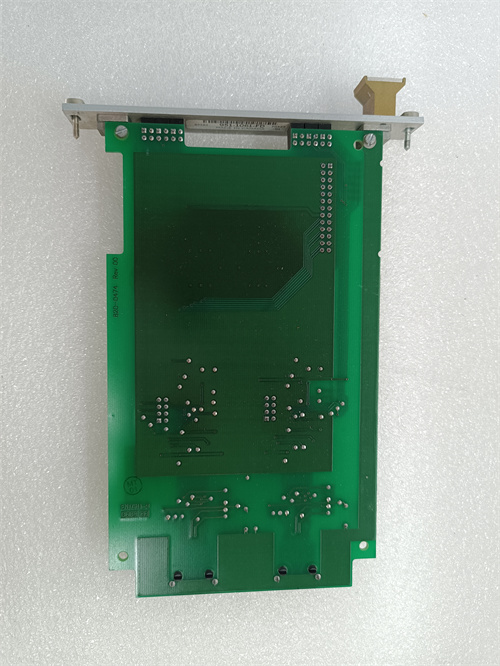

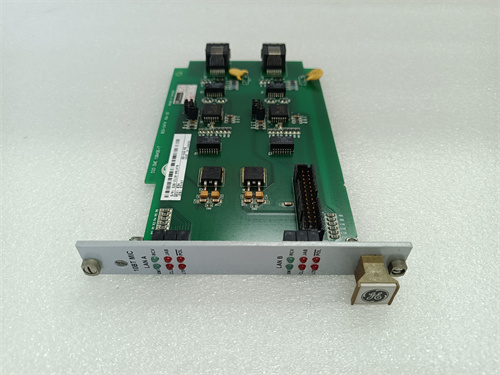

GE D20 EME210BASE-T

Description

Product Overview and Introduction

The GE D20 EME210BASE-T is a versatile and robust Ethernet interface module for the GE D20MX/D20M Distributed Control and Data Acquisition unit. This module serves as a critical communications gateway, providing a high-speed Ethernet connection to the versatile D20 platform, enabling seamless integration into modern TCP/IP-based networks for SCADA, HMI, and peer-to-peer communication. The GE D20 EME210BASE-T is engineered to extend the functionality of the D20MX unit, allowing it to participate in contemporary industrial automation architectures that rely on Ethernet for data exchange, remote configuration, and system monitoring.

Detailed Product Parameters and Specifications

This Ethernet module is characterized by the following technical specifications:

• Primary Function: 10/100BASE-T Ethernet Communications Module for the GE D20MX unit.
• Ethernet Standard: Complies with IEEE 802.3 for 10BASE-T and 100BASE-TX operation, supporting auto-negotiation and auto-MDI/MDIX for easy cabling.
• Physical Interface: Features a standard RJ-45 connector for connection to Ethernet networks using Category 5e or higher cable.
• Protocol Support: Supports standard TCP/IP and UDP/IP protocols. It is specifically designed to work with GE’s proprietary SRTP (Secure Real-Time Protocol) for deterministic data exchange between D20 units and with GE’s CIMPLICITY, iFIX, or third-party SCADA systems using Modbus TCP.
• Data Access: Provides direct access to the D20’s database of points (analog, digital, accumulator) over the network for real-time monitoring and control.
• Configuration: Configured using GE’s proprietary D20 Workbench software, where IP address, subnet mask, gateway, and communication parameters are set.
• Power Supply: Draws operating power directly from the D20MX unit’s backplane, requiring no external power source.
• Status Indicators: Includes LED indicators for power, link/activity, and network speed (10/100 Mbps).
• Mounting: Plugs directly into a dedicated module slot on the front of a GE D20MX unit.

Key Advantages and Distinctive Features

The GE D20 EME210BASE-T module provides essential modernization capabilities for the D20 platform:

• Modern Network Integration: Upgrades legacy D20 systems to operate on modern Ethernet networks, eliminating the need for older, slower serial connections and enabling integration with contemporary SCADA and plant information systems.
• High-Speed Data Exchange: Facilitates faster data throughput compared to serial links, improving update times for operator displays and the responsiveness of control algorithms that span multiple D20 units.
• Peer-to-Peer Communication: Enables direct, deterministic data sharing between multiple D20 units over Ethernet using GE’s SRTP protocol, allowing for distributed control strategies without a central master.
• Simplified Architecture: Reduces wiring complexity by allowing many devices to connect to a single Ethernet switch, as opposed to point-to-point serial wiring.
• Remote Access and Configuration: Allows engineers to connect to the D20 unit over the network for configuration changes, data monitoring, and troubleshooting using D20 Workbench software, enhancing maintenance efficiency.
• Reliable Industrial Design: Built to industrial standards for temperature, vibration, and noise immunity, ensuring reliable operation in plant environments. The addition of the GE D20 EME210BASE-T effectively future-proofs the installed base of D20 controllers.

Application Scenarios and Case Studies

This module is used to integrate D20-based systems into networked automation environments:

• Water and Wastewater Treatment: Connecting D20 units controlling pump stations, filter beds, and chemical dosing across a large treatment plant to a central SCADA system via a plant-wide Ethernet network.
• Oil and Gas Pipelines: Enabling remote telemetry and control of D20-based Remote Terminal Units (RTUs) at compressor stations or block valve sites over a WAN using TCP/IP.
• Electrical Distribution: Integrating D20 units used for feeder protection and control in substations into a utility’s IEC 61850 or DNP3 over Ethernet SCADA network.
• Manufacturing Facilities: Networking standalone D20 units controlling different processes (e.g., batching, packaging) to a central HMI for plant-wide visualization and data logging.

A typical application case involves the SCADA modernization of a regional water authority. Existing D20 units at remote reservoirs and pumping stations were equipped with the GE D20 EME210BASE-T module. This allowed them to communicate over a new fiber-optic Ethernet WAN back to a central iFIX SCADA system, replacing outdated leased telephone lines, significantly improving data reliability, update rates, and operational visibility.

Comparison with Competing Products

Compared to similar Ethernet interface modules for other PLC or RTU platforms, the GE D20 EME210BASE-T holds a specific position:

• Platform Specificity: It is the dedicated solution for the GE D20MX platform. Its main advantage is guaranteed compatibility and support within that ecosystem, similar to Rockwell’s 1756-ENBT for ControlLogix or Siemens’ CP 343-1 for S7-300.
• Protocol Focus: Its optimized support for GE’s SRTP protocol for inter-D20 communication is a key differentiator from generic Ethernet modules, providing deterministic performance within a GE system.
• Legacy Modernization Role: It competes against third-party protocol converters or complete RTU replacements. Its value is in leveraging the existing, proven D20 hardware and application logic while upgrading the communication layer.

Competitors’ modules for other platforms may offer higher port counts, integrated switches, or support for a wider array of open protocols (e.g., OPC UA, PROFINET). The choice is inherently tied to the decision to maintain and extend the life of the GE D20 installed base.

Selection Guidelines and Important Considerations

Implementing this module requires careful network and system planning:

1. Confirm D20MX Unit Compatibility: Ensure your D20 unit is a D20MX model with an available module slot that supports the EME210BASE-T. Earlier D20 models may not be compatible.
2. Network Planning: Assign a static IP address, subnet mask, and default gateway appropriate for your plant network. Segment industrial traffic appropriately using VLANs if connected to a larger enterprise network.
3. Software Requirements: You must have GE D20 Workbench software (correct version) to configure the module’s IP parameters and to utilize the network connectivity for programming and monitoring.
4. Protocol Selection: Determine the primary use case: Is it for SCADA communication (Modbus TCP, SRTP to a server), peer-to-peer D20 communication (SRTP), or both? Configure the module’s services accordingly.
5. Physical Installation and Cabling: Use industrial-grade, shielded (STP) Ethernet cable in environments with high EMI. Ensure proper grounding of the cable shield at one end. The module plugs directly into the D20MX unit; ensure the unit is powered down during installation to prevent damage.
6. Cybersecurity: Once connected to a network, the D20 system becomes a network node. Implement critical security measures: change default passwords in D20 Workbench, use firewall rules to restrict access to only necessary IP addresses, and disable unused network services. Always consult the installation and configuration manual for the GE D20 EME210BASE-T, available via the product link, for specific guidelines.
