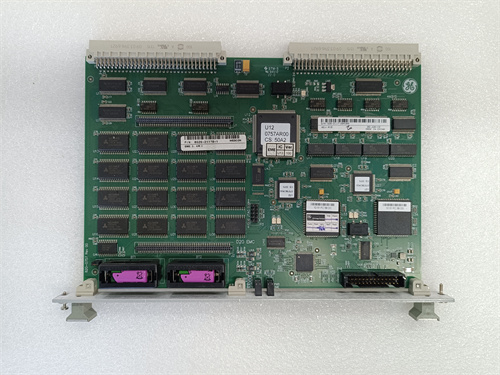

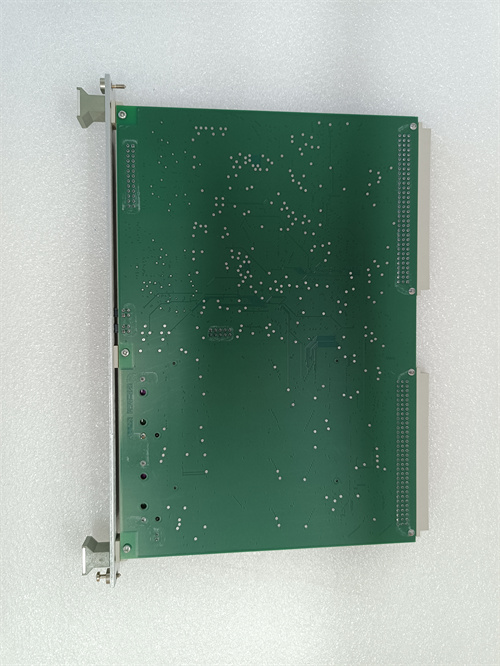

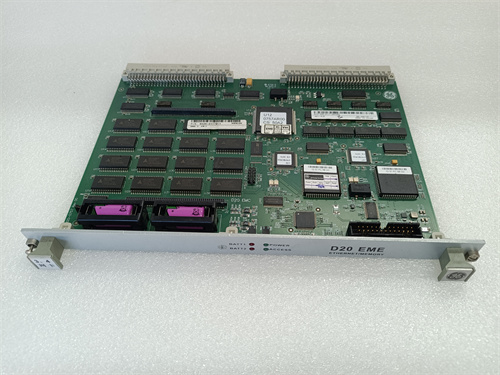

GE D20 EME

Description

1. Product Overview

2. Product Parameters

2.1 Core Processing Specifications

• Processor: 32-bit RISC processor (800 MHz), dual-core architecture
• Memory: 1 GB DDR3 RAM, 4 GB flash storage (expandable to 8 GB)
• Operating System: GE D20 Real-Time OS (RTOS), compliant with IEC 61508 SIL 3
• Cycle Time: <1ms (control logic execution), <5ms (protection functions)
• Programming: IEC 61131-3 (LD, FBD, ST, IL, SFC), GE D20 Configuration Tool

2.2 Communication Interfaces

• Ethernet: 2 x 10/100/1000 Mbps ports (IEEE 802.3), support for IEC 61850, DNP3.0, Modbus TCP/IP
• Serial: 2 x RS-232/485 ports (Modbus RTU, DNP3.0 serial)
• Fiber Optic: 2 x SFP ports (optional, for long-distance communication)
• Synchronization: IRIG-B, PTP (IEEE 1588) for time synchronization
• Cybersecurity: IEC 62443 compliance, role-based access control (RBAC), secure boot

2.3 Electrical & Mechanical Parameters

• Power Supply: 24/48V DC (±20%), 120/240V AC (±10%)
• Power Consumption: <25W (typical)
• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP31 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: 19” rack-mount (2U height), compatible with D20 system cabinets
• Weight: 3.5kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 61850-3, IEC 61850-5, ATEX Zone 2, IECEx
• Safety Ratings: IEC 61508 SIL 3 (for protection functions)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)
• Cybersecurity: IEC 62443-4-1, IEC 62443-4-2

3. Advantages & Features

1. High-Speed Real-Time Processing: Dual-core 800 MHz processor and <1ms cycle time enable GE D20 EME to execute complex control and protection logic with ultra-low latency, critical for substation fault detection and grid synchronization.
2. Multi-Protocol Communication: Support for IEC 61850, DNP3.0, and Modbus allows GE D20 EME to integrate seamlessly with legacy and modern power system equipment, reducing integration costs and complexity.
3. Redundant & Fault-Tolerant Design: GE D20 EME supports hot-swappable redundancy (1:1) and dual power supplies, ensuring uninterrupted operation even during module failures—critical for 24/7 power infrastructure.
4. Cybersecurity Hardening: IEC 62443 compliance, secure boot, and RBAC protect GE D20 EME from cyber threats, safeguarding substation and power distribution systems against unauthorized access and attacks.
5. Scalable I/O Integration: The module interfaces with GE D20 I/O modules (analog, digital, protective relaying) to support diverse power system applications, making GE D20 EME a flexible solution for substation automation and industrial power control.

4. Application Fields & Cases

4.1 Application Fields

• Utility Substations: Feeder protection, voltage regulation, fault detection, substation automation (SAS)
• Industrial Power Distribution: Switchgear control, load management, motor protection, backup generator synchronization
• Renewable Energy Plants: Solar/wind inverter control, grid synchronization, battery energy storage system (BESS) management
• Data Centers: UPS control, power distribution unit (PDU) monitoring, load balancing, emergency power management

4.2 Typical Cases

1. Utility Substation Automation: A European utility deployed GE D20 EME modules in 50 medium-voltage substations to enable IEC 61850-based automation. The modules’ real-time processing capabilities reduced fault clearing time by 30%, improving grid reliability and reducing outage duration for 200,000 customers.
2. Solar Plant Grid Synchronization: A U.S. utility-scale solar plant integrated GE D20 EME to synchronize 100+ inverters with the grid and manage voltage/frequency regulation. Multi-protocol communication support allowed seamless integration with SCADA systems, increasing plant uptime to 99.8% and optimizing energy export to the grid.
3. Industrial Power Distribution: A German manufacturing facility used GE D20 EME for switchgear control and motor protection in its main power distribution center. Redundant design prevented unplanned downtime during a module failure, avoiding $500,000 in lost production and ensuring continuous power to critical manufacturing lines.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Substation Automation: Choose GE D20 EME for utility or industrial substations requiring IEC 61850 compliance, real-time protection, and redundant operation to ensure grid reliability.
2. Renewable Energy Integration: Opt for GE D20 EME for solar/wind plants needing grid synchronization, multi-protocol communication, and scalable I/O to manage inverters and storage systems.
3. Critical Power Infrastructure: Select GE D20 EME for data centers, manufacturing facilities, or power distribution systems requiring SIL 3 safety ratings and cybersecurity hardening.

6.2 Precautions

1. Installation Guidelines:
   • Mount GE D20 EME in a ventilated D20 system cabinet with ambient temperature <70°C to prevent overheating; ensure proper grounding per IEC 61850-3 standards.
   • For redundant configurations, connect primary and secondary modules to separate power supplies and communication networks to maximize fault tolerance.
2. Configuration Notes:
   • Use GE D20 Configuration Tool for programming and ensure compliance with IEC 61131-3 standards; validate control logic with offline simulation before deployment.
   • Configure time synchronization (IRIG-B/PTP) to ensure accurate fault logging and coordination with other power system devices.
3. Troubleshooting:
   • For communication faults: Check Ethernet/serial port connections, verify protocol settings (e.g., IEC 61850 GOOSE messages), and inspect fiber optic links (if used).
   • For processing errors: Review system logs via the D20 Configuration Tool, check memory usage (avoid exceeding 80% capacity), and replace faulty modules in redundant systems.
4. Maintenance:
   • Perform firmware updates during scheduled outages (follow GE’s secure update procedure to maintain cybersecurity); back up configuration data quarterly.
   • Inspect cooling fans and power supply connections annually to ensure reliable operation in harsh substation environments.
