GE 8810-HI-TX-01 | I/O Module, In Stock, Fast Shipping

Description

Product Introduction

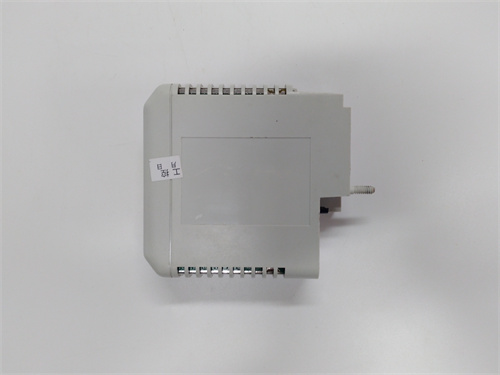

The GE 8810-HI-TX-01 is a high-density discrete input module designed for the Genius I/O and Field Control product lines. This module provides 16 input channels and mounts directly onto a terminal base, interfacing with the Genius bus for communication back to a PLC or DCS. Typical applications include discrete sensor monitoring, limit switch inputs, and panel status feedback in manufacturing, water treatment, and material handling systems.

Genius I/O remains widely deployed due to its deterministic communication and ability to run long cable runs in harsh environments. The 8810-HI-TX-01 is a drop-in replacement for existing installations where module failure or plant expansion requires additional I/O capacity. Because these units have been discontinued by the OEM, maintaining spares is critical for avoiding costly system rewiring or full controller upgrades.

Key Technical Specifications

Key Selling Points & Differentiators

• Direct Drop-In Replacement: Identical form factor and electrical characteristics to original GE units. No configuration changes required if replacing a failed module with the same part number.
• Genius Bus Compatibility: Fully compatible with existing Genius bus networks running at 153.6 kbps, eliminating the need for gateway converters or rewiring.
• High-Density Footprint: Sixteen input channels per module minimizes backplane space compared to older 8-channel alternatives.
• Authenticity Guarantee: Each unit undergoes visual inspection for counterfeit indicators, including PCB markings, GE serial number formatting, and packaging integrity.
• Tested for Functionality: We power up every 8810-HI-TX-01 on a live Genius bus test rig, verifying communication handshake, channel state transitions, and isolation integrity before shipping.

Frequently Asked Questions (FAQ)

Q: Is the GE 8810-HI-TX-01 discontinued?
Yes. GE discontinued the Genius I/O and Field Control product lines several years ago, and Emerson (which acquired GE Intelligent Platforms) no longer manufactures this module. Stock is limited to new surplus and refurbished units. If you are running a legacy system, we recommend keeping a spare on hand.

Q: Can I use this module in a Field Control station with a different bus controller?
Yes, the 8810-HI-TX-01 works in both Genius I/O racks and Field Control stations. The determining factor is the terminal base. You need the correct base—either the Genius I/O terminal strip or the Field Control terminal assembly—to match the module. The module itself is identical.

Q: What is the difference between the 8810-HI-TX-01 and the 8810-HI-TX-02?
The -02 revision added minor component updates for improved noise immunity on the input channels. In practice, the -01 and -02 are functionally interchangeable in most applications. However, if your system is running a very low scan time or has known electrical noise issues, the -02 offers slightly better filtering. We stock both revisions; confirm your current revision before ordering if you want a direct match.

Q: Will this module work with a third-party Genius bus scanner?
It will work with any Genius bus master that adheres to the protocol standard, including the GE Series 90-70, Series 90-30 with a Genius bus controller module, or third-party gateways that emulate the Genius bus. We test on a GE Series 90-70 scanner to validate communication.

Q: Do I need to configure DIP switches or jumpers on this module?
No. The 8810-HI-TX-01 has no onboard DIP switches. Addressing and configuration are handled through the bus controller software (e.g., Logicmaster or Proficy Machine Edition). The module automatically maps its 16 input channels to the assigned address range.

Q: What testing do you perform before shipping?
We run each unit through a full functional test on a live Genius bus network. This includes verifying bus communication, cycling all 16 input channels through on-off states with a calibrated signal generator, measuring leakage current, and performing a 24-hour soak test to catch intermittent failures. For new surplus units that remain factory-sealed, we break the seal only to perform testing—or we ship sealed per customer request.
