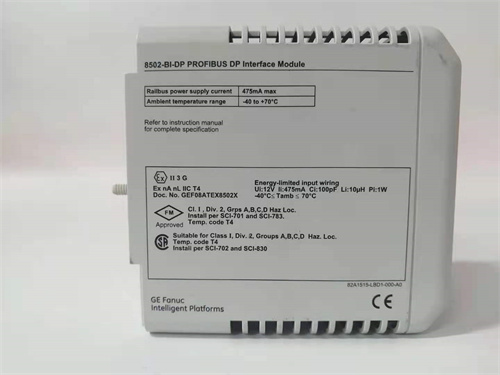

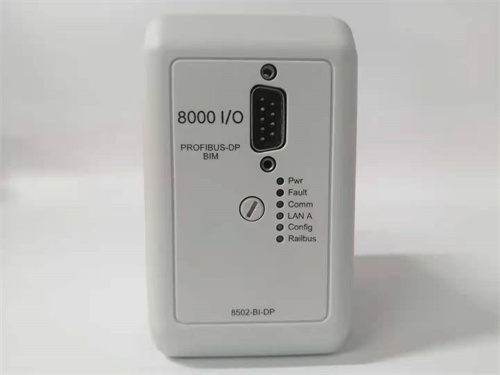

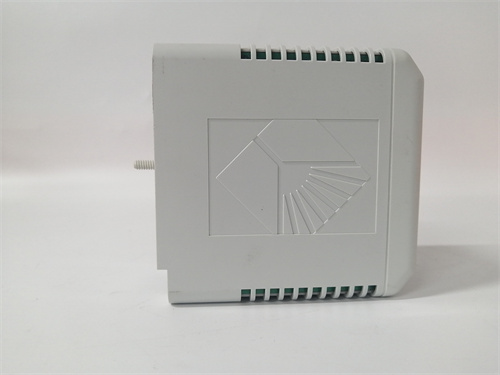

GE 8502-BI-DP

Description

1. Product Overview

2. Product Parameters

2.1 Core Communication Specifications

• Network Protocol: PROFIBUS DP V1 (conforms to IEC 61158-2)
• Communication Speed: 9.6 kbps to 12 Mbps (auto-negotiable)
• Maximum Nodes: 126 PROFIBUS DP slaves (per module)
• Data Transfer: Cyclic (process data) and acyclic (parameter data) communication
• Interface: 1 x PROFIBUS DP port (DB9 male connector), 1 x internal backplane port for 8500 Series I/O
• Diagnostic Data: Supports PROFIBUS DP diagnostics (slave status, module faults, network errors)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (±10%), isolated
• Power Consumption: 1.5W (typical)
• I/O Compatibility: GE 8500 Series digital/analog I/O modules (8501, 8503, 8504 series)
• Operating Modes: PROFIBUS DP master (for 8500 Series I/O) / DP slave (for connection to higher-level controller)
• LED Indicators: Power (green), PROFIBUS link (green/red), I/O backplane (green), fault (red)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (DIN-rail mount)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: DIN-rail mount (35mm standard), 120mm (H) × 90mm (W) × 60mm (D)
• Weight: 0.35kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• PROFIBUS Compliance: Certified by PROFIBUS International (PI)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)
• Safety Standards: IEC 61010-1 (electrical safety for industrial control equipment)

3. Advantages & Features

1. High-Speed PROFIBUS Communication: GE 8502-BI-DP supports up to 12 Mbps data transfer, enabling deterministic, real-time communication for time-critical control applications (e.g., production line automation, process regulation).
2. Wide I/O Compatibility: The module works with all GE 8500 Series I/O modules, allowing GE 8502-BI-DP to integrate digital, analog, and specialty I/O into a single PROFIBUS network and reducing system complexity.
3. Advanced Diagnostics: Built-in PROFIBUS and I/O backplane diagnostics provide real-time alerts for network faults, module failures, or communication errors, making GE 8502-BI-DP easy to troubleshoot and minimizing downtime.
4. Rugged Industrial Design: -40°C to +70°C operating temperature range and vibration/shock resistance ensure GE 8502-BI-DP operates reliably in harsh environments (e.g., factory floors, outdoor remote I/O stations, chemical plants).
5. Dual Operating Modes: GE 8502-BI-DP functions as both a PROFIBUS DP master (for 8500 Series I/O) and DP slave (for connection to central controllers), offering flexibility for diverse network architectures.

4. Application Fields & Cases

4.1 Application Fields

• Manufacturing: Automotive production line remote I/O communication, packaging machine network connectivity, robotic cell I/O integration
• Food & Beverage: Processing line remote sensor/actuator communication, filling machine control network, hygiene monitoring system connectivity
• Water/Wastewater: Remote pump station I/O communication, filtration plant distributed control, lift station network integration
• Chemical Processing: Plant-wide remote I/O networking, hazardous area sensor communication, batch process control connectivity

4.2 Typical Cases

1. Automotive Production Line I/O Networking: A German automotive plant deployed GE 8502-BI-DP modules to connect 50+ 8500 Series remote I/O stations (digital DI/DO, analog AI/AO) to central PACSystems RX3i PLCs via PROFIBUS DP. 12 Mbps communication speed ensured real-time control of robotic welding stations, reducing cycle time by 8% and increasing production throughput.
2. Water Treatment Plant Remote I/O: A municipal water treatment facility used GE 8502-BI-DP to link remote pump station I/O (level sensors, valve actuators) to a central DCS over PROFIBUS DP. Rugged design withstood extreme outdoor temperatures (-25°C to +65°C), maintaining 99.9% network uptime for 2 years.
3. Food & Beverage Processing Line Control: A U.S. beverage manufacturer integrated GE 8502-BI-DP into its filling line automation system, connecting 8500 Series analog I/O (flow meters, pressure sensors) to a DCS. Deterministic communication ensured precise dosing control, reducing product waste by 12% and improving batch consistency.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. PROFIBUS DP Remote I/O Systems: Choose GE 8502-BI-DP if you use GE 8500 Series I/O modules and need PROFIBUS DP connectivity for distributed control applications.
2. High-Speed Deterministic Communication: Opt for GE 8502-BI-DP for time-critical control (e.g., manufacturing lines, robotic cells) requiring up to 12 Mbps data transfer.
3. Harsh Environment Operation: Select GE 8502-BI-DP for outdoor or industrial environments with extreme temperatures, vibration, or shock (e.g., water treatment plants, chemical facilities).

6.2 Precautions

1. Installation Guidelines:
   • Mount GE 8502-BI-DP on a 35mm DIN rail in a protected enclosure (IP65 recommended for outdoor/hazardous areas) to prevent dust/water ingress.
   • Use shielded PROFIBUS cable (Type A) and terminate the network with a 120Ω resistor at the farthest node to minimize signal reflection and ensure reliable communication.
2. Configuration Notes:
   • Configure communication speed and node address via DIP switches (or software) to match the PROFIBUS network settings—mismatched speeds will cause communication failure.
   • Enable PROFIBUS diagnostics in the central controller to monitor GE 8502-BI-DP status and detect network faults early.
3. Troubleshooting:
   • For link loss: Check PROFIBUS cable continuity, verify termination resistor installation, and confirm node address configuration.
   • For I/O communication errors: Inspect the 8500 Series I/O backplane connection and ensure the module firmware is compatible with the I/O modules.
4. Maintenance:
   • Inspect PROFIBUS cable connections quarterly for corrosion or damage, especially in humid/hazardous environments.
   • Update module firmware periodically (via PROFIBUS) to ensure compatibility with new 8500 Series I/O modules and PROFIBUS protocol updates.
