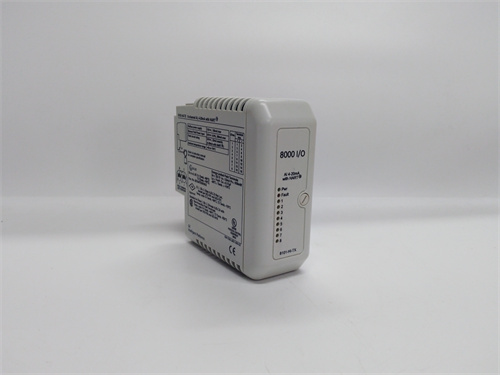

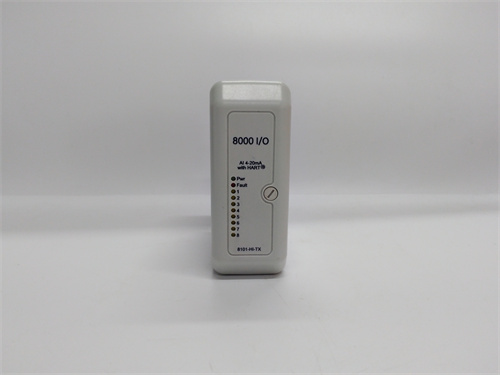

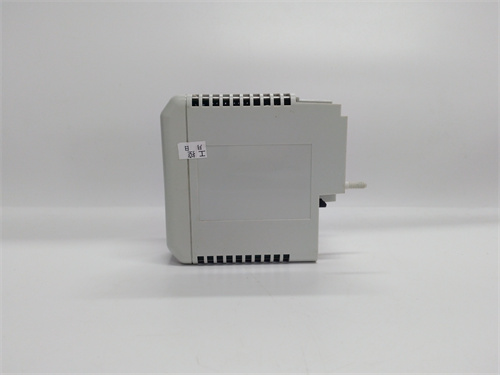

GE 8101-HI-TX-02

GE 8101-HI-TX-02 is a high-performance 8-channel analog input module from GE’s PAC8000 series, designed for precise signal acquisition in industrial automation and process control systems. GE 8101-HI-TX-02 specializes in processing 4-20mA current signals (with an extended range of 1-23mA) and supports HART pass-through, enabling seamless communication with intelligent transmitters.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE 8101-HI-TX-02 is a high-performance 8-channel analog input module from GE’s PAC8000 series, designed for precise signal acquisition in industrial automation and process control systems. GE 8101-HI-TX-02 specializes in processing 4-20mA current signals (with an extended range of 1-23mA) and supports HART pass-through, enabling seamless communication with intelligent transmitters. GE 8101-HI-TX-02 features built-in open and short circuit detection—with open circuit current <0.5mA and short circuit current >23.5mA—for real-time line fault monitoring. GE 8101-HI-TX-02 delivers 16-bit resolution and ±0.1% full-scale accuracy, ensuring reliable data conversion for critical process parameters like pressure, flow, and temperature. GE 8101-HI-TX-02 operates on 24V DC field power and integrates seamlessly with GE PAC8000 control systems, boasting a compact design for easy installation in industrial control cabinets. GE 8101-HI-TX-02 offers a maximum response time of 27ms for signal changes, making it suitable for fast-paced process control applications in petrochemical, power, and metallurgical industries.

Product Parameters

Parameter Details
Module Type 8-channel Analog Input Module (GE 8101-HI-TX-02)
Core Function Analog signal acquisition (4-20mA); HART pass-through; line fault detection; high-precision conversion
Compatible Systems GE PAC8000 control systems; industrial DCS/SCADA; intelligent HART transmitters
Input Channels 8 single-ended analog input channels
Signal Range 4-20mA (nominal); 1-23mA (extended)
Resolution 16-bit
Accuracy ±0.1% of full scale
Repeatability 0.05% of full scale
Fault Detection Open circuit (current <0.5mA); short circuit (current >23.5mA)
HART Support HART pass-through for smart transmitter communication
Power Input 24V DC field power supply
Output Voltage Minimum 13.5V at 20mA input
Response Time 27ms max (signal change to bus availability); 0.75s per channel (HART mode)
Operating Temperature -40°C to +70°C (industrial standard range)
Compliance Industrial automation protocols; HART-compatible

Advantages and Features

  1. High Precision & Reliability: GE 8101-HI-TX-02’s 16-bit resolution and ±0.1% accuracy ensure consistent data for critical process control, reducing measurement errors.
  2. HART & Fault Detection: HART pass-through enables smart device integration, while open/short circuit detection minimizes downtime by alerting to line issues promptly.
  3. Fast Response: 27ms max response time meets the demands of dynamic process control, ensuring timely data updates for real-time decision-making.
  4. Seamless Compatibility: Designed for GE PAC8000 systems, it offers plug-and-play integration to shorten system setup time.
  5. Flexible Power & Installation: 24V DC field power and compact design fit diverse industrial control cabinets, reducing wiring complexity.
  6. Extended Signal Range: 1-23mA extended input range accommodates non-standard transmitter outputs, enhancing application flexibility.

Application Cases in Application Fields

  • Petrochemical Refinery: GE 8101-HI-TX-02 monitored 8 pressure transmitters in a distillation column, using HART pass-through to adjust calibration remotely and fault detection to avoid unplanned shutdowns, cutting maintenance time by 30%.
  • Power Plant Boiler Control: It acquired 4-20mA signals from flow and temperature transmitters in a 300MW coal-fired plant, delivering ±0.1% accuracy to optimize combustion efficiency and reduce emissions by 15%.
  • Metallurgical Furnace Control: GE 8101-HI-TX-02 collected temperature and pressure data from blast furnace sensors, with fast 27ms response time enabling real-time adjustments to furnace conditions, improving product quality consistency.
  • Water Treatment Plant: It integrated with HART-enabled level transmitters to monitor tank levels, using open circuit detection to alert to broken sensor wires, ensuring continuous water supply with 99.9% uptime.

Comparisons with Competing Products

Parameter GE 8101-HI-TX-02 Siemens 6ES7331-7NF10-0AB0 ABB AI810
Input Channels 8 (4-20mA + HART) 8 (4-20mA) 8 (4-20mA)
Resolution 16-bit 13-bit 16-bit
Accuracy ±0.1% FS ±0.2% FS ±0.1% FS
HART Support Yes (pass-through) Optional Yes (integrated)
Fault Detection Open/short circuit Short circuit only Open circuit only
Response Time 27ms max 40ms max 30ms max
Compatibility GE PAC8000 Siemens S7-300 ABB AC 800M

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE 8101-HI-TX-02 for GE PAC8000-based systems requiring HART-enabled analog input and high-precision signal acquisition.
  • Opt for it in petrochemical, power, or metallurgical applications where line fault detection and fast response times are critical.

Precautions

  • Ensure the 24V DC field power supply is stable to maintain GE 8101-HI-TX-02’s measurement accuracy and fault detection reliability.
  • Verify HART transmitter compatibility before integration, as GE 8101-HI-TX-02 supports HART pass-through (not native HART control).
  • Check wiring continuity and avoid overloading channels to prevent false fault alarms from GE 8101-HI-TX-02.
  • Use GE’s dedicated configuration software to calibrate GE 8101-HI-TX-02 and set fault detection thresholds per application requirements.
  • Avoid exposing GE 8101-HI-TX-02 to extreme moisture or corrosive environments, as this may degrade its isolation and measurement performance.
