GE 531X303MCPBBG1

Description

Product Description

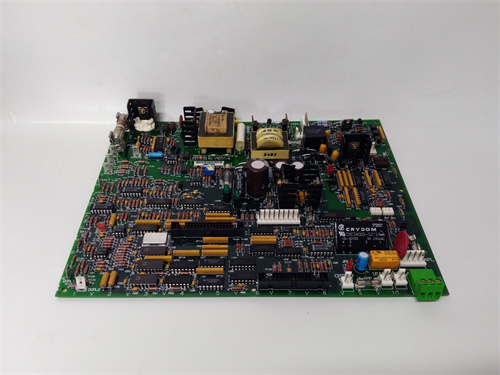

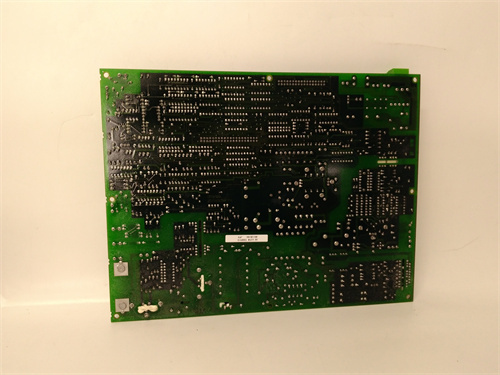

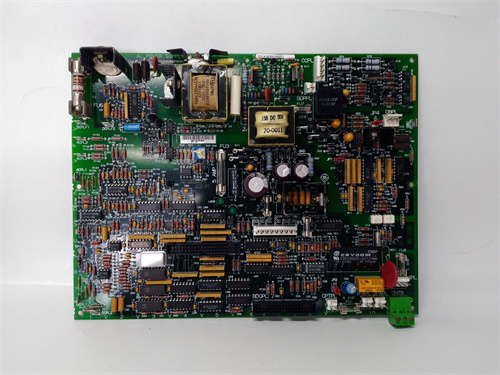

The GE 531X303MCPBBG1 is a microprocessor-based control board module designed for GE’s EX2100 and Mark V series excitation control systems utilized in synchronous generator field applications. This advanced controller board serves as the primary processing platform for generator automatic voltage regulation, reactive power control, and power system stabilizer functions in utility and industrial power generation environments. The GE 531X303MCPBBG1 operates as the central intelligence within GE’s Digital Excitation Control System, executing real-time control algorithms at millisecond intervals to maintain generator terminal voltage within ±0.5% of setpoint under varying load conditions. Engineered for continuous duty in power plant control rooms and turbine deck environments, this module incorporates extensive surge suppression and electromagnetic compatibility filtering to ensure reliable operation adjacent to high-energy switchgear. The GE 531X303MCPBBG1 communicates with operator workstations via GE’s proprietary Genius I/O bus and supports dual redundant configurations for critical baseload generation applications.

Product Parameters

• Model: GE 531X303MCPBBG1
• Module Type: Excitation Control Processor, Microprocessor-based
• Processor: 32-bit RISC, 50 MHz
• Memory: 4 MB Flash, 2 MB SRAM with battery backup
• Control Functions: Automatic voltage regulation, reactive power (VAR) control, power factor control, overexcitation limiting, underexcitation limiting, volts/hertz protection, power system stabilization
• Analog Inputs: 8 differential, ±10 V DC, 4–20 mA, 16-bit resolution
• Analog Outputs: 4 single-ended, ±10 V DC, 4–20 mA, 12-bit resolution
• Digital Inputs: 16, 24 V DC, optically isolated
• Digital Outputs: 12, Form C relay, 5 A @ 250 V AC
• Communication Ports: 2 x RS-232, 1 x RS-485, Genius I/O bus interface
• Firing Pulse Outputs: 6 isolated gate drive signals for SCR bridge control
• Power Supply: +5 V DC, ±15 V DC from EX2100 backplane
• Battery: Lithium coin cell for SRAM retention, 10-year life
• Indicators: Module status, processor activity, communication activity, alarm summary
• Operating Temperature: 0°C to 60°C
• Certifications: CE, UL, CSA, IEEE 421.2 compliant for excitation systems

Advantages and Features

The GE 531X303MCPBBG1 delivers precision voltage regulation through its advanced proportional-integral-derivative control algorithm with adaptive gain scheduling, automatically optimizing controller response based on generator operating point and system strength. Unlike universal PLC-based solutions, the GE 531X303MCPBBG1 incorporates excitation-specific functions including field forcing limiters, V/Hz protection with inverse time characteristics, and power system stabilizer implementations tuned for local mode and inter-area oscillation damping. The module’s dual-channel redundant architecture enables bumpless transfer between primary and standby controllers without generator disturbance, achieved through continuous synchronization of control states and setpoints. Built-in sequence of events recording captures 500 time-stamped events with 1 ms resolution for post-disturbance analysis. The GE 531X303MCPBBG1 supports online parameter adjustment through GE’s Toolbox software, allowing control optimization without generator shutdown. Comprehensive self-diagnostics continuously monitor processor integrity, memory validation, and I/O circuit health, with any detected fault initiating automatic transfer to redundant controller. Non-volatile configuration storage eliminates battery dependency for control parameters, though SRAM-backed trending data requires battery maintenance.

Application Cases in Application Fields

• Utility Steam Turbine Generators: Deployed on 600 MW coal-fired unit at midwestern US utility, the GE 531X303MCPBBG1 provides automatic voltage regulation with power system stabilizer functionality, successfully damping 0.7 Hz inter-area oscillations following transmission system contingencies.
• Combined Cycle Power Plants: Installed on multiple GE 7FA gas turbine generators, this module coordinates excitation control with turbine control system via Genius bus, with the GE 531X303MCPBBG1 executing reactive power sharing algorithms during parallel operation.
• Industrial Cogeneration: Utilized in paper mill extraction steam turbine generator, the GE 531X303MCPBBG1 maintains plant bus voltage during paper machine start-up events representing 40% step load changes, limiting voltage dip to less than 3%.
• Hydroelectric Facilities: Applied on 50 MVA Francis turbine generators in Pacific Northwest dam, the GE 531X303MCPBBG1 provides fast de-excitation capability for load rejection events, preventing overspeed-related overvoltage conditions.
• Wind Farm Synchronous Condenser: Implemented on converted steam turbine generator operating in synchronous condenser mode for grid support, the GE 531X303MCPBBG1 provides rapid VAR response to transmission voltage disturbances.

Comparison with Competing Products

The GE 531X303MCPBBG1 represents the optimal solution for maintaining GE’s extensive installed base of EX2100 and Mark V excitation systems, offering form-fit-function replacement capability without control panel rewiring or generator outages. While ABB’s UNITROL 6800 provides more modern features including IEC 61850 communication and IGBT bridge compatibility, the GE 531X303MCPBBG1 requires significantly lower capital investment for existing GE fleet operators. Siemens THYRIP, while robust, lacks the seamless integration with GE’s Genius I/O infrastructure that the GE 531X303MCPBBG1 provides natively. For facilities committed to GE turbine-generator packages, this module delivers the optimal balance of performance, reliability, and lifecycle support.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your existing excitation system is EX2100 or Mark V series; the GE 531X303MCPBBG1 is not compatible with earlier GE analog excitation systems such as Alterrex or Silex without significant control system modification.
• Firmware Revision Alignment: The GE 531X303MCPBBG1 must be programmed with firmware revision matching your generator parameters and protection settings; specify exact configuration requirements when ordering, as field programming requires GE Toolbox software and appropriate licensing.
• Redundancy Configuration: For critical baseload applications, install redundant GE 531X303MCPBBG1 modules with cross-firing pulse synchronization to achieve bumpless transfer; verify that both modules are programmed with identical tuning parameters and setpoints.
• Battery Maintenance: The GE 531X303MCPBBG1 contains a lithium battery maintaining SRAM-stored trending and event data; schedule battery replacement every 8 years during planned generator outages and verify proper disposal procedures per environmental regulations.
• Parameter Backup: Before any GE 531X303MCPBBG1 maintenance or replacement, upload complete control parameters via Toolbox software and maintain secure off-line backup; factory default settings are insufficient for generator-specific tuning requirements.
• Environmental Considerations: Install the GE 531X303MCPBBG1 in clean, vibration-free environment; although rated for control room conditions, proximity to SCR bridge heat sinks may require additional cabinet ventilation to maintain internal temperatures below 55°C.
• Spare Parts Strategy: Given the GE 531X303MCPBBG1‘s critical role in generator excitation and typical lead times of 8–12 weeks for factory-configured units, maintain fully programmed hot-spare module for each excitation system, stored in static-shielded packaging with quarterly battery verification.
• Obsolescence Awareness: The GE 531X303MCPBBG1 supports Mark V platforms which GE has designated as “mature” status; facilities planning 10+ year operating horizons should evaluate EX2100e upgrade paths while maintaining GE 531X303MCPBBG1 spares for interim reliability.
• Installation Precautions: When replacing existing GE 531X303MCPBBG1 modules, verify that all ribbon cables are fully seated and locking tabs engaged; partial insertion of Genius bus cables is a common cause of intermittent communication failures following maintenance activities.
• Commissioning Support: Engage qualified GE-trained personnel for GE 531X303MCPBBG1 commissioning; improper tuning of voltage regulator gains or power system stabilizer parameters can result in generator instability and unintended unit trips.
