GE 44A751101-G01

Description

Product Description

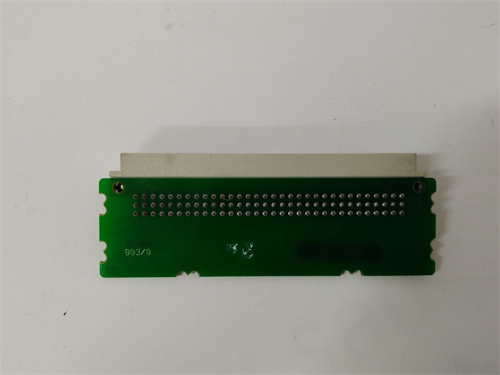

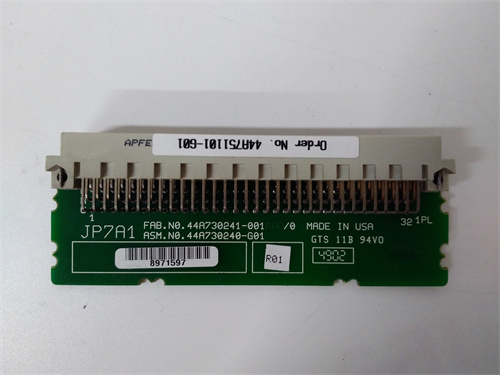

GE 44A751101-G01 is a replacement circuit board assembly, most commonly identified as a Power Supply Control Board or Regulator Board for a specific GE drive or industrial system component. This part, the 44A751101-G01, is not a standalone PLC module but a critical sub-component that provides regulation, monitoring, and switching functions for an internal power supply unit. Its primary role is to manage the conversion and regulation of incoming power within a larger device, such as a variable frequency drive (VFD), a servo drive, or a specialized control power supply chassis. The GE 44A751101-G01 board typically houses the control logic, voltage reference circuits, feedback loops, and protection circuitry necessary for generating stable secondary DC voltages. The reliability of the entire host unit depends on the flawless operation of this internal board. For maintenance technicians, sourcing the correct 44A751101-G01 assembly is essential for repairing a failed power section without replacing the entire costly drive or system unit.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric)
• Part Type: Internal Power Supply Control / Regulator Circuit Board Assembly
• Function: Voltage regulation, power sequencing, fault monitoring, and protection for an internal switched-mode power supply (SMPS).
• Key Components: Typically includes integrated circuits (PWM controllers, op-amps), transistors (MOSFETs), diodes, resistors, capacitors, and transformers or inductors.
• Input Power: Designed to accept a specific range of DC bus voltage (e.g., ~300-800VDC) from a rectified AC line or a primary power stage.
• Output Voltages: Generates multiple, isolated low-voltage DC outputs (e.g., +5V, ±12V, +15V, +24V) to power the control logic, gate drives, and sensors of the host device.
• Protections: Implements over-voltage protection (OVP), under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown.
• Form Factor: A proprietary printed circuit board (PCB) with specific mounting holes and connectors that match the host device’s chassis.

Advantages and Key Features

• Direct Replacement: Offers an exact form, fit, and functional replacement for the original failed board, dramatically simplifying repair compared to component-level troubleshooting.
• Restores Full Functionality: Replacing the GE 44A751101-G01 restores the internal power supply to factory specifications, enabling the host drive or system to operate reliably.
• Cost-Effective Repair: Replacing this single assembly is far more economical than replacing the entire drive, motor, or control system module.
• Genuine Compatibility: As a GE-manufactured part (or certified equivalent), it ensures electrical compatibility and avoids the risks associated with non-standard voltage levels or timing sequences.
• Time-Saving: Swapping a complete board assembly minimizes system downtime, as it is a relatively quick procedure compared to diagnosing and replacing individual surface-mount components.

Application Cases in Industry

• Variable Frequency Drive (VFD) Repair: This GE 44A751101-G01 board is commonly found as the control board for the switch-mode power supply within GE AC drives (e.g., AF-600, AF-650) used for controlling pump, fan, and conveyor motors.
• Servo Drive Power Supply Repair: Used within the power supply section of GE servo drives for precise motion control applications in manufacturing.
• Industrial Power Supply Unit Repair: Functions as the main controller for a standalone, modular DC power supply unit used in control cabinets to generate logic voltages.
• Specialized System Controller Repair: May be part of the power regulation system for larger GE industrial control packages.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Absolute Part Number Verification: The part number 44A751101-G01 must be an exact match. Verify this number from the barcode or silkscreen on the failed board itself, not from the drive’s model plate. The suffix -G01 is a revision code and is critical.
2. Identify the Host Device: Determine the exact make and model of the drive or system unit from which the board was removed (e.g., GE AF-650-17-XXX-4). Cross-reference the board part number with the host device’s manual or parts list to ensure compatibility.
3. Visual Inspection and Cause of Failure: Before installing a new GE 44A751101-G01, investigate the root cause of the original board’s failure. Look for damaged components on associated boards (e.g., shorted IGBTs, blown fuses, burnt connectors). Installing a new board into a system with an unresolved fault will cause immediate re-failure.
4. Electrostatic Discharge (ESD) Safety: Handle the new board as a static-sensitive device. Use an ESD wrist strap and work on an ESD-safe mat.
5. Inspect Connectors and Sockets: Before installation, carefully inspect the mating connectors, cables, and sockets in the drive chassis for damage, burnt pins, or debris. Clean or repair as necessary.
6. Source from Reputable Electronics Repair Specialists: Purchase the 44A751101-G01 from suppliers who specialize in industrial drive and power supply repair. They can often provide tested/refurbished boards with a warranty and may offer valuable technical insight into common failure modes.
