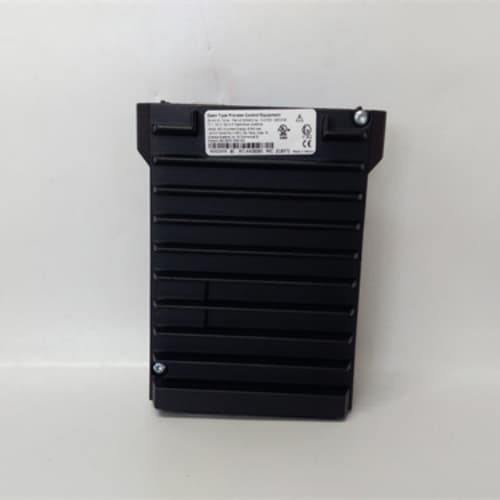

Foxboro RH924YA

Description

1. Product Overview

2. Product Parameters

2.1 Core Power Specifications

• Input Voltage: 100-240V AC (50/60Hz) or 120-300V DC (dual input capability, auto-sensing)
• Output Voltage: 24V DC (regulated, ±1% tolerance)
• Output Current: 20A per module (40A total in redundant 2-module configuration)
• Output Power: 480W per module (960W total redundant)
• Efficiency: ≥93% (typical at full load, 230V AC input)
• Redundancy Support: 1+1 hot-swappable redundant configuration (N+1 compatible for larger systems)

2.2 Electrical Protection & Diagnostics

• Protection Features: Overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection (SCP), overtemperature protection (OTP), input surge protection (6kV transient immunity)
• Diagnostic Capabilities: LED status indicators (Power OK, Fault, Redundancy Active), digital diagnostics via I/A Series DCS (input voltage, output current, temperature, fault codes), remote alarm notification
• Communication: Integrates with Foxboro I/A Series backplane for real-time health monitoring and fault reporting

2.3 Mechanical & Environmental Parameters

• Form Factor: Foxboro I/A Series standard rack-mount module (fits P0917XQ, P0916 chassis)
• Dimensions: 178mm (W) × 133mm (H) × 229mm (D)
• Weight: 2.8kg
• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508 (Industrial Control Equipment), ATEX Zone 2, IEC 61010-1, IEC 62443-4-1 (cybersecurity), RoHS
• Compatibility: Foxboro I/A Series DCS (P0973JX processor, FBM I/O modules, P0904HA communication modules), P0917XQ/P0916 chassis
• MTBF: ≥600,000 hours per module (per Telcordia SR-332 standards)

3. Advantages & Features

1. Dual AC/DC Input Flexibility: Foxboro RH924YA accepts both AC and DC input power, enabling seamless operation with grid power, backup generators, or battery systems—critical for remote industrial sites or areas with unstable power grids.
2. Hot-Swappable Redundancy: 1+1 redundant configuration with hot-swappable modules allows Foxboro RH924YA to be replaced or maintained without shutting down the DCS, eliminating downtime for 24/7 processes like oil refining and chemical production.
3. High Efficiency & Reliability: ≥93% efficiency reduces energy waste and heat generation, while robust protection features (OVP/OCP/SCP) safeguard Foxboro RH924YA and connected DCS components from electrical faults, extending system lifespan.
4. Real-Time Diagnostics & Monitoring: Integrated status reporting via the I/A Series DCS provides operators with instant visibility into power supply health, enabling predictive maintenance and reducing unplanned failures.
5. Extended Environmental Rating: -40°C to +70°C operating temperature range ensures Foxboro RH924YA performs reliably in extreme environments (e.g., arctic oil fields, desert refineries) where standard power supplies fail.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery DCS power systems, pipeline monitoring unit power, LNG plant safety system power
• Chemical Manufacturing: Reactor control system redundant power, hazardous area DCS power, batch process unit power
• Power Generation: Turbine control system power, boiler management system power, renewable energy (wind/solar) inverter control power
• Water/Wastewater: Municipal treatment plant SCADA power, pump station redundant power, industrial wastewater control system power

4.2 Typical Cases

1. Refinery Redundant Power System: A Middle Eastern oil refinery deployed Foxboro RH924YA in 1+1 redundant configurations for 15 I/A Series DCS racks controlling crude distillation units. The hot-swappable design allowed module replacement during peak production hours, eliminating unplanned downtime and increasing refinery throughput by 2%.
2. Chemical Plant SIS Power Supply: A European petrochemical plant used Foxboro RH924YA to power safety instrumented systems (SIS) for reactor emergency shutdown. Dual AC/DC input capability ensured power continuity during a grid outage (switching to battery DC), preventing a catastrophic reactor overpressure event.
3. Power Plant Turbine Control Power: A U.S. combined-cycle power plant integrated Foxboro RH924YA into its turbine control system, supplying power to P0973JX processors and FBM232 HART modules. Real-time diagnostics alerted operators to an impending overtemperature fault, enabling proactive module replacement and avoiding a turbine shutdown that would have cost $100,000/hour in lost generation.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Redundancy-Critical Applications: Choose Foxboro RH924YA for systems requiring 24/7 uptime (e.g., refineries, chemical plants)—its 1+1 hot-swappable redundancy eliminates single points of failure in power supply.
2. Mixed Power Supply Environments: Opt for Foxboro RH924YA if the site uses both AC grid power and DC backup (batteries/generators)—dual input capability ensures seamless power switching.
3. Extreme/Harsh Environments: Select Foxboro RH924YA for installations in extreme temperatures or hazardous areas—its extended environmental rating and ATEX certification ensure reliable operation.

6.2 Precautions

1. Installation Guidelines:
   • Install Foxboro RH924YA in Foxboro I/A Series chassis only (P0917XQ/P0916); ensure proper chassis grounding to prevent electrical hazards and noise interference.
   • In redundant configurations, connect each module to separate power sources (e.g., grid AC and UPS) to maximize resilience—avoid shared power feeds for redundant units.
2. Configuration Notes:
   • Enable diagnostic alerts via the I/A Series DCS to receive real-time notifications of faults (overvoltage, overtemperature); configure alarm thresholds based on site requirements.
   • Verify input voltage compatibility before powering on—mismatched input (e.g., 480V AC to a 240V AC-rated module) will permanently damage Foxboro RH924YA.
3. Troubleshooting:
   • For “Fault” LED activation: Check input voltage (ensure it is within 100-240V AC/120-300V DC range), inspect output connections for short circuits, and verify chassis cooling (overtemperature is a common fault trigger).
   • For redundancy failure: Confirm both modules are powered and detected by the DCS; check the redundancy communication cable between modules and replace if damaged.
4. Maintenance:
   • Inspect module cooling vents quarterly for dust buildup (clean with compressed air) to prevent overheating—critical in high-dust environments like refineries.
   • Test redundant switchover functionality annually (simulate a primary module failure) to ensure seamless power transfer and validate alarm notifications.
   • Stock spare Foxboro RH924YA modules for critical applications—lead times for redundant power supplies may exceed 10 weeks for ATEX-certified units.
