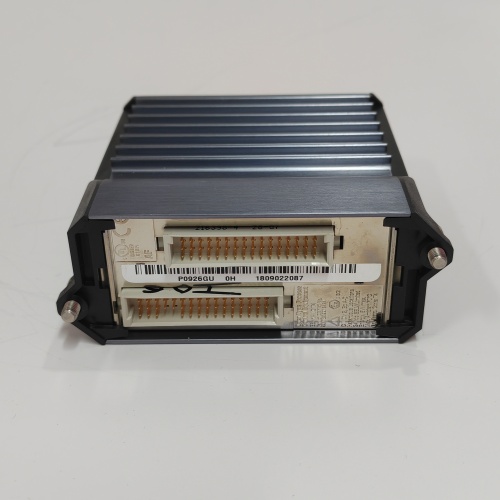

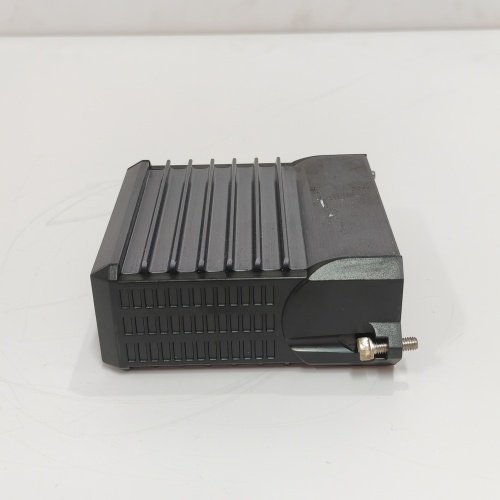

FOXBORO P0926GG

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO P0926GG
• Core Communication Parameters
  • Communication Protocol: Foxboro I/A Series I/O Bus, Ethernet (10/100 Mbps)
  • Data Transfer Rate: Up to 100 Mbps (Ethernet), 10 Mbps (I/O Bus)
  • Redundancy: Dual Ethernet ports (hot standby), redundant I/O Bus connections
  • Maximum I/O Modules Supported: 32 field I/O modules per processor
  • Latency: ≤ 1ms (real-time data transmission)
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400 controllers)
  • Diagnostic Functions: Ethernet link status, I/O Bus error logging, module connectivity alerts, LED status indicators (power, communication, fault)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
  • Security Features: IP filtering, access control lists (ACL) for Ethernet communication
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 5V DC (from I/A Series chassis) + 24V DC (redundant input), power consumption ≤ 15W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. Redundant High-Speed Communication: FOXBORO P0926GG offers dual redundant Ethernet and I/O Bus connections with automatic failover (≤ 50ms), ensuring uninterrupted data transmission in mission-critical applications like refinery reactor control and power plant turbine monitoring.
2. Advanced I/O Network Diagnostics: Real-time monitoring of Ethernet link health, I/O Bus integrity, and module connectivity enables proactive identification of communication issues, reducing mean time to repair (MTTR) and minimizing process disruptions.
3. Hot-Swappable & Plug-and-Play Design: The module supports hot-swappable replacement without DCS shutdown, while plug-and-play compatibility with Foxboro I/O modules simplifies system expansion and maintenance—critical for large-scale industrial plants with continuous operation requirements.
4. High I/O Module Capacity: Support for up to 32 field I/O modules per processor reduces the number of communication modules needed in large DCS systems, lowering hardware costs and simplifying network architecture.

Application Fields & Cases

1. Oil Refinery I/O Network Control: A major oil refinery deployed FOXBORO P0926GG modules in its Foxboro I/A Series DCS to manage communication between 64 I/O modules (analog/digital) and central controllers across two redundant networks in a crude distillation unit. The dual redundant connections prevented communication loss during a primary Ethernet link failure, ensuring continuous process monitoring and control.
2. Chemical Plant Batch Processing: A petrochemical facility used FOXBORO P0926GG to integrate field I/O modules (temperature/pressure sensors, valve actuators) with its I/A Series DCS. Advanced diagnostics identified a faulty I/O Bus connection early, allowing maintenance before batch quality was impacted, and reducing waste by 18%.
3. Power Generation I/O Connectivity: A combined-cycle power plant integrated FOXBORO P0926GG with turbine I/O modules (vibration sensors, fuel flow meters) and central DCS controllers. The module’s high-speed data transfer (≤1ms latency) ensured real-time turbine control, improving efficiency and reducing emissions by 10%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO P0926GG is ideal for Foxboro I/A Series DCS users needing high-capacity, redundant I/O communication (e.g., oil & gas refineries, chemical plants). For Emerson DeltaV DCS, choose DeltaV I/O Link modules; for Siemens PCS 7 systems, select CP 443-5 modules.
2. Precautions:
   • Configure redundant Ethernet and I/O Bus connections via Foxboro I/A Series Workbench to enable automatic failover—verify failover functionality after installation to ensure reliability.
   • Use shielded Cat6/Cat6a Ethernet cables and twisted-pair I/O Bus cables to minimize EMI interference in high-noise industrial environments (e.g., near motors or switchgear).
   • Limit the number of connected I/O modules to 32 per processor (per Foxboro specifications) to avoid communication bottlenecks or latency issues.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly update the module’s firmware to the latest version to address security vulnerabilities and improve communication performance.
