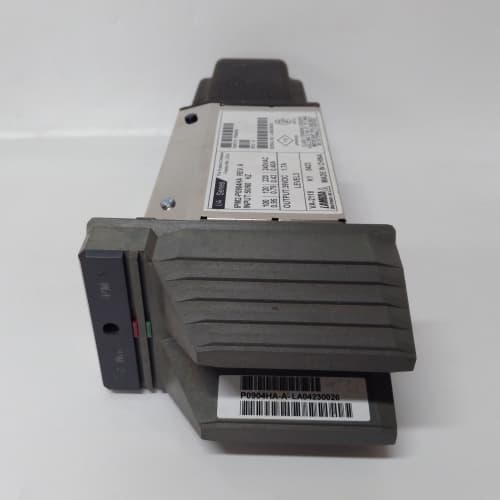

FOXBORO P0904HA

Description

1. Product Overview

2. Product Parameters

2.1 Core Communication Specifications

• Supported Protocols: Modbus TCP/IP, Ethernet/IP, OPC UA, Foxboro I/A Series proprietary bus
• Network Interfaces: Dual redundant 10/100/1000 Mbps Ethernet ports (RJ45), auto-sensing (full/half duplex)
• Data Transfer Rate: Up to 1 Gbps (Ethernet), 100 Mbps (I/A Series bus)
• Connection Capacity: Up to 64 concurrent client/server connections (Modbus/Ethernet/IP), up to 16 OPC UA sessions
• Redundancy: Dual Ethernet ports (active/standby), automatic failover (<50ms)
• Cybersecurity Features: IP filtering, port locking, HTTPS encryption for OPC UA, compliance with IEC 62443

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from Foxboro I/A Series DCS backplane), power consumption ≤10W
• Backplane Interface: Foxboro I/A Series controller bus (compatible with CP60/CP70 controllers)
• Diagnostic Features: LED status indicators (link, activity, fault, redundancy), real-time port monitoring, error logging, remote diagnostics via I/A Series Workbench
• Configuration: Software-configurable via Foxboro Control Studio or web-based interface (no local HMI required)
• Compatibility: Foxboro I/A Series DCS (firmware v8.0+), third-party PLCs (Allen-Bradley, Siemens, Mitsubishi), remote I/O racks (FOXBORO FBM200/210/230 series), enterprise networks (TCP/IP v4/v6)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Foxboro I/A Series DCS controller chassis or I/O chassis (P0916/P0917), hot-swappable (with chassis power on)
• Dimensions: 100mm (W) × 150mm (H) × 30mm (D), Foxboro I/A Series standard form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, IEC 62443-4-2 (cybersecurity), RoHS
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Multi-Protocol Support: FOXBORO P0904HA integrates Modbus TCP/IP, Ethernet/IP, and OPC UA, eliminating the need for multiple communication modules and reducing system complexity—critical for plants with mixed vendor equipment.
2. Redundant Ethernet Connectivity: Dual active/standby Ethernet ports with automatic failover ensure FOXBORO P0904HA maintains communication during network outages or port failures, maximizing uptime for 24/7 industrial processes.
3. Hot-Swappable Design: FOXBORO P0904HA can be replaced or maintained in a live DCS chassis without system shutdown, minimizing maintenance downtime for critical applications like refinery process control.
4. Built-In Cybersecurity: IP filtering, port locking, and encrypted OPC UA communication protect FOXBORO P0904HA from unauthorized access and cyber threats, complying with industrial cybersecurity standards (IEC 62443).
5. Seamless I/A Series Integration: Native compatibility with Foxboro I/A Series controllers and chassis ensures plug-and-play operation, while web-based configuration simplifies setup and reduces engineering time.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery DCS-to-PLC intercommunication, pipeline monitoring network connectivity, wellhead remote I/O data transmission
• Chemical Manufacturing: Reactor control system-to-MES data exchange, third-party analyzer integration with DCS, batch process network coordination
• Power Generation: Turbine control DCS-to-auxiliary system PLC communication, renewable energy (solar/wind) inverter data integration, plant-wide network consolidation
• Water/Wastewater: Treatment plant DCS-to-scada remote terminal unit (RTU) communication, municipal water distribution network connectivity

4.2 Typical Cases

1. Refinery DCS-PLC Interlock System: A Middle Eastern oil refinery deployed FOXBORO P0904HA modules to link I/A Series DCS with Allen-Bradley PLCs controlling safety interlocks. Dual redundant Ethernet ports ensured no communication loss during network maintenance, preventing unplanned shutdowns and improving plant safety.
2. Power Plant MES Data Integration: A U.S. combined-cycle power plant used FOXBORO P0904HA to connect I/A Series DCS to the enterprise MES via OPC UA. Encrypted communication complied with cybersecurity regulations, while multi-protocol support eliminated the need for additional gateways, cutting integration costs by 25%.
3. Chemical Plant Remote I/O Connectivity: A European petrochemical plant integrated FOXBORO P0904HA into its DCS to communicate with remote I/O racks in hazardous areas. Hot-swappable design allowed module replacement without shutting down the reactor control system, reducing maintenance downtime by 40%.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Multi-Vendor Equipment Environments: Choose FOXBORO P0904HA for plants with mixed DCS/PLC/third-party devices—its multi-protocol support eliminates the need for separate communication modules.
2. Redundancy-Critical Communication: Opt for FOXBORO P0904HA for applications requiring uninterrupted data transmission (e.g., refinery safety interlocks)—dual Ethernet ports with fast failover prevent communication outages.
3. Cybersecurity-Compliant Systems: Select FOXBORO P0904HA for networks handling sensitive data (e.g., MES integration)—IEC 62443 compliance and encryption protect against cyber threats.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO P0904HA in Foxboro I/A Series controller or I/O chassis only; ensure proper grounding of Ethernet cables to minimize EMI interference and maintain communication stability.
   • Configure dual Ethernet ports for separate networks (e.g., control network and backup network) to maximize redundancy—avoid connecting both ports to the same switch.
2. Configuration Notes:
   • Enable IP filtering and port locking via the web-based interface to restrict unauthorized access; use HTTPS encryption for OPC UA sessions to protect data in transit.
   • Verify protocol compatibility with third-party devices (e.g., Modbus register mapping, Ethernet/IP device profiles) before commissioning to avoid communication errors.
3. Troubleshooting:
   • For communication failover issues: Check that both Ethernet ports are connected to active networks and that failover settings are configured in Foxboro Control Studio; verify cable integrity and switch port status.
   • For OPC UA connection failures: Ensure HTTPS certificates are valid and installed on both the module and client devices; check firewall settings to allow OPC UA port traffic (typically 4840).
4. Maintenance:
   • Update module firmware regularly via Foxboro I/A Series Workbench to patch cybersecurity vulnerabilities and improve protocol compatibility.
   • Inspect Ethernet port connectors quarterly for corrosion or damage (especially in humid environments); clean with compressed air to remove debris.
   • Stock spare FOXBORO P0904HA modules—lead times for communication interface components may exceed 10 weeks for hazardous-location certified units.
