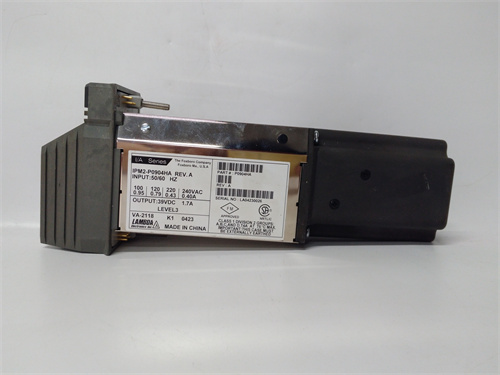

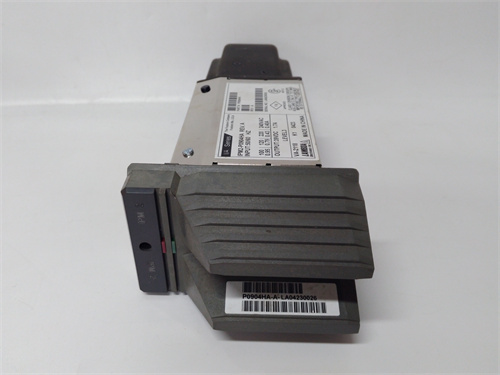

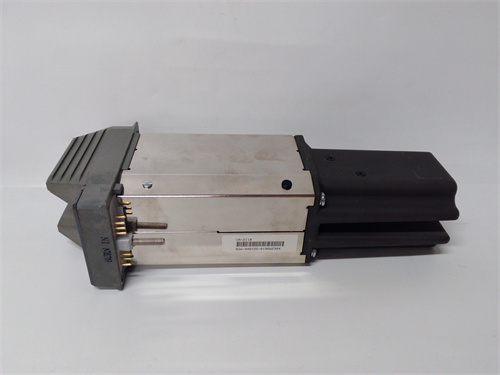

FOXBORO IPM2-P0904HA

Description

Product Overview

The FOXBORO IPM2-P0904HA is a highly reliable and configurable plug-in mounting module, specifically designed for the Foxboro I/A Series distributed control system (DCS). This module functions as a crucial interface between the field wiring and the system’s main processor, housing and providing the termination points for a range of signal conditioning and input/output (I/O) modules. The primary role of the FOXBORO IPM2-P0904HA is to provide a robust, organized, and maintainable connection scheme for analog or discrete signals, ensuring signal integrity and facilitating easy module replacement. For detailed installation manuals, wiring diagrams, and configuration guides, please refer to the official technical resource: FOXBORO IPM2-P0904HA. As a foundational hardware component, the correct application of the IPM2-P0904HA is essential for building a reliable and serviceable Foxboro I/A Series control system in process industries.

Product Parameters and Specifications

• Function: Plug-in Mounting Module (Carrier) for Foxboro I/A Series Field Termination.
• Compatibility: Designed for use with specific families of Foxboro I/A Series plug-in I/O modules (e.g., FBM series – Fieldbus Modules).
• Mounting Style: Typically a 9-slot or similar modular housing that mounts on a standard DIN rail or panel.
• Termination: Features removable screw terminal blocks or connectors for secure and organized field wiring connections. The “-HA” suffix may indicate a specific terminal type or hardware revision.
• Connector: Includes a reliable, keyed plug-in connector on the rear that mates with the I/O module, ensuring correct orientation and electrical contact.
• Diagnostics: May include LED indicators for channel or module status, depending on the specific I/O module installed.
• Materials: Constructed from high-grade, flame-retardant thermoplastic for durability and safety.
• Environmental Rating: Designed for industrial control cabinet environments.

Advantages and Key Features

The FOXBORO IPM2-P0904HA offers significant advantages in system design and maintenance. Its primary feature is the clear separation of field wiring from the active electronics. The field wiring is permanently terminated on the mounting module, while the intelligent I/O card (FBM) plugs into it. This design enables true hot-swap capability; an FBM can be safely removed or inserted without disturbing the field wiring, drastically reducing mean time to repair (MTTR). The modular and high-density design saves valuable panel space. The use of removable terminal blocks simplifies wiring, testing, and future modifications. The robust construction of the FOXBORO IPM2-P0904HA ensures long-term reliability and secure connections in environments with vibration. This architecture is a hallmark of the Foxboro I/A Series’ focus on maintainability and system availability.

Application Cases in Industry

This mounting module is a standard building block in virtually all process plants utilizing the Foxboro I/A Series DCS. In Oil & Gas Refineries, the IPM2-P0904HA is used in marshalling cabinets to terminate signals from pressure transmitters, control valves, and temperature elements before they are processed by FBMs. Within Chemical and Petrochemical Plants, it organizes wiring for level, flow, and analytical instrument signals. In Power Generation facilities (both fossil and nuclear), it provides the reliable termination points for critical boiler and turbine control loops. The FOXBORO IPM2-P0904HA is also found in Pharmaceutical and Food & Beverage processing lines where the I/A Series manages batch processes, relying on the module’s design for clean and accessible wiring during frequent maintenance and sanitization cycles.

Comparison with Competing Products

Compared to the integrated I/O design of some PLCs or newer DCS platforms where field wiring lands directly on the I/O card, the IPM2-P0904HA represents a classic, high-availability architecture. It is conceptually similar to termination units or “marshal racks” used with other legacy DCS systems from vendors like Honeywell (TDC 3000) or Emerson (formerly Westinghouse WDPF). Compared to modern modular I/O with direct connectivity (e.g., Siemens ET 200SP, Rockwell Point I/O), the Foxboro approach with the IPM2-P0904HA adds an extra layer of hardware but delivers superior maintenance isolation. The primary competitor for this specific part would be other Foxboro mounting module variants; selection depends on the specific FBM type, channel count, and termination style required.

Selection Suggestions and Precautions

• Selection Advice:
  1. FBM Compatibility: The most critical factor. The FOXBORO IPM2-P0904HA must be explicitly listed as compatible with the specific Foxboro Fieldbus Module (FBM) model you are using (e.g., FBM201, FBM242). The part number must match the FBM’s required carrier.
  2. Slot Count/Signal Type: Verify the module provides the correct number of termination points (e.g., 9 slots for 8 analog channels + 1 common) for your FBM.
  3. Termination Style: Confirm the terminal block type (screw clamp, spring clamp) and wire gauge range meet your plant’s wiring standards and field device requirements.
  4. Spare Parts: For existing systems, always match the exact module variant (including suffix like -HA) to ensure mechanical and electrical compatibility with existing cabinet layouts and wiring.
• Important Precautions:
  1. Wiring Separation: Adhere to separation standards for different signal types (e.g., AC power, DC digital, analog) within the same mounting module to avoid noise and cross-talk.
  2. Torque Specifications: When using screw terminals, always follow the specified torque values for the terminal blocks on the IPM2-P0904HA to ensure a reliable gas-tight connection without damaging the terminal.
  3. Handling: When plugging or unplugging an FBM, ensure the module is correctly aligned and use even force. Do not rock or force the connection.
  4. Labeling: Meticulously label all field wires at the terminal blocks. This is vital for troubleshooting, especially since the wiring remains in place during FBM replacement.
