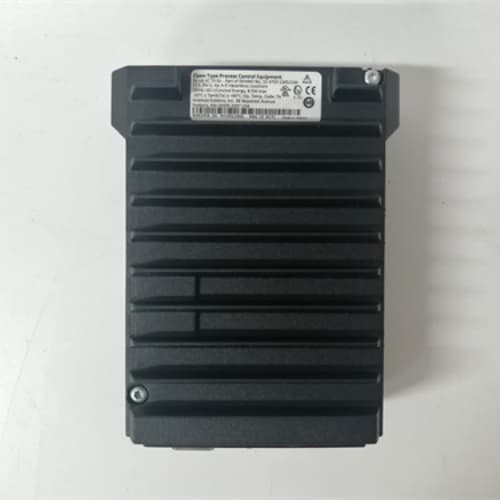

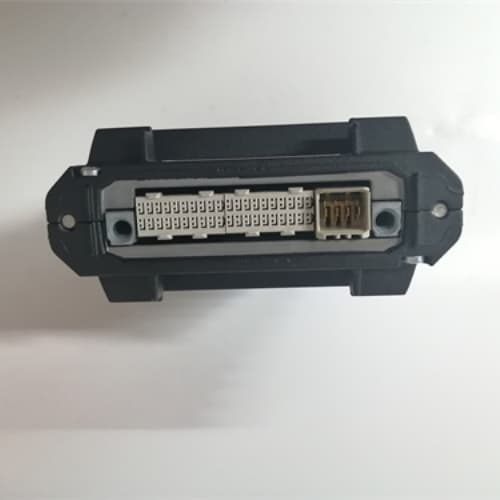

FOXBORO FCP280 RH924UQ

Description

1. Product Overview

2. Product Parameters

2.1 Core FCP280 Controller Specifications

• Processing Power: Dual-core 1.2 GHz industrial processor, 4GB DDR4 RAM, 32GB flash storage
• Control Execution:
  • Scan Rate: 0.1ms to 10s (configurable per control loop)
  • Maximum Control Loops: 2000 PID loops, 5000 discrete logic blocks
  • Redundancy: 1:1 hot standby (auto-switchover <50ms, no process disruption)
• Communication Interfaces:
  • 2 x 10/100/1000 Mbps Ethernet (redundant, for DCS network)
  • 2 x Serial ports (RS-232/RS-485, for third-party device integration)
  • 1 x USB 3.0 (local configuration/maintenance)
• I/O Connectivity: Supports up to 512 I/A Series I/O modules (via RH924UQ backplane interface)

2.2 RH924UQ Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot redundant chassis (P0916R, P0917XR)
• Backplane Interface: Redundant high-speed I/O bus (2 Gbps, fault-tolerant)
• Power Integration: Dual 24V DC redundant power supply connections (via RH924UQ power distribution)
• Mechanical Features: Locking module carrier, hot-swappable design, integrated surge/ESD protection (±4kV surge, ±2kV ESD)
• Diagnostics: Chassis health monitoring, power supply status, I/O bus fault detection

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 150mm (W) × 200mm (H) × 40mm (D)
• Weight: 2.2kg (FCP280 + RH924UQ kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Software Compliance: IEC 61131-3 (control logic programming), FDA 21 CFR Part 11 (electronic records), ISA-88 (batch control)
• MTBF: ≥2,000,000 hours (per Telcordia SR-332, redundant configuration)

3. Advantages & Features

1. High-Availability Redundancy: FOXBORO FCP280 RH924UQ supports 1:1 hot standby with <50ms switchover, ensuring zero process disruption during controller failures—critical for 24/7 operations like refineries and power plants.
2. Deterministic Control Performance: 0.1ms minimum scan rate and dual-core processor enable FOXBORO FCP280 RH924UQ to execute complex control logic (PID, cascade, ratio) with sub-millisecond latency, ideal for fast-response processes (chemical reactors, turbine control).
3. Scalable I/O Connectivity: The RH924UQ interface supports up to 512 I/O modules, allowing FOXBORO FCP280 RH924UQ to scale from small skid-mounted systems to large-scale plant-wide DCS architectures.
4. Robust Cybersecurity: Built-in firewalls, role-based access control (RBAC), and secure communication protocols (TLS 1.3) protect FOXBORO FCP280 RH924UQ from cyber threats, complying with IEC 62443 industrial security standards.
5. Simplified Maintenance: Hot-swappable design and remote diagnostics enable FOXBORO FCP280 RH924UQ to be serviced without system shutdown, reducing maintenance downtime by 90% compared to non-redundant controllers.

4. Application Fields & Cases

4.1 Application Fields

• Petrochemical: Refinery distillation unit control, chemical reactor sequencing, pipeline flow regulation
• Power Generation: Combined-cycle turbine control, boiler management, renewable energy (solar/wind) integration
• Water/Wastewater: Filtration plant process control, pump station automation, wastewater treatment sequencing
• Pharmaceutical: Batch process control (FDA 21 CFR Part 11 compliant), sterile manufacturing automation

4.2 Typical Cases

1. Refinery Distillation Control: A Gulf Coast oil refinery deployed 10 FOXBORO FCP280 RH924UQ redundant controller assemblies to manage 1500 PID loops across 5 distillation units. 0.1ms scan rate ensured precise temperature/pressure control, reducing product variability by 3% and increasing yield by 2%.
2. Pharmaceutical Batch Process: A European biotech plant used FOXBORO FCP280 RH924UQ for FDA 21 CFR Part 11 compliant batch control of monoclonal antibody production. Redundant design and audit trail capabilities ensured 100% compliance with regulatory requirements, avoiding $500,000 in potential fines.
3. Water Treatment Plant Automation: A municipal water treatment facility integrated FOXBORO FCP280 RH924UQ into its I/A Series DCS to control 200 pumps and valves across 8 filtration stages. <50ms redundancy switchover prevented a system outage during a controller failure, ensuring continuous water supply to 200,000 residents.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Availability Process Control: Choose FOXBORO FCP280 RH924UQ for 24/7 critical operations (refineries, water treatment) requiring zero downtime—1:1 hot standby ensures uninterrupted control.
2. Fast-Response Processes: Opt for FOXBORO FCP280 RH924UQ for chemical reactors, turbines, or batch processes needing 0.1ms scan rates and deterministic control execution.
3. Regulatory-Compliant Applications: Select FOXBORO FCP280 RH924UQ for pharmaceutical, food, or beverage production—FDA 21 CFR Part 11 and ISA-88 compliance simplifies regulatory audits.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FCP280 RH924UQ only in Foxboro I/A Series redundant chassis (P0916R, P0917XR); ensure dual redundant power supplies are connected to maintain fault tolerance.
   • Use shielded Ethernet cables for controller network connections and ground the chassis per IEC 61010-1 standards to minimize EMI interference.
2. Configuration Notes:
   • Configure redundancy settings (auto-switchover, heartbeat interval) via Foxboro Control Studio—verify switchover functionality during commissioning to ensure <50ms failover.
   • Limit control loop scan rates to match process requirements (e.g., 0.1ms for fast loops, 1s for slow loops) to avoid overloading the controller processor.
3. Troubleshooting:
   • For redundancy faults: Check heartbeat communication between primary/standby controllers and verify power supply status via RH924UQ diagnostics.
   • For control loop instability: Review scan rate settings and PID tuning parameters—use the controller’s built-in tuning wizard to optimize loop performance.
4. Maintenance:
   • Replace standby controllers every 5 years (per manufacturer recommendations) to maintain redundancy reliability—stock spare FOXBORO FCP280 RH924UQ assemblies from authorized distributors.
   • Update controller firmware periodically (via secure remote access) to patch cybersecurity vulnerabilities and add new features.
