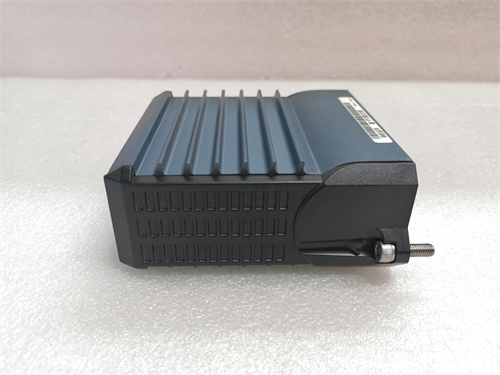

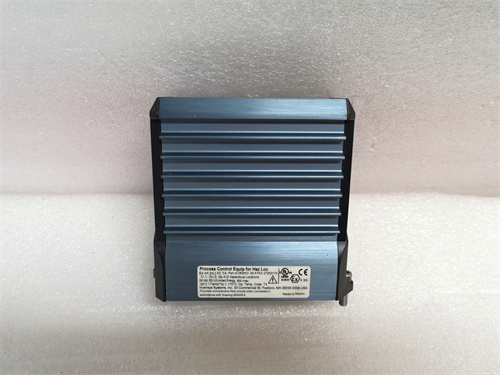

FOXBORO FBM242 RH916TA

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM242 Safety AI Module Specifications

• Number of Channels: 16 universal safety analog input channels (4 channels per isolated group)
• Supported Signal Types:
  • Current: 4-20mA DC (SIL 3 rated)
  • Temperature: Thermocouple (J/K/T/E/R/S/B/N, SIL 2 rated), RTD (Pt100, Pt1000, SIL 2 rated)
  • Voltage: 0-10V DC, ±5V DC (SIL 2 rated)
• Safety Rating: SIL 3 (per IEC 61508) for 4-20mA; SIL 2 for temperature/voltage inputs
• Resolution: 16-bit (all signal types)
• Accuracy:
  • 4-20mA: ±0.02% of reading (SIL 3 compliant)
  • Thermocouple: ±0.1°C (Type K, 0°C reference)
  • RTD: ±0.05°C (Pt100, 0°C reference)
• Isolation: 2500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground (reinforced safety isolation)
• Response Time: ≤20ms (4-20mA); ≤100ms (thermocouple/RTD)

2.2 RH916TA Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series Safety Chassis (P0916S, P0917XS)
• Interface Type: Safety-rated I/A Series backplane connector (100 Mbps data transfer) + safety signal conditioning
• Mechanical Features: Hot-swappable (SIL-compliant), locking lever with tamper-proof design, integrated surge/ESD protection (±4kV surge, ±2kV ESD)
• Power Delivery: 24V DC safety-rated power distribution from chassis to FBM242 module (via RH916TA interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range, SIL-compliant)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration, SIL 3 compliant)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 1.1kg (FBM242 + RH916TA kit)

2.4 Certifications & Compliance

• Safety Certifications: SIL 3 (IEC 61508), ATEX Zone 2, IECEx, UL/cUL Class 1 Div 2
• Industry Compliance: CE, RoHS, ISO 13849-1 (Category 4), IEC 61511 (process safety)
• Compatibility: Foxboro I/A Series SIS controllers (P0973SX, CP60S), safety sensors/transmitters, I/A Series Safety Workbench
• MTBF: ≥1,500,000 hours (per Telcordia SR-332, SIL 3 compliant)

3. Advantages & Features

1. SIL 3 Safety Compliance: FOXBORO FBM242 RH916TA meets IEC 61508 SIL 3 standards for 4-20mA inputs, ensuring reliable performance in safety-critical applications (ESD, fire & gas) and compliance with global process safety regulations.
2. High-Density Safety Inputs: 16 isolated channels maximize I/O density in safety systems, allowing FOXBORO FBM242 RH916TA to replace multiple low-density safety modules—reducing hardware costs and simplifying safety system design.
3. SIL-Compliant Hot-Swappable Design: The pre-assembled FOXBORO FBM242 RH916TA can be replaced in a live safety chassis without disrupting SIS operation, minimizing maintenance downtime while maintaining SIL compliance.
4. Reinforced Safety Isolation: 2500V AC channel-to-channel isolation and 3000V AC channel-to-ground isolation protect FOXBORO FBM242 RH916TA from electrical faults and cross-channel interference, preventing safety system failures in harsh industrial environments.
5. Diagnostic Coverage >99%: Advanced self-diagnostics (open circuit, short circuit, sensor drift) ensure FOXBORO FBM242 RH916TA detects faults before they compromise safety, meeting IEC 61508 diagnostic coverage requirements for SIL 3.

4. Application Fields & Cases

4.1 Application Fields

• Petrochemical: Refinery ESD systems, chemical reactor safety monitoring, pipeline leak detection
• Power Generation: Turbine emergency trip systems, boiler safety monitoring, nuclear plant auxiliary safety systems
• Pharmaceutical: Cleanroom toxic gas detection, sterile process pressure/temperature safety monitoring
• Oil & Gas: Offshore platform fire & gas systems, wellhead pressure safety monitoring, LNG storage safety systems

4.2 Typical Cases

1. Refinery ESD System Monitoring: A Middle Eastern petrochemical refinery deployed 20 FOXBORO FBM242 RH916TA assemblies to monitor 320 safety-critical analog inputs (pressure, temperature, level) across 5 ESD zones. SIL 3 compliance ensured compliance with API 551 standards, while high channel density reduced safety chassis requirements by 50%, cutting hardware costs by $250,000.
2. Turbine Emergency Trip System: A European power plant integrated FOXBORO FBM242 RH916TA into its I/A Series SIS to capture 16 vibration and temperature signals per module for gas turbine emergency trip logic. Diagnostic coverage >99% detected a sensor drift fault before it caused a false trip, avoiding a 12-hour unplanned shutdown and saving $400,000 in lost revenue.
3. Offshore Platform Fire & Gas System: A North Sea offshore platform used FOXBORO FBM242 RH916TA to monitor toxic gas and flame detector analog outputs (4-20mA) for its fire & gas safety system. SIL 3 compliance and reinforced isolation ensured reliable operation in hazardous Zone 1 environments, meeting DNV and ABS marine safety regulations.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. SIL 3 Safety-Critical Applications: Choose FOXBORO FBM242 RH916TA for ESD, fire & gas, or turbine protection systems requiring SIL 3 compliance for 4-20mA inputs—meeting global process safety standards (IEC 61511, API 551).
2. High-Density Safety Inputs: Opt for FOXBORO FBM242 RH916TA for safety systems needing 16+ analog input channels—reducing module count and simplifying SIL verification.
3. Hazardous Environment Safety: Select FOXBORO FBM242 RH916TA for Zone 2/Class 1 Div 2 applications (refineries, offshore platforms)—ATEX/IECEx certification ensures safe operation in explosive atmospheres.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM242 RH916TA only in Foxboro I/A Series Safety Chassis (P0916S, P0917XS); use safety-rated wiring (Ex-certified) for hazardous locations and ensure proper grounding to maintain isolation integrity.
   • Follow SIL verification procedures during installation—document module calibration, wiring, and configuration to comply with IEC 61508 audit requirements.
2. Configuration Notes:
   • Configure safety parameters (trip thresholds, diagnostic enablement) via Foxboro Safety Workbench—do not modify settings in non-safety mode to avoid SIL compliance violations.
   • Enable cold-junction compensation for thermocouple channels and lead resistance compensation for RTDs to maintain SIL 2 accuracy for temperature inputs.
3. Troubleshooting:
   • For safety fault alarms: Use Safety Workbench to review diagnostic logs (open circuit, sensor drift) and verify wiring integrity—do not bypass safety interlocks during troubleshooting.
   • For SIL compliance issues: Contact Foxboro certified service personnel to revalidate the module—unauthorized modifications will void SIL certification.
4. Maintenance:
   • Recalibrate modules annually using SIL-compliant calibrators (traceable to ISO 17025) to maintain SIL 3 accuracy for 4-20mA inputs.
   • Backup safety configuration to a secure, encrypted database—critical for rapid replacement of FOXBORO FBM242 RH916TA while maintaining SIL compliance.
   • Stock spare assemblies from Foxboro authorized distributors—non-authorized replacements will void safety certifications.
