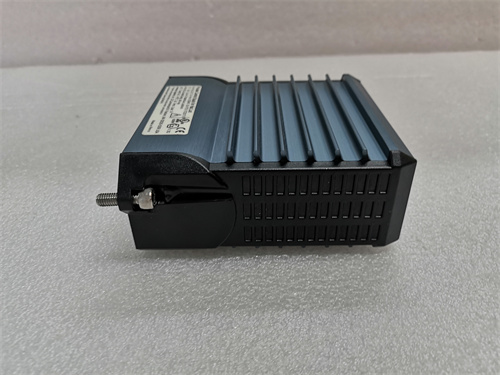

FOXBORO FBM242

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 8 isolated HART analog output channels (4-20mA DC current loop, HART 5/7 compliant)
• Output Range: 4-20mA DC (configurable for 0-20mA DC via software); HART communication over 4-20mA loop
• Resolution: 16-bit (DAC conversion)
• Accuracy: ±0.05% of full scale (20mA) at 25°C; ±0.1% of full scale over operating temperature range (-40°C to +70°C)
• Isolation Rating: 1500V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation)
• Response Time: ≤100ms (90% step response for analog signal); HART communication baud rate 1200 bps
• Output Load Capacity: Up to 600Ω (for 4-20mA loop); compatible with HART smart actuators/valves (250Ω minimum loop resistance required for HART communication)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from Foxboro I/A Series DCS backplane) + external 24V DC power (for output circuits), power consumption ≤12W
• Backplane Interface: Foxboro I/A Series DCS I/O bus (compatible with AW51, AW52, CP60, and CP70 processors)
• Diagnostic Features: HART device health monitoring (fault codes, calibration status), open-loop detection, short-circuit protection, overrange/underrange alerts, channel-level fault indication, LED status indicators (power, backplane communication, HART activity)
• Configuration: Software-configurable via Foxboro Control Studio or I/A Series Workbench (output range, HART parameters, alarm limits); supports HART DD (Device Description) files
• Compatibility: Foxboro I/A Series DCS (firmware v8.0+), HART 5/7 smart valves/positioners/actuators from major manufacturers (Fisher, Emerson, Siemens)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Foxboro I/A Series DCS I/O chassis (P0916, P0917), hot-swappable (with chassis power on)
• Dimensions: 100mm (W) × 150mm (H) × 30mm (D), Foxboro I/A Series standard form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, CSA, RoHS
• Compatibility: HART 5/7 protocol standards, Foxboro I/A Series DCS, 4-20mA HART smart field devices
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Bi-Directional HART Communication: FOXBORO FBM242 enables remote configuration, calibration, and diagnostics of HART smart valves/actuators, eliminating the need for on-site maintenance visits and reducing operational costs by up to 35%.
2. High Precision & Stability: 16-bit resolution and ±0.05% full-scale accuracy ensure FOXBORO FBM242 delivers consistent analog output signals for critical process control (e.g., chemical reactor flow regulation), minimizing valve positioning errors and improving process stability.
3. Enhanced Isolation & Protection: 3000V AC channel-to-ground isolation and short-circuit protection safeguard FOXBORO FBM242 and connected smart devices from electrical surges and interference in harsh industrial environments (e.g., refineries with high electromagnetic noise).
4. Hot-Swappable Design: FOXBORO FBM242 can be replaced in a live I/A Series DCS chassis without system shutdown, reducing maintenance downtime for 24/7 operations like power generation plants or chemical refineries.
5. Seamless DCS Integration: Native compatibility with Foxboro I/A Series DCS and support for HART DD files simplify integration with smart field devices, eliminating the need for third-party gateways or custom drivers.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery HART flow control valve actuation, pipeline HART pressure regulator control, wellhead HART choke valve positioning
• Chemical Manufacturing: Reactor HART control valve regulation, batch process HART dosing valve actuation, mixer HART speed control actuators
• Power Generation: Turbine HART steam valve control, boiler HART feedwater valve actuation, generator HART excitation control devices
• Water/Wastewater Treatment: HART pump speed control actuators, HART chemical dosing valve regulation, HART filter backwash valve control

4.2 Typical Cases

1. Chemical Plant Reactor Valve Control: A European petrochemical plant deployed FOXBORO FBM242 modules in I/A Series DCS to control 64 HART control valve positioners across 8 reactor units. The module’s bi-directional HART communication enabled remote calibration, reducing maintenance downtime by 40% and improving valve positioning accuracy by 15%.
2. Power Plant Steam Valve Regulation: A U.S. combined-cycle power plant used FOXBORO FBM242 to actuate HART steam valves and monitor device health via HART diagnostics. The module’s high precision ensured stable steam flow control, while predictive maintenance alerts reduced unplanned shutdowns by 25%.
3. Oil Refinery Flow Control: A Middle Eastern oil refinery integrated FOXBORO FBM242 into I/A Series DCS to regulate HART flow control valves in distillation columns. The module’s isolation rating minimized interference from high-voltage equipment, ensuring reliable valve operation and reducing process variability by 20%.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart HART Device Control: Choose FOXBORO FBM242 for applications with HART 5/7 smart valves/actuators—its bi-directional HART communication enables remote configuration and diagnostics, unlike standard AO modules.
2. Foxboro I/A Series DCS Compatibility: Opt for FOXBORO FBM242 for I/A Series DCS installations; generic HART modules lack native integration and require additional drivers, increasing setup complexity.
3. Critical Process Control: Select FOXBORO FBM242 for high-precision applications (e.g., reactor valve control, turbine steam regulation)—its ±0.05% accuracy and robust isolation ensure reliable performance in harsh environments.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM242 in a Foxboro I/A Series DCS I/O chassis only; ensure external 24V DC power is connected to output circuits (required for signal generation and HART communication).
   • Use shielded twisted-pair cables for HART 4-20mA outputs (maximum distance 1000m) and ground the cable shield at the field device end to minimize electromagnetic interference (critical for HART signal integrity).
   • Ensure minimum 250Ω loop resistance for HART communication (add external resistors if needed for low-load devices).
2. Configuration Notes:
   • Load HART DD files for connected smart valves/actuators via Foxboro Control Studio to enable full bi-directional communication—missing DD files will limit diagnostic capabilities.
   • Configure output range (4-20mA/0-20mA) and HART parameters (address, baud rate) to match field devices; mismatched settings will prevent HART data transmission (analog signals may still work).
3. Troubleshooting:
   • For missing HART data (analog output present): Check HART address configuration, verify loop resistance (≥250Ω), and ensure field devices are HART 5/7 compliant.
   • For unstable output signals: Ensure proper grounding (no ground loops), check for EMI/RFI interference from nearby VFDs/motors, and recalibrate the module if necessary.
4. Maintenance:
   • Inspect module connectors quarterly (especially in vibration-prone areas) to prevent loose terminals and signal drift (critical for HART communication stability).
   • Backup module configuration (including HART DD file associations) to I/A Series Workbench for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM242 modules—lead times for Foxboro HART I/O components may exceed 12 weeks for hazardous-location certified units.
