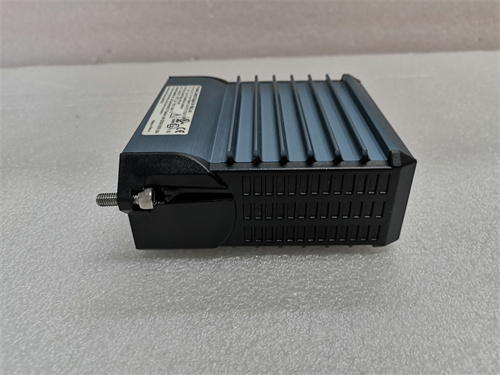

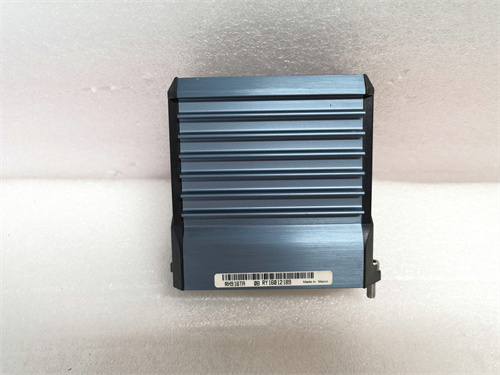

FOXBORO FBM241C

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM241C
• Core HART Analog Input Parameters
  • Input Channels: 8 isolated HART-enabled channels (4-20mA)
  • HART Protocol: HART 7 (compatible with HART 5/6 devices)
  • Resolution: 16-bit
  • Accuracy: ±0.02% of full scale (25°C)
  • Input Impedance: 250Ω (HART-compliant)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: HART device health monitoring (status, alerts), open-loop detection, signal drift monitoring, LED status indicators (per channel)
  • Update Rate: 100ms per channel (analog signal) + HART communication (1s poll rate)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio, HART Communicator integration
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 8W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 50mm (W) × 200mm (H) × 150mm (D) (compact I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified compact chassis)

Advantages & Features

1. Compact HART-Enabled Design: FOXBORO FBM241C occupies 50% less rack space than standard HART input modules, making it ideal for skid-mounted systems, offshore control cabinets, and modular plants where space is limited.
2. Bidirectional HART Communication: Supports HART 7 protocol for remote configuration, calibration, and diagnostics of smart transmitters—eliminating the need for on-site HART communicators and reducing maintenance time by up to 40%.
3. High Precision & Isolation: 16-bit resolution and ±0.02% full-scale accuracy ensure reliable analog signal acquisition, while robust channel isolation prevents cross-talk and interference in compact, high-density control environments.
4. Hot-Swappable & Diagnostics-Rich: Hot-swappable installation allows maintenance without DCS shutdown, while HART device health monitoring enables proactive identification of faulty transmitters before they impact process control.

Application Fields & Cases

1. Modular Chemical Skid Control: A specialty chemical manufacturer deployed FOXBORO FBM241C modules in skid-mounted reactor systems, using the compact design to fit 4 modules in a single small control cabinet. HART communication enabled remote calibration of pressure transmitters, reducing on-site maintenance visits by 35%.
2. Offshore Platform Wellhead Monitoring: An offshore oil operator used FOXBORO FBM241C to connect 8 HART-enabled temperature/pressure transmitters in space-constrained wellhead control cabinets. The module’s isolation and HART diagnostics identified a drifting flow transmitter early, allowing remote reconfiguration and avoiding a platform shutdown.
3. Food & Beverage Packaging Line Monitoring: A beverage company integrated FOXBORO FBM241C into modular packaging line control systems, using HART input channels to monitor fill level transmitters. Hot-swappable design allowed module replacement during production runs, minimizing line downtime and improving overall equipment effectiveness (OEE) by 12%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM241C is ideal for Foxboro I/A Series/Evo™ DCS users with space-constrained applications (modular skids, offshore cabinets) needing HART-enabled analog inputs. For full-size high-density HART needs, choose the standard FOXBORO FBM241; for Emerson/Siemens compact DCS, select their compatible HART modules.
2. Precautions:
   • Ensure installation in Foxboro-certified compact chassis (not standard FBM chassis) to avoid mechanical fit issues and ensure proper HART communication functionality.
   • Use shielded twisted-pair cables for HART wiring and ground shields at the module end only to avoid ground loops and ensure reliable bidirectional HART communication.
   • Configure HART poll rates via Foxboro engineering software to balance communication frequency and DCS bandwidth—higher poll rates improve diagnostics but may increase system load.
   • Follow Foxboro compact module hot-swappable procedures (different from full-size modules) to avoid chassis damage or HART communication disruption during replacement.
   • Regularly check HART device health logs for transmitter alerts (e.g., low battery, sensor drift) to schedule preventive maintenance and avoid process disruptions.
