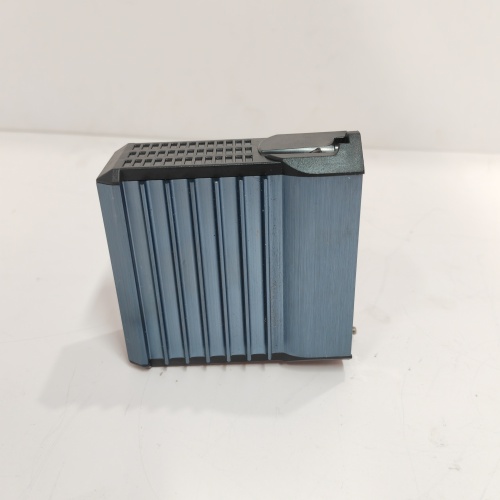

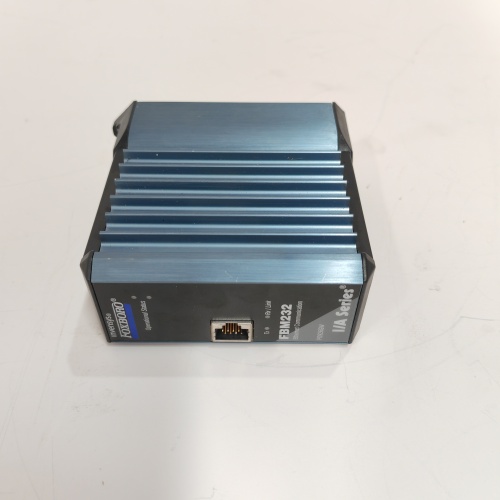

FOXBORO FBM232

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 8 isolated HART analog input channels (4-20mA DC current loop, HART 5/7 compliant)
• Input Range: 4-20mA DC (configurable for 0-20mA DC via software); HART communication over 4-20mA loop
• Resolution: 16-bit (ADC conversion)
• Accuracy: ±0.05% of full scale (20mA) at 25°C; ±0.1% of full scale over operating temperature range (-40°C to +70°C)
• Isolation Rating: 1500V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation)
• Response Time: ≤100ms (90% step response for analog signal); HART communication baud rate 1200 bps
• Input Impedance: 250Ω (nominal, for 4-20mA loop completion + HART signal detection)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from Foxboro I/A Series DCS backplane), power consumption ≤10W
• Backplane Interface: Foxboro I/A Series DCS I/O bus (compatible with AW51, AW52, CP60, and CP70 processors)
• Diagnostic Features: HART device health monitoring (fault codes, calibration status), open-loop detection, overrange/underrange alerts, channel-level fault indication, LED status indicators (power, backplane communication, HART activity)
• Configuration: Software-configurable via Foxboro Control Studio or I/A Series Workbench (input range, HART parameters, alarm limits); supports HART DD (Device Description) files
• Compatibility: Foxboro I/A Series DCS (firmware v8.0+), HART 5/7 smart transmitters/sensors from major manufacturers (Rosemount, Endress+Hauser, Yokogawa)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Foxboro I/A Series DCS I/O chassis (P0916, P0917), hot-swappable (with chassis power on)
• Dimensions: 100mm (W) × 150mm (H) × 30mm (D), Foxboro I/A Series standard form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, CSA, RoHS
• Compatibility: HART 5/7 protocol standards, Foxboro I/A Series DCS, 4-20mA HART smart field devices
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Bi-Directional HART Communication: FOXBORO FBM232 enables remote configuration, calibration, and diagnostics of HART smart devices, eliminating the need for on-site field visits and reducing maintenance costs by up to 30%.
2. High Accuracy & Signal Integrity: ±0.05% full-scale accuracy and 3000V AC channel-to-ground isolation ensure FOXBORO FBM232 delivers precise analog data while rejecting electromagnetic interference in harsh industrial environments (e.g., refineries, chemical plants).
3. Hot-Swappable Design: FOXBORO FBM232 can be replaced in a live I/A Series DCS chassis without system shutdown, minimizing maintenance downtime for 24/7 operations like power generation or oil refining.
4. Comprehensive Diagnostics: Built-in HART device health monitoring and analog signal fault detection (open-loop, overrange) enable predictive maintenance, allowing operators to address issues before they impact production.
5. Seamless DCS Integration: Native compatibility with Foxboro I/A Series DCS and support for HART DD files simplify integration with smart field devices, eliminating the need for third-party gateways or custom drivers.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery HART pressure/temperature transmitter monitoring, pipeline HART flow meter diagnostics, wellhead HART level sensor control
• Chemical Manufacturing: HART reactor temperature/pressure transmitter input, batch process HART mass flow meter monitoring, HART pH sensor diagnostics
• Power Generation: Turbine HART vibration sensor input, boiler HART water level transmitter monitoring, HART fuel flow meter diagnostics
• Water/Wastewater Treatment: HART tank level transmitter input, HART flow meter diagnostics, HART pressure sensor monitoring for pump stations

4.2 Typical Cases

1. Oil Refinery HART Device Monitoring: A Middle Eastern oil refinery deployed FOXBORO FBM232 modules in I/A Series DCS to connect 64 HART pressure and temperature transmitters across distillation columns. The module’s remote HART configuration capability reduced on-site maintenance visits by 40%, cutting operational costs and improving safety.
2. Chemical Plant Predictive Maintenance: A European petrochemical plant used FOXBORO FBM232 to monitor HART flow meters and level sensors in reactor units. The module’s diagnostic features detected early signs of transmitter drift, allowing proactive calibration and reducing unplanned downtime by 25%.
3. Power Plant Turbine Control: A U.S. combined-cycle power plant integrated FOXBORO FBM232 into I/A Series DCS to acquire HART vibration and temperature sensor inputs from gas turbines. The module’s high accuracy ensured precise turbine control, while HART diagnostics enabled real-time monitoring of sensor health—improving turbine reliability by 20%.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart HART Device Integration: Choose FOXBORO FBM232 for applications with HART 5/7 smart transmitters/sensors—its bi-directional HART communication enables remote configuration and diagnostics, unlike standard AI modules.
2. Foxboro I/A Series DCS Compatibility: Opt for FOXBORO FBM232 for I/A Series DCS installations; generic HART modules lack native integration and require additional drivers, increasing setup complexity.
3. Critical Process Control: Select FOXBORO FBM232 for high-precision applications (e.g., turbine control, reactor monitoring)—its ±0.05% accuracy and robust isolation ensure reliable performance in harsh environments.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM232 in a Foxboro I/A Series DCS I/O chassis only; ensure proper backplane termination and chassis ventilation to prevent overheating in high-temperature environments.
   • Use shielded twisted-pair cables for HART 4-20mA inputs (maximum distance 1000m) and ground the cable shield at the field device end to minimize electromagnetic interference (critical for HART signal integrity).
2. Configuration Notes:
   • Load HART DD files for connected smart devices via Foxboro Control Studio to enable full bi-directional communication—missing DD files will limit diagnostic capabilities.
   • Configure HART communication parameters (baud rate, address) to match field devices; mismatched settings will prevent HART data transmission (analog 4-20mA signals may still work).
3. Troubleshooting:
   • For missing HART data (analog signal present): Check HART address configuration, verify cable shielding/grounding, and ensure field devices are HART 5/7 compliant.
   • For inaccurate analog readings: Ensure proper grounding (no ground loops), check for EMI/RFI interference from nearby VFDs/motors, and recalibrate the module if necessary.
4. Maintenance:
   • Inspect module connectors quarterly (especially in vibration-prone areas) to prevent loose terminals and signal drift (critical for HART communication stability).
   • Backup module configuration (including HART DD file associations) to I/A Series Workbench for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM232 modules—lead times for Foxboro HART I/O components may exceed 12 weeks for hazardous-location certified units.
