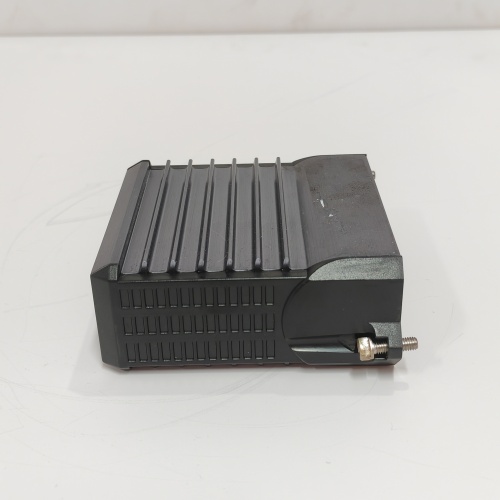

FOXBORO FBM230 P0926GU

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM230 P0926GU
• Core Digital Output Parameters
  • Output Channels: 64 isolated channels (8 groups of 8 channels)
  • Output Voltage: 24V DC (18-30V DC operating range)
  • Output Type: Sinking (NPN) / Sourcing (PNP) configurable per channel group
  • Output Current: 1A per channel (continuous), 2A per channel (peak for 1s)
  • Response Time: ≤ 1ms (on/off transition)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground (optical isolation)
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Short-circuit detection, overcurrent protection, open-load detection, LED status indicators (per channel group)
  • Communication: Foxboro I/A Series backplane (Fieldbus H1 optional for remote I/O)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 20W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. Ultra-High-Density Channel Design: FOXBORO FBM230 P0926GU packs 64 digital output channels into a single module, reducing chassis space requirements by up to 80% compared to standard 16-channel modules and lowering overall system hardware costs for large-scale discrete control applications.
2. Dual Output Configuration Flexibility: Support for both sinking (NPN) and sourcing (PNP) outputs per channel group eliminates the need for separate modules for different actuator types, simplifying system design and inventory management in complex industrial plants.
3. Comprehensive Protection Mechanisms: Built-in short-circuit, overcurrent, and open-load protection prevents damage to the module and connected field devices (e.g., solenoid valves, contactors), minimizing unplanned downtime in mission-critical processes like automotive assembly line control and refinery safety systems.
4. Hot-Swap & Fast Response: Hot-swappable installation allows maintenance without DCS shutdown, while fast response time (≤1ms) ensures real-time switching of critical discrete signals (e.g., emergency shutdown valves, safety interlock actuators).

Application Fields & Cases

1. Automotive Assembly Line Actuator Control: A major automotive manufacturer deployed FOXBORO FBM230 P0926GU modules in its Foxboro Evo™ DCS to control 64 solenoid valves and conveyor contactors per module in a body assembly line. The high-density design reduced the number of modules needed by 75%, while overcurrent protection prevented actuator damage from electrical faults, increasing production uptime by 15%.
2. Oil Refinery Safety System Control: An oil refinery used FOXBORO FBM230 P0926GU to switch 64 safety shutdown valves and alarm indicators across a crude distillation unit. The module’s open-load detection alerted operators to a faulty valve actuator early, triggering a preventive maintenance task and avoiding a potential safety incident.
3. Water Treatment Plant Pump Control: A municipal wastewater treatment facility integrated FOXBORO FBM230 P0926GU into its Foxboro I/A Series DCS to control 64 submersible pumps and valve actuators. The dual sinking/sourcing configuration accommodated mixed actuator types, while hot-swappable design allowed maintenance during peak flow periods without disrupting water treatment operations.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM230 P0926GU is ideal for Foxboro I/A Series/Evo™ DCS users needing ultra-high-density digital output (64 channels) with dual configuration support (e.g., automotive manufacturing, oil refineries). For lower-density needs, choose the standard FOXBORO FBM207; for Emerson/Siemens DCS, select their high-density DO modules (multiple modules required for 64 channels).
2. Precautions:
   • Configure output type (sinking/sourcing) per channel group via Foxboro engineering software to match connected actuators—incorrect settings will cause device damage or signal failure.
   • Use shielded cables for output wiring and maintain proper separation from high-voltage lines to minimize EMI interference in high-density configurations.
   • Verify compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) to unlock full diagnostic capabilities and fast response mode.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules (critical in high-density systems with overlapping channel groups).
   • Ensure connected loads do not exceed the module’s output current rating (1A continuous/2A peak) to avoid overheating and premature failure, especially in large-scale systems with dozens of actuators.
