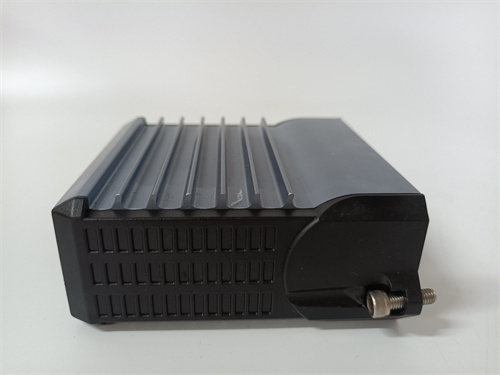

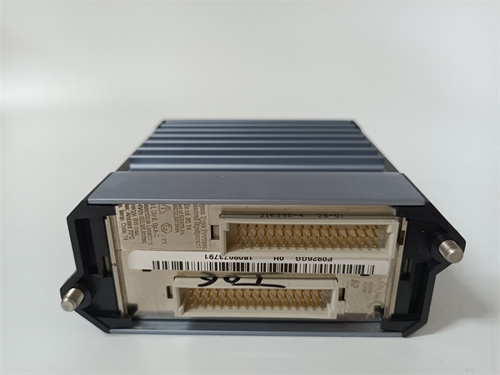

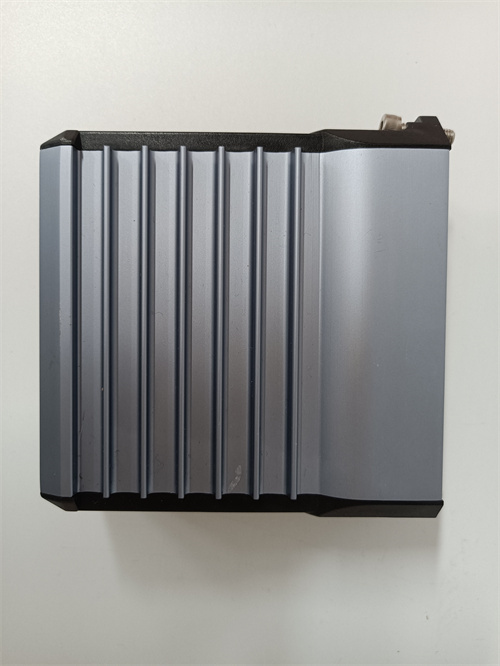

FOXBORO FBM224 P0926GG

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM224 P0926GG
• Core Analog Output Parameters
  • Output Channels: 32 isolated channels (4 groups of 8 channels)
  • Supported Signal Types:
    • Current: 4-20mA DC (sink/source), 0-20mA DC
    • Voltage: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
  • Resolution: 16-bit
  • Accuracy: ±0.02% of full scale (25°C)
  • Load Capacity: 0-600Ω (4-20mA), 0-5kΩ (0-10V)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Overcurrent/short-circuit detection, open-load detection, output drift monitoring, LED status indicators (per channel group)
  • Update Rate: 200ms per module (configurable down to 50ms per channel group)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 20W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. Ultra-High-Density Isolated Outputs: FOXBORO FBM224 P0926GG integrates 32 isolated analog output channels into a single module, reducing chassis space requirements by up to 75% compared to standard 16-channel modules and lowering overall system hardware costs for large-scale control applications.
2. Exceptional Precision & Flexibility: 16-bit resolution and ±0.02% full-scale accuracy ensure precise control signal delivery, while per-channel group configurability (current/voltage) accommodates diverse actuator types without additional hardware.
3. Comprehensive Device Protection: Built-in overcurrent, short-circuit, and open-load detection prevents damage to the module and connected field devices (e.g., control valves, variable speed drives), minimizing unplanned downtime in mission-critical processes.
4. Hot-Swap & Advanced Diagnostics: Hot-swappable design allows maintenance without DCS shutdown, while output drift monitoring and fault diagnostics enable proactive identification of degrading actuators or wiring issues.

Application Fields & Cases

1. Oil Refinery Distillation Unit Control: A major oil refinery deployed FOXBORO FBM224 P0926GG modules in its Foxboro I/A Series DCS to control 32 control valves and flow regulators per module across a crude distillation unit. The high-density design reduced the number of modules needed by 50%, while overcurrent protection prevented valve damage from electrical faults.
2. Chemical Plant Batch Reactor Actuation: A petrochemical facility used FOXBORO FBM224 P0926GG to output 4-20mA signals to 32 dosing pumps and agitator speed controllers in a batch reactor array. Open-load detection alerted operators to a faulty pump motor before process disruption, avoiding costly batch waste and ensuring product quality.
3. Power Generation Turbine Auxiliary Control: A combined-cycle power plant integrated FOXBORO FBM224 P0926GG into its Foxboro Evo™ DCS to regulate 32 steam dampers and cooling system valves. The module’s fast update rate (50ms per group) enabled real-time adjustments to turbine load, improving grid stability and reducing emissions by 10%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM224 P0926GG is ideal for Foxboro I/A Series/Evo™ DCS users needing ultra-high-density analog output (32 channels) with advanced protection (e.g., refineries, chemical plants). For lower-density needs, choose the standard FOXBORO FBM202; for Emerson/Siemens DCS, select their high-density AO modules (multiple modules required for 32 channels).
2. Precautions:
   • Configure signal types (current/voltage) and load limits per channel group via Foxboro engineering software to match connected actuators—incorrect settings may damage devices or cause control errors.
   • Use shielded twisted-pair cables for analog output wiring and maintain proper separation from high-voltage lines to minimize EMI interference in high-density configurations.
   • Verify compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) to unlock full diagnostic capabilities and update rate flexibility.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules (critical in high-density systems with overlapping channel groups).
   • Regularly check diagnostic logs for overcurrent or open-load alerts to identify actuator faults before they impact process control—especially critical in large-scale systems with dozens of controlled devices.
