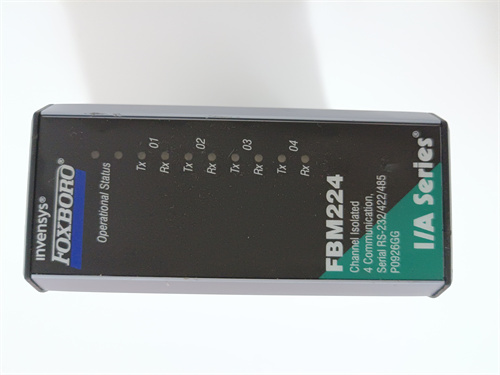

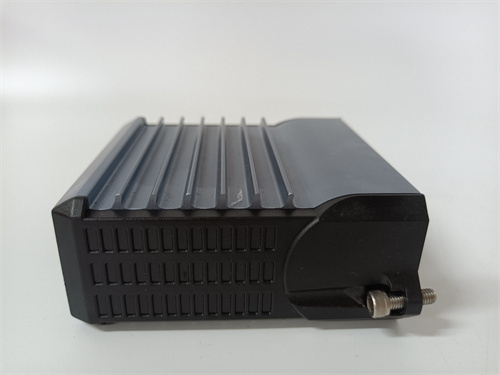

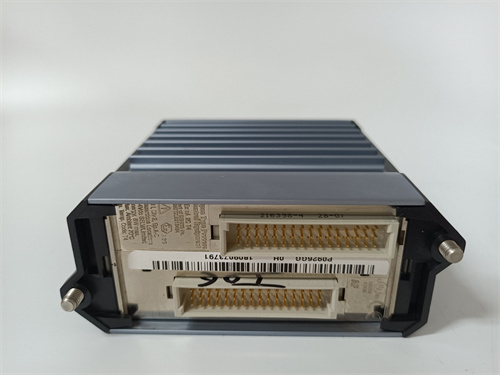

FOXBORO FBM224

Description

1. Product Overview

2. Product Parameters

2.1 Core Communication Specifications

• Protocol Support: Modbus RTU (RS-485/RS-232), Modbus ASCII (RS-232)
• Number of Communication Ports:
  • 2 x RS-485 ports (isolated, multi-drop support up to 32 devices per port)
  • 1 x RS-232 port (isolated, point-to-point)
• Baud Rate: 300 bps to 115.2 kbps (configurable per port)
• Data Bits: 7 or 8 (configurable)
• Parity: None, Even, Odd (configurable)
• Stop Bits: 1 or 2 (configurable)
• Maximum Data Exchange Rate: 1000 registers/second (combined across all ports)
• Isolation: 2500V AC between ports and DCS backplane; 1500V AC between RS-485 ports

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from I/A Series chassis backplane), power consumption ≤8W
• Backplane Interface: Foxboro I/A Series high-speed bus (100 Mbps data transfer)
• Diagnostic Features: Port status monitoring, communication error detection, device connection status, LED indicators (Power, Link, Activity, Fault), remote diagnostics via I/A Series Workbench
• Configuration: Software-configurable via Foxboro Control Studio (protocol, baud rate, register mapping, alarm thresholds)
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), I/A Series chassis (P0916, P0917XQ), Modbus RTU/ASCII slave devices

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Foxboro I/A Series standard module (100mm W × 150mm H × 30mm D)
• Weight: 0.8kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• MTBF: ≥1,500,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Multi-Port Modbus Connectivity: FOXBORO FBM224 offers 2 RS-485 and 1 RS-232 ports, supporting up to 64 Modbus slave devices (32 per RS-485 port) and enabling seamless integration of diverse Modbus equipment with the I/A Series DCS.
2. Robust Isolation & Noise Immunity: 2500V AC isolation between ports and the DCS backplane, plus 1500V AC isolation between RS-485 ports, protects FOXBORO FBM224 from electrical interference and ground loops—critical for reliable communication in noisy industrial environments (e.g., near motors or VFDs).
3. Hot-Swappable Design: FOXBORO FBM224 can be replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like manufacturing plants and power facilities.
4. Flexible Configuration: Software-configurable baud rates, parity, and register mapping allow FOXBORO FBM224 to adapt to nearly all Modbus RTU/ASCII devices, reducing the need for specialized communication gateways and simplifying system integration.
5. Advanced Diagnostics: Real-time port status monitoring and communication error detection enable operators to quickly identify connectivity issues (e.g., disconnected devices, baud rate mismatches), reducing troubleshooting time by up to 60% compared to basic Modbus modules.

4. Application Fields & Cases

4.1 Application Fields

• Manufacturing: Integration of Modbus VFDs, temperature controllers, and barcode scanners with I/A Series DCS
• Water/Wastewater: Connection of Modbus flow meters, level sensors, and valve controllers to central DCS
• Power Generation: Integration of Modbus transformers, circuit breakers, and solar inverter data with I/A Series DCS
• Oil & Gas: Communication between Modbus pipeline sensors, flow computers, and refinery DCS systems

4.2 Typical Cases

1. Manufacturing Plant VFD Integration: A U.S. automotive parts manufacturer deployed FOXBORO FBM224 modules to connect 48 Modbus VFDs (24 per RS-485 port) with the I/A Series DCS. The module’s multi-port design eliminated the need for 6 separate Modbus gateways, cutting hardware costs by $50,000 and simplifying network management.
2. Water Treatment Facility Data Collection: A municipal water treatment plant used FOXBORO FBM224 to retrieve data from 32 Modbus flow meters and level sensors (RS-485) and send control signals to 8 Modbus valves (RS-232). Advanced diagnostics identified a faulty flow meter connection before it caused a process upset, ensuring continuous water treatment operations for 100,000 residents.
3. Solar Power Plant Inverter Integration: A European solar farm integrated FOXBORO FBM224 into its I/A Series DCS to monitor 60 Modbus solar inverters (30 per RS-485 port). The module’s robust isolation protected communication from voltage spikes caused by inverter operation, reducing data loss by 90% compared to non-isolated gateways.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Multi-Device Modbus Integration: Choose FOXBORO FBM224 for applications requiring connection to 16+ Modbus slave devices—its dual RS-485 ports support up to 64 devices, eliminating the need for multiple gateways.
2. Harsh Industrial Environments: Opt for FOXBORO FBM224 for sites with high electrical interference (e.g., manufacturing plants, power facilities)—robust isolation ensures reliable communication and protects the DCS from ground loops.
3. 24/7 Continuous Operations: Select FOXBORO FBM224 for critical infrastructure (water treatment, power generation) requiring zero maintenance downtime—hot-swappable design enables module replacement without process interruption.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM224 in Foxboro I/A Series chassis only (P0916, P0917XQ); ensure proper grounding of RS-485/RS-232 cables to minimize noise and ground loops.
   • Use shielded twisted-pair wiring for RS-485 connections (maximum distance 1200m) and terminate the last device in each RS-485 segment with a 120Ω resistor to prevent signal reflection.
2. Configuration Notes:
   • Match baud rate, parity, and data/stop bits between FOXBORO FBM224 and Modbus slave devices—mismatched settings will cause communication failures.
   • Map Modbus registers (coils, discrete inputs, holding registers) to I/A Series DCS tags via Foxboro Control Studio to ensure accurate data exchange and control.
3. Troubleshooting:
   • For communication errors: Check cable termination (120Ω resistor for RS-485), verify device address and register mapping, and inspect for EMI sources (VFDs, motors) near communication cables.
   • For port faults: Review module diagnostics via I/A Series Workbench to identify short circuits or overvoltage conditions in FOXBORO FBM224 ports.
4. Maintenance:
   • Inspect communication cables annually for damage or loose connections—critical for maintaining reliable Modbus communication.
   • Backup module configuration (port settings, register mapping) to the I/A Series database for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM224 modules—lead times for communication modules may exceed 8 weeks for hazardous-location certified units.
