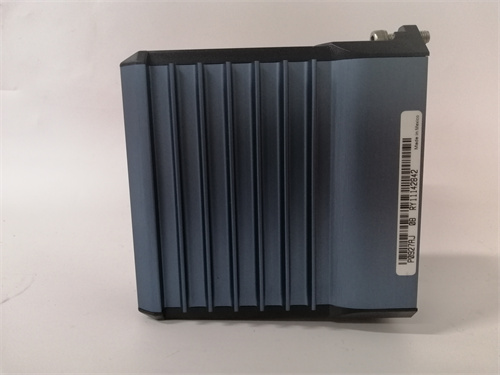

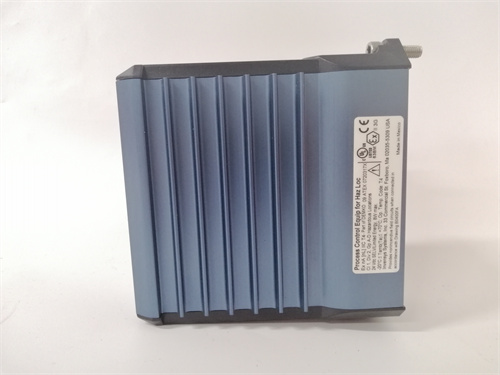

FOXBORO FBM216B

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM216B
• Core Input & Communication Parameters
  • Input Channels: 8 individually isolated channels
  • Input Signal Types: 4-20mA analog signal, HART FSK signal
  • HART Compatibility: Compliant with HART versions 5, 6, and 7
  • Accuracy: ±0.075% of full scale
  • Resolution: 15 bits
  • Update Rate: 100 ms
  • Communication Rate: 1200 baud, 2 messages per second
• Electrical & Power Parameters
• Sense Resistor: 280Ω ± 0.02%
• Input Resistance: 282Ω (external), 302Ω (internal)
• Loop Supply: Minimum 18.5V DC at 20.5mA
• Current Limit: 37mA (single), 72mA (redundant)
• Power Supply: 24V DC (+5%, -10%), maximum power consumption of 7W and maximum dissipation of 4W
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
  • Humidity: 5%-95% non-condensing
  • Altitude: -300m ~ +3000m (operating)
  • Dimensions: 102mm × 45mm × 104mm (module)
  • Weight: 284g (module), 181g (termination assembly)
  • Mounting Method: DIN rail or 19-inch rack mounting

Advantages & Features

1. Redundant HART Communication Support: As a redundant HART input module, FOXBORO FBM216B ensures uninterrupted data transmission. In case of a communication link failure, the redundant design enables quick switching, avoiding data loss in critical process control.
2. High Anti-Interference Capability: The module is equipped with per-channel galvanic isolation, and its common mode rejection can exceed 100dB at 50/60Hz. This strong anti-interference ability allows it to maintain signal stability in environments with heavy electrical noise, such as near industrial pumps and high-voltage equipment.
3. Broad Compatibility: It is compatible with Foxboro Evo™ and Foxboro I/A Series DCS. Meanwhile, its support for multiple HART versions enables it to work with a large number of HART smart instruments, reducing the cost of equipment replacement and upgrade for enterprises.
4. Convenient Maintenance & Installation: With a compact modular design, it supports DIN rail or 19-inch rack mounting. The matching termination assembly facilitates wiring operations, and its standardized interface allows for quick replacement and maintenance without long-term system shutdowns.

Application Fields & Cases

1. Oil Refinery Pressure Monitoring: A large oil refinery integrated FOXBORO FBM216B into its Foxboro Evo™ DCS to monitor the pressure and flow parameters of crude oil distillation towers. The module’s 8 isolated channels collected data from 8 HART pressure transmitters simultaneously. The redundant design prevented data interruptions during a sudden communication line failure, ensuring the stable operation of the distillation process and reducing the risk of equipment damage caused by parameter abnormalities.
2. Chemical Plant Batch Production Control: A petrochemical enterprise used FOXBORO FBM216B to collect temperature and concentration signals in its batch reactor system. Through HART communication, the module not only acquired real-time process data but also remotely adjusted the parameters of field transmitters. This bidirectional communication function simplified the on-site debugging process and improved the accuracy of batch production.
3. Municipal Water Treatment Quality Monitoring: A municipal water treatment plant deployed FOXBORO FBM216B to connect with HART-enabled water quality sensors (monitoring pH value, turbidity, etc.). The module transmitted the collected analog signals to the central DCS after conversion. Its high accuracy (±0.075% of full scale) ensured the reliability of water quality data, providing a solid basis for the precise dosing and filtration control of the water treatment process.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM216B is the preferred choice for enterprises using Foxboro Evo™ or I/A Series DCS, especially those in oil and gas, chemical, and other industries that require redundant and reliable HART signal acquisition. For users of Emerson DeltaV DCS, Emerson DeltaV HART AI modules are more suitable for seamless integration. For Siemens PCS 7 systems, Siemens PCS 7 AI modules are more compatible.
2. Precautions
   • Use shielded twisted-pair cables for wiring to further enhance anti-interference performance, especially when the wiring distance exceeds 10 meters.
   • Confirm that the HART version of the connected field instruments is compatible with the module (versions 5, 6, or 7) to avoid communication failures.
   • Strictly follow the power supply range (24V DC ±5%/-10%) during installation. Overvoltage or undervoltage may damage the module’s internal components.
   • Regularly check the module’s termination assembly and wiring connections. Loose connections in harsh industrial environments can lead to signal instability or measurement errors.
   • Back up the module’s configuration parameters through the DCS software regularly to facilitate quick recovery in case of module failure and replacement.
