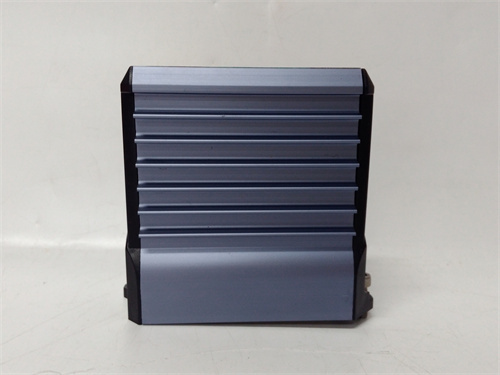

FOXBORO FBM216

Description

1. Product Overview

2. Product Parameters

2.1 Core Analog Output & HART Specifications

• Number of Channels: 8 HART-enabled 4-20mA output channels (fully isolated per channel)
• HART Compatibility: HART 5, HART 7 (bi-directional communication, 1200 bps)
• Output Range: 4-20mA DC (configurable to 0-20mA DC via software)
• Resolution: 16-bit (0.00125% of full scale)
• Accuracy: ±0.02% of full scale (25°C); ±0.05% of full scale (-40°C to +70°C)
• Isolation: 2000V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation)
• Load Capacity: Up to 750Ω (at 24V DC supply) – compatible with long-distance HART loops
• Response Time: ≤10ms (90% step response for 4-20mA); ≤50ms for HART data transmission

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from I/A Series chassis backplane), power consumption ≤12W
• Backplane Interface: Foxboro I/A Series high-speed bus (100 Mbps data transfer)
• Diagnostic Features: Overcurrent protection, short-circuit protection, HART device health monitoring, LED status indicators (Power, OK, Fault, Channel Activity), remote diagnostics via I/A Series Workbench
• Configuration: Software-configurable via Foxboro Control Studio (output range, HART parameters, alarm thresholds)
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), HART 5/7 smart actuators/valves/VSDs, I/A Series chassis (P0916, P0917XQ)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Foxboro I/A Series standard module (100mm W × 150mm H × 30mm D)
• Weight: 0.9kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61508 SIL 2, IEC 61010-1, RoHS
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Bi-Directional HART Communication: FOXBORO FBM216 enables remote configuration, calibration, and diagnostic data retrieval from HART smart actuators/valves, reducing field maintenance time by 60% and lowering operational costs.
2. Ultra-Precise Output Control: ±0.02% full-scale accuracy and 16-bit resolution ensure FOXBORO FBM216 delivers precise 4-20mA signals for critical control loops (e.g., pharmaceutical batch reactors, LNG cryogenic valve control), minimizing process variability.
3. Full Channel Isolation: 2000V AC channel-to-channel isolation protects FOXBORO FBM216 from cross-talk and voltage surges in noisy industrial environments (e.g., near VFDs or high-voltage equipment), ensuring reliable HART communication and signal output.
4. Hot-Swappable Design: FOXBORO FBM216 can be replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like refineries and power plants.
5. Enhanced Diagnostic Capabilities: Built-in overcurrent/short-circuit protection and HART device health monitoring enable operators to quickly identify faults in field devices or wiring, reducing troubleshooting time by up to 50% compared to basic AO modules.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery HART valve positioner control, pipeline VSD speed regulation, offshore platform HART actuator monitoring
• Chemical Manufacturing: Reactor HART control valve actuation, batch process agitator speed regulation via HART VSDs, hazardous area HART actuator diagnostics
• Power Generation: Turbine HART fuel flow actuator control, boiler HART damper positioning, wind turbine HART pitch control
• Water/Wastewater: Treatment plant HART valve control for flow/pressure regulation, pump station HART VSD speed adjustment, sludge thickener HART actuator monitoring

4.2 Typical Cases

1. Refinery HART Valve Control: A Middle Eastern oil refinery deployed FOXBORO FBM216 modules to control 64 HART smart valves across 8 distillation units. Remote calibration via HART reduced field maintenance visits by 70%, while the module’s ±0.02% accuracy ensured precise valve positioning, improving product separation efficiency by 2%.
2. Chemical Plant Reactor Control: A European pharmaceutical plant used FOXBORO FBM216 to actuate 8 HART control valves in sterile batch reactors. Bi-directional HART communication enabled real-time monitoring of valve health, identifying a failing actuator before it caused a batch upset and saving $150,000 in product loss.
3. Power Plant Turbine Fuel Control: A U.S. combined-cycle power plant integrated FOXBORO FBM216 into its I/A Series DCS to control HART fuel flow actuators for 4 gas turbines. Hot-swappable functionality allowed module replacement during peak power generation, avoiding a 6-hour shutdown and saving $250,000 in lost revenue.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart HART Actuator/Valve Control: Choose FOXBORO FBM216 for applications with HART 5/7 smart actuators, valves, or VSDs—bi-directional communication enables remote management and predictive maintenance.
2. Precision Control Loops: Opt for FOXBORO FBM216 for critical processes (e.g., pharmaceutical batch manufacturing, LNG cryogenic control) requiring ±0.02% accuracy and low signal drift.
3. 24/7 Continuous Operations: Select FOXBORO FBM216 for refineries, power plants, or chemical facilities requiring zero downtime—hot-swappable design ensures maintenance without process interruption.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM216 in Foxboro I/A Series chassis only (P0916, P0917XQ); ensure proper chassis grounding to minimize EMI interference and maintain HART communication reliability.
   • Use shielded twisted-pair wiring for HART output loops (maximum distance 1000m) and ground shields at the field device end to reduce noise—critical for stable HART data transmission.
2. Configuration Notes:
   • Configure HART parameters (address, communication mode) and output range per channel via Foxboro Control Studio before commissioning—incorrect settings will disrupt HART communication or damage field devices.
   • Enable overcurrent/short-circuit protection for all channels to safeguard FOXBORO FBM216 and connected HART actuators from electrical faults.
3. Troubleshooting:
   • For HART communication failures: Check loop resistance (250-750Ω), verify HART device address configuration, and inspect for EMI sources (VFDs, motors) near output wiring.
   • For erratic output signals: Review module diagnostics via I/A Series Workbench to identify overcurrent conditions or channel isolation faults in FOXBORO FBM216.
4. Maintenance:
   • Recalibrate output channels annually using a precision current calibrator to maintain ±0.02% accuracy—critical for regulated industries like pharmaceuticals and food processing.
   • Backup module configuration and HART device settings to the I/A Series database for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM216 modules—lead times for HART AO modules may exceed 10 weeks for hazardous-location certified units.
