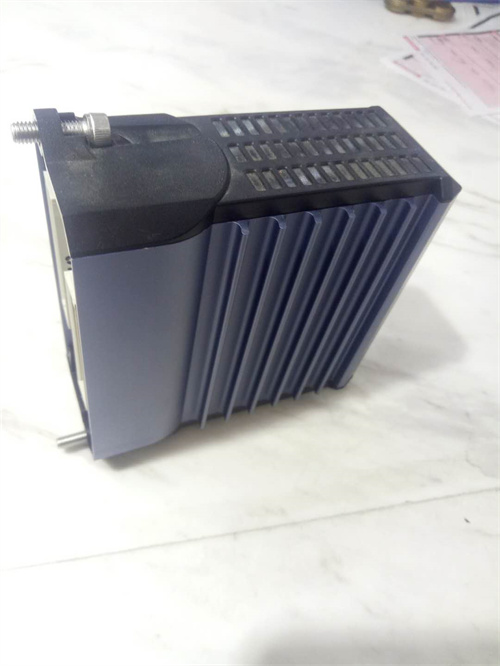

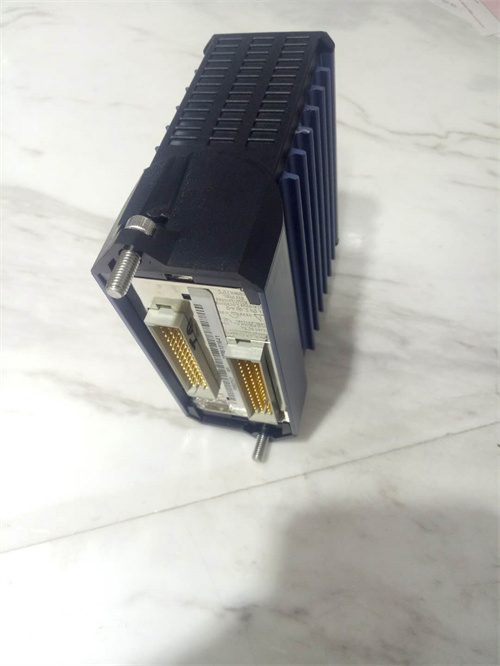

FOXBORO FBM214B RH924JH

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM214B Module Specifications

• Number of Channels: 16 HART-enabled 4-20mA input channels (4 channels per isolated group)
• HART Compatibility: HART 5, HART 7 (bi-directional communication, 1200 bps)
• Input Range: 4-20mA DC (configurable to 0-20mA DC via software)
• Resolution: 16-bit (0.00125% of full scale)
• Accuracy: ±0.02% of reading (25°C); ±0.05% of reading (-40°C to +70°C)
• Isolation: 1500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground
• Response Time: ≤20ms (90% step response for 4-20mA); ≤50ms for HART data retrieval
• Loop Resistance: 250-600Ω (optimal for HART communication)

2.2 RH924JH Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)

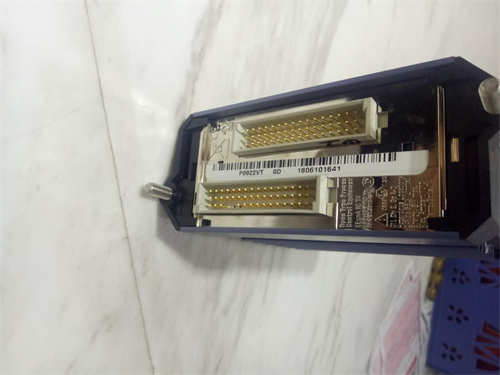

• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer) + HART modem integration
• Mechanical Features: Hot-swappable module carrier, locking lever for secure engagement, integrated surge/ESD protection
• Power Delivery: 24V DC power distribution from chassis to FBM214B module (via RH924JH interface)
• HART Signal Conditioning: Built-in termination resistors (250Ω) for HART communication

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 1.0kg (FBM214B + RH924JH kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), HART 5/7 smart transmitters/flow meters, I/A Series Workbench/Control Studio
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. Bi-Directional HART Communication: FOXBORO FBM214B RH924JH supports remote configuration, calibration, and diagnostic data retrieval from HART smart devices, eliminating 70% of manual field maintenance and reducing operational costs.
2. High-Density HART Inputs: 16 HART-enabled channels in a single module maximize I/O density, while group-level isolation minimizes cross-channel interference—making FOXBORO FBM214B RH924JH ideal for smart sensor networks in refineries and chemical plants.
3. Hot-Swappable Plug-and-Play Design: The pre-assembled FOXBORO FBM214B RH924JH can be replaced in a live I/A Series chassis without system shutdown, ensuring zero downtime for 24/7 operations like power generation and pipeline monitoring.
4. Integrated HART Signal Conditioning: The RH924JH interface includes built-in 250Ω termination resistors, eliminating the need for external HART modems or resistors and simplifying installation.
5. Enhanced Diagnostic Capabilities: FOXBORO FBM214B RH924JH captures device health data (e.g., sensor drift, battery status) from HART devices, enabling predictive maintenance and reducing unplanned equipment failures by 40%.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery HART pressure/temperature transmitter monitoring, pipeline HART flow meter configuration, offshore platform HART level sensor diagnostics
• Chemical Manufacturing: Reactor HART pH/level transmitter remote calibration, batch process HART flow meter data acquisition, hazardous area HART device health monitoring
• Power Generation: Boiler HART steam pressure transmitter diagnostics, turbine HART vibration sensor configuration, cooling tower HART level transmitter monitoring
• Water/Wastewater: Treatment plant HART flow/pressure transmitter remote management, pump station HART vibration sensor diagnostics, reservoir HART level transmitter monitoring

4.2 Typical Cases

1. Refinery HART Device Management: A Gulf Coast oil refinery deployed 15 FOXBORO FBM214B RH924JH assemblies to monitor 240 HART pressure and temperature transmitters across 10 process units. Remote calibration via HART reduced field maintenance time by 65%, while predictive diagnostics identified a failing transmitter before it caused a process upset, saving $300,000 in downtime.
2. Chemical Plant Predictive Maintenance: A European pharmaceutical plant used FOXBORO FBM214B RH924JH to collect diagnostic data from 16 HART pH transmitters in sterile batch reactors. The module’s ability to detect sensor drift enabled proactive replacement, reducing batch rejection rates by 12% and complying with FDA regulations.
3. Power Plant HART Configuration: A U.S. combined-cycle power plant integrated FOXBORO FBM214B RH924JH into its I/A Series DCS to remotely configure 32 HART flow meters in the fuel system. Hot-swappable functionality allowed module replacement during peak power generation, avoiding a 6-hour shutdown and saving $250,000 in lost revenue.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart HART Device Networks: Choose FOXBORO FBM214B RH924JH for applications with 8+ HART 5/7 smart devices—high channel density and integrated termination reduce system complexity and costs.
2. Predictive Maintenance Programs: Opt for FOXBORO FBM214B RH924JH to enable remote diagnostics of HART devices, minimizing unplanned downtime and extending equipment lifespan.
3. 24/7 Critical Operations: Select FOXBORO FBM214B RH924JH for refineries, power plants, or chemical facilities requiring zero maintenance downtime—hot-swappable design ensures continuous operation.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM214B RH924JH only in Foxboro I/A Series chassis (P0916, P0917XQ); secure the module with the integrated locking lever to prevent disconnection from vibration—loose connections disrupt HART communication.
   • Use shielded twisted-pair wiring for HART signals (maximum distance 1000m) and ground shields at the field device end to minimize EMI interference with FOXBORO FBM214B RH924JH.
2. Configuration Notes:
   • Enable HART communication per channel group via Foxboro Control Studio before commissioning—ensure loop resistance (250-600Ω) for reliable HART data transfer.
   • Map HART diagnostic variables (e.g., device status, sensor health) to the DCS database for real-time monitoring and alerting.
3. Troubleshooting:
   • For HART communication failures: Check loop resistance (verify 250Ω termination via RH924JH), inspect wiring for short circuits, and confirm HART device compatibility (HART 5/7).
   • For erratic 4-20mA readings: Review group-level isolation status via I/A Series Workbench, check for EMI sources near input wiring, and verify module calibration.
4. Maintenance:
   • Recalibrate 4-20mA input channels annually using a precision current calibrator to maintain ±0.02% accuracy.
   • Backup HART configuration and module settings to the I/A Series database—critical for rapid replacement of FOXBORO FBM214B RH924JH in case of failure.
   • Stock spare assemblies—lead times for FOXBORO FBM214B RH924JH may exceed 12 weeks for hazardous-location certified units.
