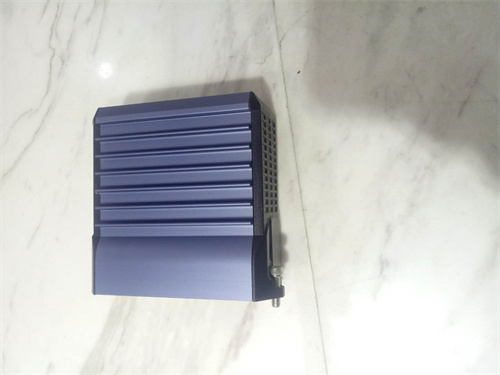

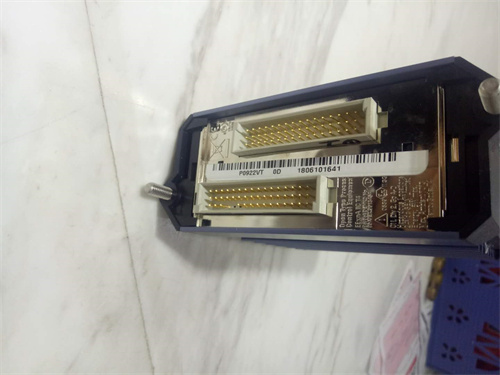

FOXBORO FBM214 P0922VT

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM214 P0922VT
• Core Communication Parameters
  • Supported Protocols: Modbus RTU, Modbus ASCII, Modbus TCP/IP
  • Physical Ports:
    • 1× RS-485 (2-wire/4-wire) for Modbus RTU/ASCII
    • 1× Ethernet (RJ45) for Modbus TCP/IP
  • Redundancy: Hot standby (automatic failover between RS-485 and Ethernet ports)
  • Communication Speed:
    • RS-485: 9.6 kbps ~ 115.2 kbps (auto-negotiable)
    • Ethernet: 10/100 Mbps (auto-sensing)
  • Maximum Nodes:
    • RS-485: 32 devices (Modbus RTU/ASCII)
    • Ethernet: Unlimited (Modbus TCP/IP, via network)
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Connection status monitoring, CRC error logging, device timeout alerts, LED status indicators (per port)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio, Modbus Configuration Tool
  • Data Transfer Latency: ≤ 5ms (Modbus TCP/IP), ≤ 10ms (Modbus RTU)
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Consumption: ≤ 10W (module)
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. Multi-Protocol Modbus Support: FOXBORO FBM214 P0922VT integrates Modbus RTU/ASCII (RS-485) and Modbus TCP/IP (Ethernet) in a single module, eliminating the need for separate communication hardware and simplifying integration of legacy (RS-485) and modern (Ethernet) Modbus devices.
2. Dual Redundant Ports: Hot standby failover between RS-485 and Ethernet ports ensures uninterrupted communication—critical for applications like water treatment plant SCADA systems where device connectivity is mission-critical.
3. Advanced Diagnostics: Real-time monitoring of connection status, CRC errors, and device timeouts enables rapid identification of network issues, reducing mean time to repair (MTTR) and minimizing process disruptions.
4. Hot-Swappable & Easy Integration: Hot-swappable design allows maintenance without DCS shutdown, while native compatibility with Foxboro DCS platforms reduces configuration time and ensures seamless data exchange with the control system.

Application Fields & Cases

1. Water Treatment Plant SCADA Integration: A municipal water treatment facility deployed FOXBORO FBM214 P0922VT modules in its Foxboro I/A Series DCS to connect 24 Modbus RTU flow meters (RS-485) and 16 Modbus TCP/IP pressure sensors (Ethernet) across the plant. Redundant ports prevented communication loss during an Ethernet switch failure, ensuring continuous monitoring of water treatment processes.
2. HVAC Control for Industrial Buildings: A large manufacturing facility used FOXBORO FBM214 P0922VT to integrate Modbus RTU HVAC controllers (RS-485) and Modbus TCP/IP energy meters (Ethernet) into its Foxboro Evo™ DCS. Advanced diagnostics alerted operators to a faulty HVAC controller, enabling timely maintenance and reducing energy waste by 15%.
3. Legacy PLC Integration for Chemical Plant: A petrochemical plant integrated FOXBORO FBM214 P0922VT with legacy Modbus RTU PLCs (RS-485) and modern Modbus TCP/IP analyzers (Ethernet) into its Foxboro I/A Series DCS. The module’s multi-protocol support eliminated the need for gateways, simplifying the control system architecture and lowering hardware costs by 20%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM214 P0922VT is ideal for Foxboro I/A Series/Evo™ DCS users needing multi-protocol Modbus connectivity with dual port redundancy (e.g., water treatment, HVAC, legacy device integration). For Emerson DeltaV DCS, choose DeltaV Modbus modules; for Siemens S7-400 systems, select CP 443-1 Modbus modules.
2. Precautions:
   • Configure Modbus protocol (RTU/ASCII/TCP) and baud rate (RS-485) via Foxboro engineering software to match connected devices—incorrect settings will cause communication failures.
   • Use shielded twisted-pair cables for RS-485 wiring and CAT5e/CAT6 cables for Ethernet to minimize EMI interference, especially in high-noise industrial environments.
   • Enable port redundancy via configuration tools and test failover functionality after installation to ensure uninterrupted communication.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly check diagnostic logs for CRC errors or device timeouts to identify network issues (e.g., faulty cables, unresponsive devices) before they impact process control.
