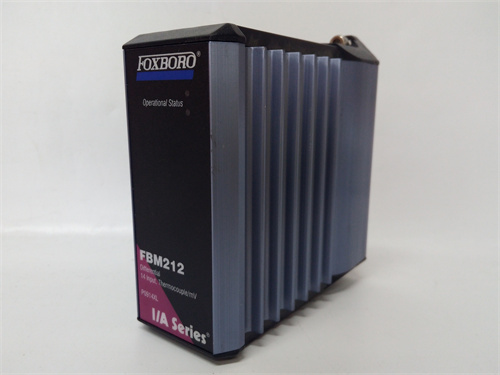

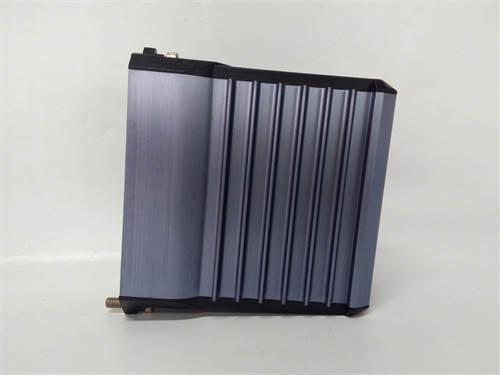

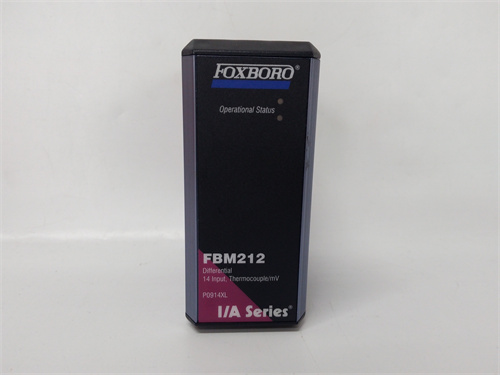

FOXBORO FBM212 P0914XL

Description

Product Overview

The FOXBORO FBM212 P0914XL is a robust, high-density analog output module designed for the Foxboro I/A Series distributed control system. As a Fieldbus Module (FBM), it serves as a critical intelligent interface between the control processors and final control elements in the field, such as control valves, variable frequency drives (VFDs), and positioners. The primary function of the FOXBORO FBM212 P0914XL is to convert digital control signals from the I/A Series controllers into precise, isolated 4-20 mA analog output signals used to modulate field devices and execute control strategies. For comprehensive technical data, configuration guides, and installation manuals, please refer to the official product resource: FOXBORO FBM212 P0914XL. This module is a cornerstone for implementing continuous control loops in process automation, and its reliability directly impacts process stability and product quality. The specific P0914XL suffix may denote a particular hardware revision or feature set.

Product Parameters and Specifications

• Function: Analog Output Module (4-20 mA) for I/A Series DCS.
• Number of Channels: Typically 8 isolated analog output channels.
• Output Signal: 4 to 20 mA DC, with a defined load capability (e.g., up to 750 Ohms).
• Resolution: High resolution (e.g., 15-bit or better) for precise control signal generation.
• Accuracy: High accuracy specification (e.g., ±0.1% of full scale) under defined operating conditions.
• Isolation: Channel-to-channel and channel-to-system isolation to prevent ground loops and ensure fault containment.
• Update Rate: Supports a configurable update rate synchronized with the control system’s block execution.
• Diagnostics: Comprehensive onboard diagnostics for module health, communication faults, and channel-specific faults like open wire detection (using optional circuitry or external feedback).
• Connection: Plugs into a compatible Foxboro Plug-in Mounting Module (e.g., IPM2 series) which provides the field terminations.

Advantages and Key Features

The FOXBORO FBM212 P0914XL offers significant advantages for reliable process control. Its high channel density reduces footprint and cost per loop. The module provides exceptional output signal accuracy and stability, which is paramount for precise control of critical process variables like flow, pressure, and level. The individual channel isolation is a key safety and reliability feature, preventing a fault in one output from affecting others or the backplane. It supports true hot-swap capability; the module can be inserted or removed from its mounting module without powering down the field devices or the control network, drastically reducing maintenance downtime. The FOXBORO FBM212 is fully integrated with the I/A Series control software, allowing for seamless configuration, calibration (including internal soft calibration), and detailed diagnostic reporting from the operator workstation.

Application Cases in Industry

This module is fundamental in continuous process industries utilizing the Foxboro I/A Series. In Oil & Gas Refineries, the FBM212 P0914XL controls the opening of flow control valves in distillation columns, reactor feed lines, and product blending headers. Within Chemical and Petrochemical Plants, it modulates valves for reagent dosing, reactor temperature control, and pressure regulation. In Power Generation (thermal, nuclear), it sends signals to govern turbine inlet valves, feedwater control valves, and burner management systems. The FOXBORO FBM212 is also extensively used in Pharmaceutical and Food & Beverage industries for batch process control, precisely controlling ingredients, temperature, and pressure during critical production phases.

Comparison with Competing Products

Compared to analog output modules in standard PLC systems (e.g., Siemens, Rockwell), the FBM212 is distinguished by its deep integration within the DCS architecture, offering deterministic performance synchronized with control blocks and advanced system-level diagnostics. Compared to other DCS vendors’ analog output cards (e.g., Emerson DeltaV, Honeywell Experion), the FOXBORO FBM212 P0914XL offers comparable core performance. Key differentiators often lie in the specific diagnostic capabilities (like the sophistication of its HART integration if supported), the physical form factor and mounting system (Foxboro’s plug-in mounting system), and the redundancy options. Its primary competition is other Foxboro FBM21x series modules; selection is based on required channel count, isolation specifications, and special features like integrated HART.

Selection Suggestions and Precautions

• Selection Advice:
  1. Mounting Module Compatibility: The FOXBORO FBM212 P0914XL must be used with the correct Plug-in Mounting Module (e.g., a specific IPM2-Pxxxx model) designed for 8-channel analog outputs.
  2. Load Compatibility: Verify the total loop resistance (wire + field device) for each channel does not exceed the module’s specified drive capability (e.g., 750 Ohms).
  3. HART Requirement: If communication with HART-enabled field instruments is needed over the same wires, confirm whether this specific P0914XL variant has integrated HART modem functionality or if an external HART multiplexer is required.
  4. Redundancy Needs: For critical control loops, plan for output redundancy, which may involve specific hardware configurations and logic in the controller.
• Important Precautions:
  1. Field Wiring Isolation: Ensure field wiring is properly isolated and shielded. For isolated outputs, avoid accidentally tying the negative sides of different channels together in the field, as this defeats the isolation.
  2. Intrinsic Safety (IS) Barriers: If used in hazardous areas, correctly sized and certified intrinsic safety barriers or isolators must be installed between the FBM212 and the field device.
  3. Handling and Seating: When inserting the module, ensure it is correctly aligned with the guide rails and connector on the mounting module. Engage the locking lever firmly.
  4. Configuration Verification: Before placing a loop in automatic, verify the output configuration (range, fail-state behavior) in the control software and perform a manual output test to confirm the valve or drive responds correctly.
