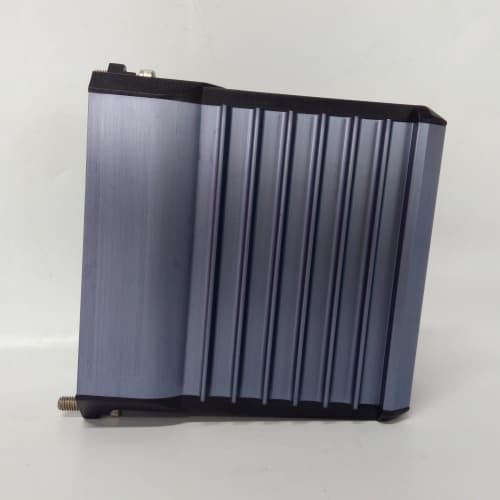

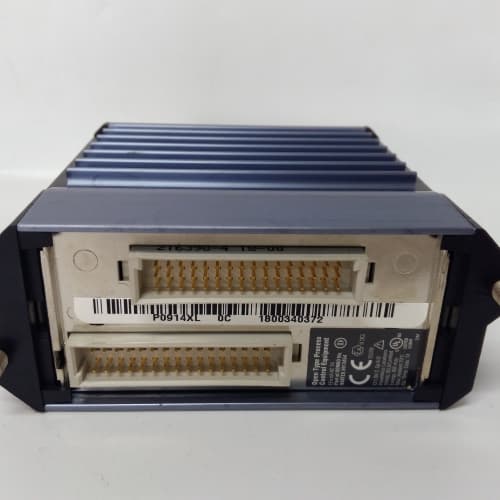

FOXBORO FBM212 P0914XL

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM212 Module Specifications

• Number of Channels: 32 universal analog input channels (8 channels per isolated group)
• Supported Signal Types:
  • Current: 4-20mA DC, 0-20mA DC
  • Voltage: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
  • Temperature: Thermocouple (J/K/T/E/R/S/B/N), RTD (Pt100, Pt1000, Ni1000)
  • Millivolt: 0-100mV DC, ±100mV DC
• Resolution: 16-bit (all signal types)
• Accuracy:
  • 4-20mA/RTD: ±0.02% of reading
  • Thermocouple: ±0.1°C (at 0°C for Type K)
  • Voltage: ±0.05% of full scale
• Isolation: 1500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground
• Response Time: ≤20ms (4-20mA); ≤100ms (thermocouple/RTD)

2.2 P0914XL Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)
• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer)
• Mechanical Features: Hot-swappable module carrier, locking lever for secure engagement, integrated surge/ESD protection
• Power Delivery: 24V DC power distribution from chassis to FBM212 module (via P0914XL interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 1.1kg (FBM212 + P0914XL kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), third-party analog sensors/transmitters, I/A Series Workbench/Control Studio
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. Universal Signal Compatibility: FOXBORO FBM212 P0914XL supports all major analog signal types (current, voltage, thermocouple, RTD, millivolt) in a single module, eliminating the need for multiple specialized AI modules and reducing hardware costs by up to 40%.
2. High Channel Density: 32 channels (8 per isolated group) maximize I/O density, allowing FOXBORO FBM212 P0914XL to replace four 8-channel modules in control panels—saving space and simplifying wiring.
3. Hot-Swappable Plug-and-Play Design: The pre-assembled FOXBORO FBM212 P0914XL can be replaced in a live I/A Series chassis without system shutdown, minimizing maintenance downtime for 24/7 operations like refineries and water treatment plants.
4. Precision Measurement: 16-bit resolution and ±0.02% accuracy for 4-20mA/RTD signals ensure FOXBORO FBM212 P0914XL delivers reliable data for critical process control applications (e.g., pharmaceutical batch manufacturing, LNG plant monitoring).
5. Robust Isolation & Noise Immunity: Group-level isolation and EMI/RFI filtering protect FOXBORO FBM212 P0914XL from electrical interference in harsh industrial environments, ensuring signal integrity even near motors, VFDs, or high-voltage equipment.

4. Application Fields & Cases

4.1 Application Fields

• Water/Wastewater: Treatment plant flow/pressure/level monitoring, pH/ORP sensor input, pump station vibration/temperature measurement
• Petrochemical: Refinery fractionation unit multi-signal monitoring (4-20mA, RTD, thermocouple), chemical reactor process variable input
• Pharmaceutical: Batch process temperature/pressure/level monitoring, cleanroom environmental control (humidity, temperature)
• Power Generation: Combined-cycle plant turbine monitoring (vibration, temperature, pressure), solar farm inverter output signal capture

4.2 Typical Cases

1. Water Treatment Plant Monitoring: A municipal water treatment plant deployed 8 FOXBORO FBM212 P0914XL assemblies to monitor 256 analog signals (flow, pressure, level, pH) across 10 treatment stages. High channel density reduced chassis requirements by 60%, while universal signal compatibility eliminated the need for separate pH and temperature modules, cutting hardware costs by $120,000.
2. Petrochemical Refinery Fractionation Unit: A Gulf Coast refinery integrated FOXBORO FBM212 P0914XL into its I/A Series DCS to capture 32 signals (4-20mA flow, Pt100 temperature, Type K thermocouple) per module in a fractionation unit. Hot-swappable functionality allowed module replacement during production, avoiding a 8-hour unplanned shutdown and saving $500,000 in lost revenue.
3. Pharmaceutical Batch Process Control: A European biotech manufacturer used FOXBORO FBM212 P0914XL to monitor 32 batch reactor variables (temperature, pressure, pH, level) with mixed signal types. Precision measurement and low drift ensured batch consistency, reducing product rejection rates by 15% and complying with FDA regulations.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Mixed-Signal Environments: Choose FOXBORO FBM212 P0914XL for applications requiring multiple analog signal types (e.g., water treatment plants, refineries)—universal compatibility reduces module count and simplifies inventory.
2. High-Density Input Requirements: Opt for FOXBORO FBM212 P0914XL for sites needing 16+ analog input channels—32-channel density saves panel space and wiring costs compared to lower-density modules.
3. 24/7 Continuous Operations: Select FOXBORO FBM212 P0914XL for critical infrastructure (water treatment, power generation)—hot-swappable design enables maintenance without process interruption.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM212 P0914XL only in Foxboro I/A Series chassis (P0916, P0917XQ); secure the module with the integrated locking lever to prevent disconnection from vibration—loose connections cause signal dropout or measurement errors.
   • Use shielded twisted-pair wiring for all analog signals (maximum distance 1000m for 4-20mA; 500m for voltage/millivolt) and ground shields at the module end to minimize noise.
2. Configuration Notes:
   • Configure signal type (4-20mA, TC, RTD, etc.) per channel group via Foxboro Control Studio before commissioning—incorrect settings will result in invalid data or diagnostic faults.
   • Enable cold-junction compensation for thermocouple channels and lead resistance compensation for RTDs to ensure accurate temperature measurements.
3. Troubleshooting:
   • For erratic signal readings: Check for EMI sources (VFDs, motors) near input wiring, verify signal type configuration, and inspect for group-level isolation faults via I/A Series Workbench.
   • For “Fault” LED activation: Review module diagnostics to identify overrange/underrange conditions, open wires, or short circuits in FOXBORO FBM212 P0914XL.
4. Maintenance:
   • Recalibrate modules annually using precision calibrators (current/voltage source, temperature bath) to maintain ±0.02% accuracy—critical for regulated industries like pharmaceuticals.
   • Backup module configuration to the I/A Series database—essential for rapid replacement of FOXBORO FBM212 P0914XL in case of failure.
   • Stock spare assemblies—lead times for FOXBORO FBM212 P0914XL may exceed 12 weeks for hazardous-location certified units.
