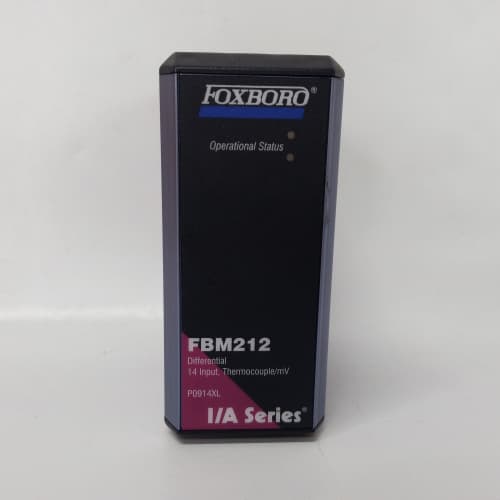

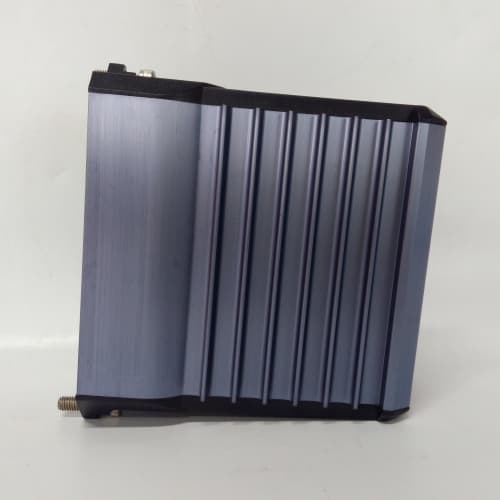

Foxboro FBM212

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM212
• Core Communication Parameters
  • Fieldbus Protocol: PROFIBUS DP (IEC 61158-3, EN 50170)
  • Number of Ports: 2× redundant PROFIBUS DP ports (Master Class 1)
  • Communication Speed: 9.6 kbps ~ 12 Mbps (auto-negotiable)
  • Maximum Nodes per Port: 126 PROFIBUS DP devices (per segment)
  • Redundancy: Hot standby (automatic failover between primary/secondary ports)
  • Cable Compatibility: PROFIBUS DP cable (twisted-pair shielded, AWG 22-18), conforming to EN 50170 specifications
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Bus fault detection (short/open circuit), device health monitoring, communication error logging (cyclic redundancy check/timeout), LED status indicators (per port)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio, PROFIBUS DP Configuration Tool (DPC)
  • Scan Cycle Time: ≤ 1ms (per device, at 12 Mbps)
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Consumption: ≤ 10W (module)
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. High-Speed Redundant PROFIBUS DP Connectivity: FOXBORO FBM212 supports up to 12 Mbps communication speed and dual hot standby ports, ensuring low-latency, uninterrupted data transmission for time-critical applications like automotive assembly line control and packaging machinery.
2. Advanced PROFIBUS Diagnostics: Real-time monitoring of bus faults, device status, and communication errors enables proactive troubleshooting—for example, detecting a broken PROFIBUS cable before it causes production downtime in a food processing plant.
3. Native DCS Integration: Fully compatible with Foxboro I/A Series and Evo™ DCS platforms, the module leverages pre-built PROFIBUS DP drivers and configuration tools to simplify network setup and reduce commissioning time by up to 30%.
4. High Device Capacity: Support for 126 nodes per segment minimizes the number of communication modules needed in large-scale PROFIBUS networks, lowering hardware costs and simplifying network architecture for industrial plants with hundreds of field devices.

Application Fields & Cases

1. Automotive Assembly Line Control: A major automotive manufacturer deployed FOXBORO FBM212 modules in its Foxboro I/A Series DCS to connect 100+ PROFIBUS DP devices (robot controllers, conveyor drives, vision sensors) across two redundant segments in a body assembly line. The 12 Mbps speed ensured real-time robot synchronization, while redundant ports prevented production halts during a primary port failure.
2. Food Processing Plant Packaging Control: A food and beverage facility used FOXBORO FBM212 to integrate PROFIBUS DP-enabled packaging machines (fillers, sealers, labelers) into its Evo™ DCS. Advanced bus fault detection identified a short-circuited cable early, allowing maintenance before packaging line downtime, and reducing product waste by 22%.
3. Power Generation Turbine Auxiliary Control: A combined-cycle power plant integrated FOXBORO FBM212 with PROFIBUS DP drives (cooling fans, pump motors) and vibration sensors in its turbine auxiliary system. The module’s low-latency communication (≤1ms scan cycle) ensured precise motor speed control, improving turbine efficiency by 7% and reducing maintenance costs.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM212 is ideal for Foxboro I/A Series/Evo™ DCS users needing high-speed, redundant PROFIBUS DP connectivity (e.g., automotive manufacturing, food processing). For Emerson DeltaV DCS, choose DeltaV PROFIBUS modules; for Siemens PCS 7/S7-400 systems, select CP 443-5 DP modules.
2. Precautions:
   • Use only PROFIBUS DP-certified cable and connectors (e.g., D-sub 9-pin) to ensure compliance with EN 50170 standards and avoid communication errors.
   • Limit PROFIBUS segment length based on communication speed (e.g., 1000m at 9.6 kbps, 100m at 12 Mbps) and use repeaters for longer distances to maintain signal integrity.
   • Configure redundant ports via Foxboro engineering software to enable automatic failover—test failover functionality after installation to confirm reliability.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly check LED status indicators and diagnostic logs for bus faults or device communication issues to prevent unplanned downtime.
