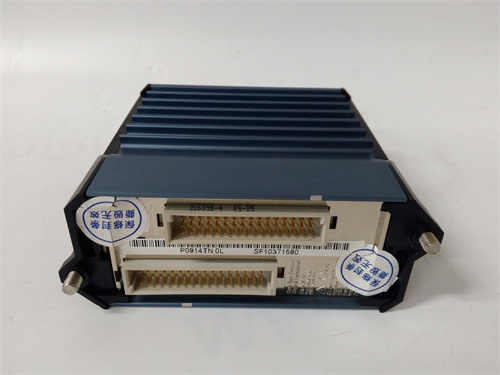

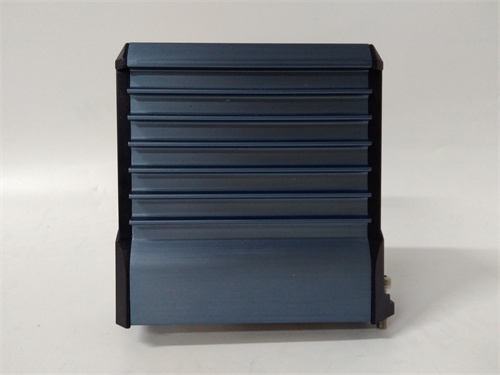

Foxboro FBM211 P0914TN

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM211 Module Specifications

• Number of Channels: 8 isolated thermocouple/millivolt input channels (fully isolated per channel)
• Supported Sensors: Thermocouples (Type J/K/T/E/R/S/B/N), millivolt sensors (0-100mV DC)
• Temperature Range: -270°C to +1820°C (dependent on thermocouple type)
• Millivolt Range: ±100mV DC (configurable per channel)
• Resolution: 0.01°C (thermocouple); 1µV (millivolt)
• Accuracy: ±0.3°C (for Type K at 500°C); ±0.05% of reading (millivolt)
• Cold-Junction Compensation (CJC): Built-in precision CJC sensor (±0.1°C accuracy), automatic compensation per channel
• Isolation: 1500V AC channel-to-channel, 3000V AC channel-to-ground
• Response Time: ≤200ms (90% step response, including CJC)

2.2 P0914TN Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)
• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer)
• Mechanical Features: Hot-swappable module carrier, locking lever for secure engagement, integrated surge/ESD protection
• Power Delivery: 24V DC power distribution from chassis to FBM211 module (via P0914TN interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 0.95kg (FBM211 + P0914TN kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), third-party thermocouples/millivolt sensors, I/A Series Workbench/Control Studio
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. Precision Cold-Junction Compensation: Built-in high-accuracy CJC sensors ensure Foxboro FBM211 P0914TN delivers reliable temperature readings even in fluctuating ambient conditions, critical for high-temperature processes like steel manufacturing and incineration.
2. Multi-Thermocouple Compatibility: Support for all standard thermocouple types (J/K/T/E/R/S/B/N) and millivolt inputs makes Foxboro FBM211 P0914TN a versatile solution for mixed-sensor environments, eliminating the need for multiple specialized modules.
3. Hot-Swappable Plug-and-Play Design: The pre-assembled Foxboro FBM211 P0914TN can be replaced in a live I/A Series chassis without system shutdown, minimizing maintenance downtime for 24/7 operations like power plants and refineries.
4. Robust Isolation & Noise Immunity: 3000V AC channel-to-ground isolation and EMI/RFI filtering protect Foxboro FBM211 P0914TN from electrical interference in harsh industrial environments (e.g., near furnaces or high-voltage equipment), ensuring signal integrity.
5. Seamless I/A Series Integration: The P0914TN interface kit is factory-calibrated for compatibility with I/A Series controllers, enabling zero-configuration deployment and reducing installation errors.

4. Application Fields & Cases

4.1 Application Fields

• Metals & Mining: Steel furnace temperature monitoring, aluminum smelter pot temperature measurement, foundry molten metal temperature sensing
• Chemical Manufacturing: Incinerator exhaust gas temperature control, reactor high-temperature monitoring, catalyst bed temperature measurement
• Power Generation: Boiler firebox temperature sensing, turbine exhaust temperature monitoring, waste-to-energy plant combustion chamber temperature control
• Petrochemical: Refinery heater/furnace temperature monitoring, cracking unit process temperature measurement, LNG regasification temperature tracking

4.2 Typical Cases

1. Steel Mill Furnace Control: A European steel mill deployed 12 Foxboro FBM211 P0914TN assemblies to monitor 96 furnace temperatures using Type S thermocouples. Precision CJC compensation ensured accurate readings (±0.3°C) even with ambient temperature swings of 20°C, improving steel quality consistency by 10%.
2. Waste-to-Energy Plant Incineration Control: A U.S. waste-to-energy facility integrated Foxboro FBM211 P0914TN into its I/A Series DCS to track incinerator exhaust gas temperatures (up to 1200°C) with Type K thermocouples. Hot-swappable functionality allowed module replacement during peak operation, avoiding a 6-hour shutdown and saving $200,000 in lost energy production.
3. Chemical Plant Reactor Monitoring: A Middle Eastern petrochemical plant used Foxboro FBM211 P0914TN to monitor 8 reactor catalyst bed temperatures (Type R thermocouples) and 4 millivolt-level pressure sensors. Multi-sensor compatibility reduced module count by 50% compared to legacy systems, cutting installation costs by $80,000.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Temperature Process Monitoring: Choose Foxboro FBM211 P0914TN for applications requiring thermocouple measurements above 500°C (e.g., steel furnaces, incinerators)—precision CJC ensures reliable data in extreme conditions.
2. Mixed-Sensor Environments: Opt for Foxboro FBM211 P0914TN if your system uses multiple thermocouple types or millivolt sensors—versatile input support reduces module inventory and costs.
3. Fast-Track Installations: Select Foxboro FBM211 P0914TN for plant upgrades or new builds—the pre-assembled interface kit eliminates on-site calibration and cuts installation time by 30-40%.

6.2 Precautions

1. Installation Guidelines:
   • Install Foxboro FBM211 P0914TN only in Foxboro I/A Series chassis (P0916, P0917XQ); secure the module with the integrated locking lever to prevent disconnection from vibration—loose connections cause measurement errors or signal loss.
   • Use thermocouple-compatible extension wires (e.g., Type K wire for Type K thermocouples) to avoid cold-junction errors—standard copper wire will degrade accuracy.
2. Configuration Notes:
   • Configure thermocouple type and millivolt range per channel via Foxboro Control Studio before commissioning—incorrect settings will result in invalid temperature readings.
   • Enable open-wire detection for critical channels to quickly identify broken thermocouples or wiring faults.
3. Troubleshooting:
   • For erratic temperature readings: Check thermocouple extension wire compatibility, verify CJC sensor functionality via diagnostics, and inspect for EMI sources near input wiring.
   • For “Fault” LED activation: Review I/A Series Workbench to identify channel-specific issues (open wire, short circuit, overrange) in Foxboro FBM211 P0914TN.
4. Maintenance:
   • Recalibrate CJC sensors annually using a precision temperature bath to maintain ±0.1°C compensation accuracy.
   • Backup module configuration to the I/A Series database—essential for rapid replacement of Foxboro FBM211 P0914TN in case of failure.
   • Stock spare assemblies—lead times for Foxboro FBM211 P0914TN may exceed 10 weeks for hazardous-location certified units.
