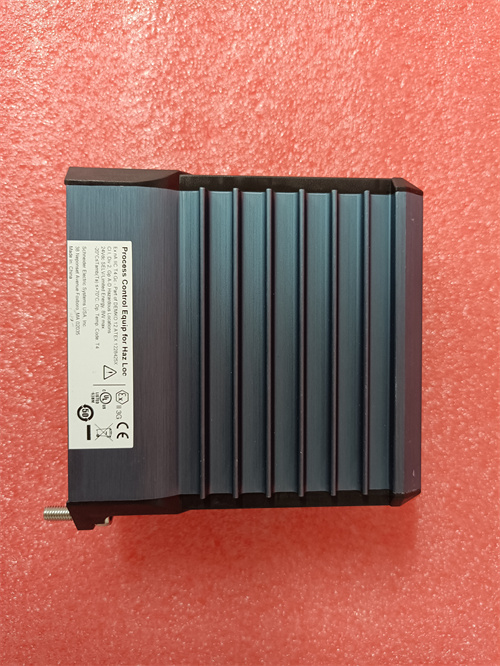

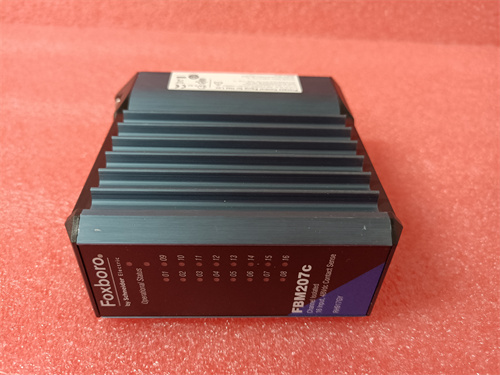

FOXBORO FBM207C

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated analog input channels (single-ended, 4-20mA DC current loop)
• Input Range: 4-20mA DC (configurable for 0-20mA DC via software)
• Resolution: 16-bit (ADC conversion)
• Accuracy: ±0.05% of full scale (20mA) at 25°C; ±0.1% of full scale over operating temperature range (-40°C to +70°C)
• Isolation Rating: 1500V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation)
• Response Time: ≤100ms (90% step response)
• Input Impedance: 250Ω (nominal, for 4-20mA loop completion)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from Foxboro I/A Series DCS backplane), power consumption ≤15W
• Backplane Interface: Foxboro I/A Series DCS I/O bus (compatible with AW51, AW52, and CP60 processors)
• Diagnostic Features: Open-loop detection, overrange/underrange alerts, channel-level fault indication, LED status indicators (power, backplane communication, channel activity), self-test functionality
• Configuration: Software-configurable via Foxboro Control Studio or I/A Series Workbench (input range, scaling, alarm limits)
• Compatibility: Foxboro I/A Series DCS (firmware v8.0+), 4-20mA current loop transmitters/sensors from major manufacturers (Rosemount, Endress+Hauser, Yokogawa)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Foxboro I/A Series DCS I/O chassis (P0916, P0917), hot-swappable (with chassis power on)
• Dimensions: 100mm (W) × 150mm (H) × 30mm (D), Foxboro I/A Series standard form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, CSA, RoHS
• Compatibility: Foxboro I/A Series DCS, 4-20mA current loop field devices (IEC 61158-2 compliant)
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. High Accuracy & Reliability: ±0.05% full-scale accuracy and 16-bit resolution ensure FOXBORO FBM207C delivers precise analog data for critical process control (e.g., chemical reactor temperature monitoring), minimizing measurement error and improving process stability.
2. Enhanced Isolation & Noise Immunity: 3000V AC channel-to-ground isolation and robust EMI/RFI filtering protect FOXBORO FBM207C from electrical interference in harsh industrial environments (e.g., refineries with high electromagnetic noise), ensuring signal integrity.
3. Hot-Swappable Design: FOXBORO FBM207C can be replaced in a live I/A Series DCS chassis without system shutdown, reducing maintenance downtime for 24/7 operations like power generation plants or chemical refineries.
4. Comprehensive Diagnostics: Built-in open-loop detection, overrange alerts, and self-test functionality enable predictive maintenance, allowing operators to identify and resolve issues before they impact production—critical for mission-critical processes.
5. Seamless Foxboro DCS Integration: Native compatibility with I/A Series DCS and software-configurable parameters eliminate the need for adapters or custom programming, simplifying installation, commissioning, and system expansion.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery process control (pressure, temperature, flow transmitter inputs), pipeline monitoring, wellhead sensor data acquisition
• Chemical Manufacturing: Reactor temperature/pressure monitoring, batch process dosing system inputs, mixer speed sensor data
• Power Generation: Turbine fuel flow/exhaust temperature monitoring, boiler water level/pressure inputs, generator excitation control sensor data
• Water/Wastewater Treatment: Tank level/pH transmitter inputs, pump pressure monitoring, chemical dosing system sensor data

4.2 Typical Cases

1. Chemical Plant Reactor Monitoring: A European petrochemical plant deployed FOXBORO FBM207C modules in I/A Series DCS to monitor 128 temperature and pressure transmitters across 8 reactor units. The module’s high accuracy ensured precise process control, reducing batch variability by 18% and improving product quality yield by 12%.
2. Gas Turbine Power Plant Control: A U.S. combined-cycle power plant used FOXBORO FBM207C to acquire fuel flow, exhaust temperature, and compressor pressure sensor inputs for 4 gas turbines. The hot-swappable design allowed module replacement during peak power demand, avoiding costly downtime and maintaining grid stability.
3. Oil Refinery Process Monitoring: A Middle Eastern oil refinery integrated FOXBORO FBM207C into I/A Series DCS to monitor 192 4-20mA transmitter signals (pressure, level, flow) across distillation columns and storage tanks. The module’s 3000V AC isolation protected against ground loops and electrical surges, reducing signal errors by 90% and improving process safety.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Foxboro I/A Series DCS Compatibility: Choose FOXBORO FBM207C for I/A Series DCS installations—its native integration and software configurability eliminate compatibility issues and reduce setup time compared to generic modules.
2. Critical Process Control: Opt for FOXBORO FBM207C for applications requiring ±0.05% accuracy (e.g., chemical reactors, turbine control)—standard AI modules lack the precision for high-stakes processes.
3. Hazardous/Extreme Environments: Select FOXBORO FBM207C for Class 1 Div 2 hazardous locations or -40°C to +70°C operating temperatures (e.g., arctic oil fields, desert refineries)—its rugged design and certification ensure reliable operation.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM207C in a Foxboro I/A Series I/O chassis only; ensure proper backplane termination and chassis ventilation to prevent overheating in high-temperature environments.
   • Use shielded twisted-pair cables for 4-20mA inputs (maximum distance 1000m) and ground the cable shield at the field device end to minimize electromagnetic interference.
2. Configuration Notes:
   • Set input range (4-20mA/0-20mA) and scaling via Foxboro Control Studio before commissioning—mismatched settings will cause incorrect data interpretation.
   • Configure alarm limits (overrange/underrange) for critical channels to enable real-time alerts and predictive maintenance.
3. Troubleshooting:
   • For open-loop faults: Check field device power supply, verify wiring continuity (no breaks in the 4-20mA loop), and inspect transmitter calibration.
   • For inaccurate readings: Ensure proper grounding (no ground loops), check for EMI/RFI interference from nearby VFDs/motors, and recalibrate the module if necessary.
4. Maintenance:
   • Inspect module connectors quarterly (especially in vibration-prone areas) to prevent loose terminals and signal drift.
   • Backup module configuration to I/A Series Workbench for rapid replacement in case of failure—critical for 24/7 process operations.
   • Stock spare FOXBORO FBM207C modules—lead times for Foxboro DCS components may exceed 12 weeks for hazardous-location certified units.
