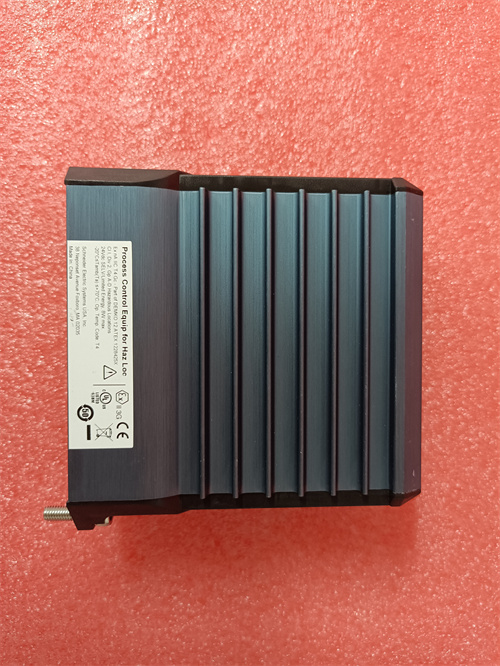

FOXBORO FBM207B

Description

1. Product Overview

2. Product Parameters

2.1 Core Analog Output Specifications

• Number of Channels: 8 fully isolated analog output channels (independent isolation per channel)
• Output Type: 4-20mA DC current loop (sink/source configurable per channel; 0-20mA DC optional via software)
• Resolution: 16-bit (0.00125% of full scale)
• Accuracy: ±0.015% of full scale (25°C); ±0.03% of full scale (-40°C to +70°C)
• Isolation: 2000V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation per IEC 61010)
• Load Capacity: Up to 1000Ω (at 24V DC supply) – 33% higher than standard FBM207
• Response Time: ≤5ms (90% step response from 4mA to 20mA)
• Output Drift: ≤0.005% of full scale per °C (temperature stability)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from I/A Series chassis backplane), power consumption ≤10W
• Backplane Interface: Foxboro I/A Series high-speed bus (100 Mbps data transfer, compatible with P0973JX/CP70 controllers)
• Diagnostic Features: Overcurrent protection, open-loop detection, short-circuit protection, LED status indicators (Power, OK, Fault, Channel Activity), remote diagnostics via I/A Series Workbench
• Configuration: Software-configurable via Foxboro Control Studio (output range, sink/source mode, alarm thresholds)
• Compatibility: Foxboro I/A Series chassis (P0916, P0917XQ), third-party 4-20mA actuators/valves/VSDs, HART-enabled field devices (pass-through support)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Foxboro I/A Series standard module (100mm W × 150mm H × 30mm D)
• Weight: 0.85kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61508 SIL 2, IEC 61010-1, RoHS
• MTBF: ≥1,500,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Enhanced Precision & Stability: ±0.015% full-scale accuracy and ultra-low temperature drift make FOXBORO FBM207B ideal for critical control loops (e.g., LNG cryogenic process control, pharmaceutical batch reactors), minimizing process variability and improving product quality consistency.
2. Extended Load Capacity: 1000Ω load capability allows FOXBORO FBM207B to drive long-distance 4-20mA loops (up to 1500m) and high-resistance actuators without signal boosters, reducing system complexity and installation costs.
3. Full Channel Isolation: 2000V AC channel-to-channel isolation protects FOXBORO FBM207B from cross-talk and voltage surges in noisy industrial environments (e.g., near motors or VFDs), ensuring reliable signal output even in harsh conditions.
4. Hot-Swappable Design: FOXBORO FBM207B can be replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like refineries and power plants.
5. Comprehensive Diagnostics: Built-in overcurrent/short-circuit protection and open-loop detection enable operators to quickly identify faults in field devices or wiring, reducing troubleshooting time by up to 50% compared to basic AO modules.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery distillation unit control valve positioning, LNG plant cryogenic valve actuation, pipeline flow control via VSDs
• Chemical Manufacturing: Reactor pressure/temperature control valve signals, batch process agitator speed regulation, polymer extrusion die temperature control
• Power Generation: Gas/steam turbine fuel flow actuator control, boiler damper positioning, wind turbine pitch control
• Pharmaceutical: Sterile batch reactor valve control, bioreactor pH adjustment actuators, cleanroom pressure regulation systems

4.2 Typical Cases

1. LNG Plant Cryogenic Control: A Qatari LNG plant deployed FOXBORO FBM207B modules to control 64 cryogenic valve positioners in liquefaction trains. The module’s ±0.015% accuracy and low drift ensured precise temperature control (-162°C), reducing LNG loss by 2% and improving plant efficiency.
2. Gas Turbine Power Plant Control: A U.S. combined-cycle power plant integrated FOXBORO FBM207B into its I/A Series DCS to regulate fuel flow actuators for 8 gas turbines. Extended load capacity (1000Ω) allowed direct connection to long-distance actuators (1200m) without signal repeaters, cutting installation costs by $150,000.
3. Pharmaceutical Batch Reactor Control: A European biotech manufacturer used FOXBORO FBM207B to control 8 precision valves in sterile bioreactors. The module’s high accuracy and stability reduced batch-to-batch variability by 15%, ensuring compliance with FDA regulatory requirements.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Precision Control Applications: Choose FOXBORO FBM207B for critical processes (e.g., LNG cryogenic control, pharmaceutical batch manufacturing) requiring ±0.015% accuracy and low temperature drift.
2. Long-Distance 4-20mA Loops: Opt for FOXBORO FBM207B for applications with loop lengths >750m or high-resistance actuators—1000Ω load capacity eliminates the need for signal boosters.
3. Safety-Critical Systems: Select FOXBORO FBM207B for SIL 2-compliant applications (e.g., turbine fuel control, reactor safety valves) to meet regulatory safety requirements.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM207B in Foxboro I/A Series chassis only (P0916, P0917XQ); ensure proper chassis grounding to minimize EMI interference and maintain signal accuracy.
   • Use shielded twisted-pair wiring for 4-20mA output loops (maximum 1500m) and ground shields at the field device end to prevent noise-induced signal drift.
2. Configuration Notes:
   • Configure sink/source mode per channel via Foxboro Control Studio to match field device requirements—incorrect settings will damage actuators or cause signal failure.
   • Enable overcurrent/short-circuit protection for all channels to safeguard FOXBORO FBM207B and connected devices from electrical faults.
3. Troubleshooting:
   • For erratic output signals: Check for EMI sources (VFDs, high-voltage cables) near wiring, verify load resistance (≤1000Ω), and inspect module connectors for corrosion.
   • For “Fault” LED activation: Review I/A Series Workbench diagnostics to identify open loops, short circuits, or overcurrent conditions in FOXBORO FBM207B.
4. Maintenance:
   • Recalibrate output channels annually (or after 12,000 operating hours) using a precision current calibrator to maintain ±0.015% accuracy.
   • Backup module configuration to the I/A Series database for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM207B modules—lead times for enhanced AO modules may exceed 12 weeks for hazardous-location certified units.
