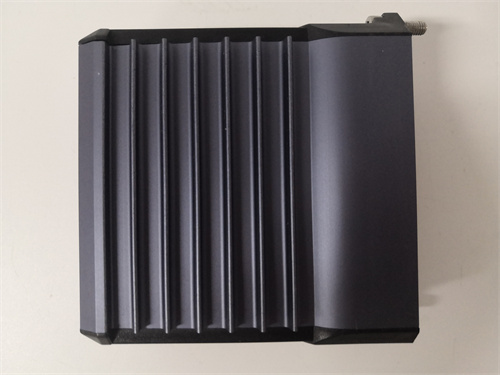

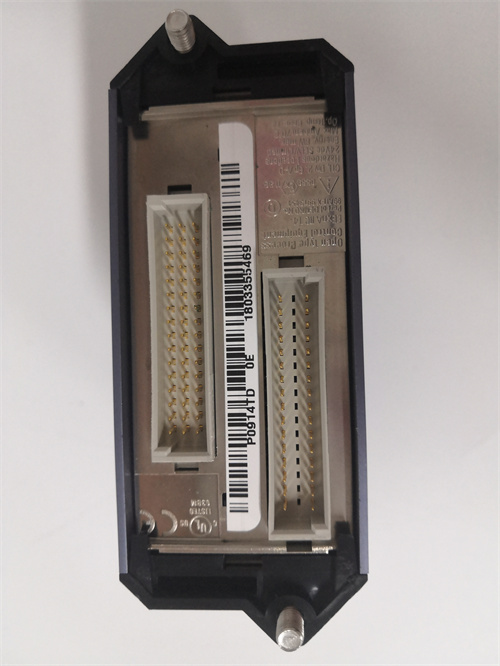

FOXBORO FBM207 P0914TD

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM207 Module Specifications

• Number of Channels: 8 isolated analog output channels (fully isolated per channel)
• Output Type: 4-20mA DC current loop (sink/source configurable per channel)
• Output Range: 4-20mA DC (configurable to 0-20mA DC via software)
• Resolution: 16-bit (0.00125% of full scale)
• Accuracy: ±0.02% of full scale (25°C); ±0.05% of full scale (-40°C to +70°C)
• Isolation: 1500V AC channel-to-channel, 3000V AC channel-to-ground
• Load Capacity: Up to 750Ω (at 24V DC supply)
• Response Time: ≤10ms (90% step response from 4mA to 20mA)

2.2 P0914TD Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)
• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer)
• Mechanical Features: Hot-swappable module carrier, locking lever for secure engagement, integrated ESD/surge protection
• Power Delivery: 24V DC power distribution from chassis to FBM207 module (via P0914TD interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 0.9kg (FBM207 + P0914TD kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), third-party 4-20mA actuators/valves/positioners, I/A Series Workbench/Control Studio
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. Ultra-Precise Output Control: ±0.02% full-scale accuracy and 16-bit resolution enable FOXBORO FBM207 P0914TD to deliver precise 4-20mA signals for critical control applications (e.g., pharmaceutical batch reactors, LNG cryogenic valve control), minimizing process variability and improving product quality.
2. Full Channel Isolation: Each channel of FOXBORO FBM207 P0914TD is independently isolated (1500V AC channel-to-channel), preventing cross-talk and protecting the module from voltage spikes in noisy industrial environments (e.g., near VFDs or high-voltage equipment).
3. Hot-Swappable Plug-and-Play Design: The pre-assembled FOXBORO FBM207 P0914TD can be replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like refineries and power plants.
4. High Load Capacity: Up to 750Ω load capability allows FOXBORO FBM207 P0914TD to drive long-distance 4-20mA loops (up to 1000m) and high-resistance actuators, eliminating the need for signal boosters or repeaters.
5. Seamless I/A Series Integration: The P0914TD interface kit is factory-calibrated for compatibility with I/A Series controllers, ensuring zero configuration time and reliable communication between the module and DCS.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery control valve positioning, pipeline flow control actuator signals, wellhead choke valve regulation
• Chemical Manufacturing: Reactor temperature/pressure control via valve positioners, batch process agitator speed control, polymer extrusion die temperature regulation
• Power Generation: Turbine governor fuel flow control, boiler damper positioning, cooling tower fan speed regulation
• Water/Wastewater: Treatment plant valve control for flow/pressure regulation, pump speed control via variable frequency drives (VFDs), sludge thickener actuator signals

4.2 Typical Cases

1. Refinery Distillation Unit Control: A Middle Eastern oil refinery deployed 20 FOXBORO FBM207 P0914TD assemblies to control 160 control valves across 8 distillation units. The ±0.02% accuracy ensured precise valve positioning, reducing energy consumption by 8% and improving product separation efficiency.
2. Power Plant Turbine Governor System: A U.S. combined-cycle power plant integrated FOXBORO FBM207 P0914TD into its turbine control system to send 4-20mA signals to fuel flow actuators. Hot-swappable functionality allowed module replacement during peak power generation, avoiding a potential 6-hour shutdown and saving $250,000 in lost revenue.
3. Chemical Plant Reactor Control: A European pharmaceutical plant used FOXBORO FBM207 P0914TD to control 8 precision control valves in a sterile batch reactor. The 16-bit resolution and low drift ensured consistent reagent dosing, reducing batch variability by 12% and improving FDA compliance.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Precision Analog Control Applications: Choose FOXBORO FBM207 P0914TD for critical control loops (e.g., reactor temperature, turbine fuel flow) requiring ±0.02% accuracy and low drift—its high precision outperforms standard AO modules.
2. Long-Distance 4-20mA Loops: Opt for FOXBORO FBM207 P0914TD for applications with loop lengths >500m or high-resistance actuators—750Ω load capacity eliminates signal degradation and the need for repeaters.
3. 24/7 Continuous Operations: Select FOXBORO FBM207 P0914TD for refineries, power plants, or chemical facilities requiring zero downtime—hot-swappable design enables maintenance without process interruption.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM207 P0914TD only in Foxboro I/A Series chassis (P0916, P0917XQ); use the integrated locking lever to secure the module—loose connections cause signal dropout or communication errors.
   • Use shielded twisted-pair wiring for 4-20mA output loops (maximum 1000m) and ground shields at the actuator end to minimize EMI interference with FOXBORO FBM207 P0914TD.
2. Configuration Notes:
   • Configure output range (4-20mA/0-20mA) and sink/source mode per channel via Foxboro Control Studio before commissioning—mismatched settings will damage field actuators.
   • Calibrate output signals against a precision current meter during startup to verify accuracy (especially for critical control loops).
3. Troubleshooting:
   • For erratic output signals: Check for EMI sources (VFDs, high-voltage cables) near output wiring, verify load resistance (≤750Ω), and inspect the P0914TD backplane connector for corrosion.
   • For “Fault” LED activation: Review I/A Series Workbench diagnostics to identify overcurrent conditions or channel isolation faults in FOXBORO FBM207 P0914TD.
4. Maintenance:
   • Inspect the P0914TD locking lever and backplane connector quarterly (especially in vibration-prone areas) to prevent module disconnection.
   • Recalibrate output channels annually (or after 10,000 operating hours) to maintain ±0.02% accuracy—critical for precision control applications.
   • Stock spare assemblies—lead times for FOXBORO FBM207 P0914TD may exceed 10 weeks for hazardous-location certified units.
