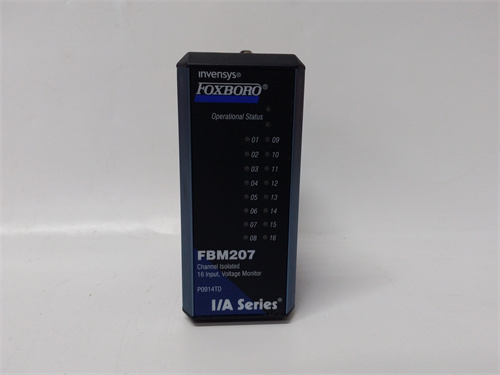

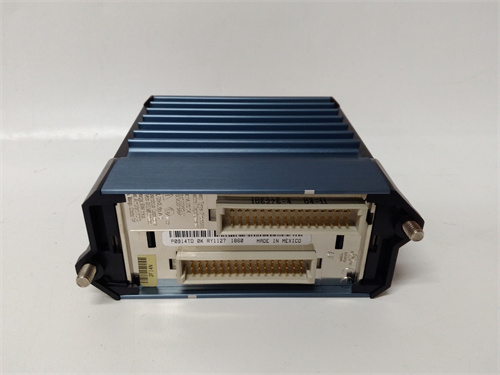

FOXBORO FBM207

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM207
• Core Digital Output Parameters
  • Output Channels: 32 isolated channels (4 groups of 8 channels)
  • Output Voltage: 24V DC (18-30V DC operating range)
  • Output Type: Sinking (NPN) / Sourcing (PNP) configurable per channel group
  • Output Current: 1A per channel (continuous), 2A per channel (peak for 1s)
  • Response Time: ≤ 1ms (on/off transition)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground (optical isolation)
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Short-circuit detection, overcurrent protection, open-load detection, LED status indicators (per channel group)
  • Communication: Foxboro I/A Series backplane (Fieldbus H1 optional for remote I/O)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 15W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. High-Density Channel Design: FOXBORO FBM207 integrates 32 digital output channels into a single module, reducing chassis space requirements by up to 75% compared to low-density modules and lowering overall system hardware costs for large-scale control applications.
2. Dual Output Configuration Flexibility: Support for both sinking (NPN) and sourcing (PNP) outputs per channel group eliminates the need for separate modules for different actuator types, simplifying system design and inventory management.
3. Comprehensive Protection Mechanisms: Built-in short-circuit, overcurrent, and open-load protection prevents damage to the module and connected field devices (e.g., solenoid valves, contactors), minimizing unplanned downtime and maintenance costs.
4. Hot-Swap & Real-Time Diagnostics: Hot-swappable installation allows module replacement without DCS shutdown, while channel-level diagnostics and LED indicators enable rapid fault detection and troubleshooting—critical for mission-critical processes like oil refinery control and power plant turbine regulation.

Application Fields & Cases

1. Chemical Plant Actuator Control: A petrochemical facility deployed FOXBORO FBM207 modules in its Foxboro I/A Series DCS to control 32 solenoid valves and motor contactors per module in a batch reactor system. The module’s overcurrent protection prevented valve damage from electrical faults, while hot-swappable design allowed maintenance during production runs, avoiding costly batch interruptions.
2. Power Generation Boiler Control: A coal-fired power plant used FOXBORO FBM207 to switch combustion air dampers, fuel valves, and indicator lights in its boiler control system. The module’s fast response time (≤1ms) ensured precise synchronization of actuator operations, improving boiler efficiency and reducing emissions by 10%.
3. Water Treatment Plant Pump Control: A municipal wastewater treatment facility integrated FOXBORO FBM207 into its Foxboro Evo™ DCS to control 32 submersible pumps and valve actuators. The module’s sinking/sourcing flexibility accommodated mixed actuator types, while open-load detection alerted operators to pump failures before system downtime occurred, reducing maintenance costs by 25%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM207 is ideal for Foxboro I/A Series/Evo™ DCS users needing high-density digital output with dual sinking/sourcing support and comprehensive protection (e.g., chemical, power generation, oil & gas). For Emerson DeltaV DCS, choose DeltaV DO modules (with multiple modules for high-density needs); for Siemens S7-400 systems, select S7-400 DO modules (with expansion racks).
2. Precautions:
   • Configure output type (sinking/sourcing) per channel group via Foxboro engineering software to match connected actuators—incorrect settings will cause device damage or signal failure.
   • Use shielded cables for output wiring to minimize EMI interference, especially in high-noise environments (e.g., near motors, switchgear, or VFDs).
   • Verify compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) before installation—older firmware may require updates for full functionality.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Ensure connected loads do not exceed the module’s output current rating (1A continuous/2A peak) to avoid overheating and premature failure.
