FOXBORO FBM206 P0916CQ

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM206 Module Specifications

• Number of Channels: 32 isolated discrete output channels (8 channels per isolated group)
• Output Type: Form C electromechanical relays (SPDT: Single Pole Double Throw)
• Contact Rating: 5A @ 250V AC / 5A @ 30V DC (resistive load); 2A @ 250V AC (inductive load)
• Isolation: 1500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground
• Response Time: ≤10ms (on/off transition)
• Operating Cycles: ≥100,000,000 mechanical cycles; ≥100,000 electrical cycles (full load)

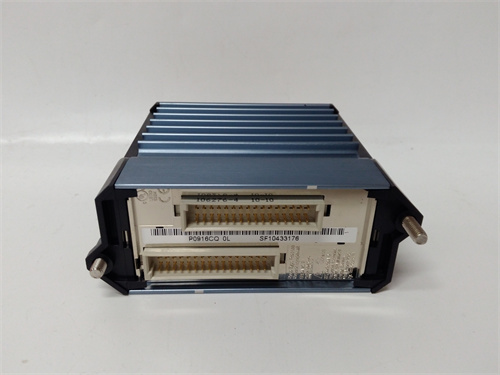

2.2 P0916CQ Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)
• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer)
• Mechanical Features: Hot-swappable module carrier, locking lever for secure chassis engagement, integrated surge protection
• Power Delivery: 24V DC power distribution from chassis to FBM206 module (via P0916CQ interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 1.1kg (FBM206 + P0916CQ kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), third-party relays/valves/pumps (5A max load), I/A Series Workbench/Control Studio
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. High-Density Relay Outputs: 32 isolated SPDT relay channels in a single module maximize I/O density, while the FOXBORO FBM206 P0916CQ assembly’s compact design reduces chassis footprint by 40% compared to low-density DO modules—ideal for space-constrained control panels.
2. Robust Isolation & Protection: 3000V AC channel-to-ground isolation and surge protection in the P0916CQ interface shield the module and connected field devices from voltage spikes and EMI/RFI interference, ensuring reliable operation in harsh industrial environments.
3. Hot-Swappable Plug-and-Play Design: The pre-assembled FOXBORO FBM206 P0916CQ can be replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like refineries and power plants.
4. Long-Life Relay Contacts: ≥100 million mechanical cycles and ≥100,000 electrical cycles ensure FOXBORO FBM206 P0916CQ delivers extended service life, reducing replacement frequency and maintenance costs in critical applications.
5. Seamless I/A Series Integration: The P0916CQ interface kit is factory-calibrated for compatibility with I/A Series controllers and chassis, eliminating on-site configuration and ensuring plug-and-play functionality out of the box.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery emergency shutdown (ESD) valve control, pipeline pump/motor actuation, storage tank level control valve switching
• Chemical Manufacturing: Batch reactor valve actuation, agitator motor startup/shutdown, safety relief valve triggering
• Power Generation: Boiler burner ignition control, turbine cooling fan actuation, transformer tap changer switching, emergency shutdown relay activation
• Manufacturing: Automotive assembly line conveyor motor control, packaging machine actuator switching, robotic cell safety gate control

4.2 Typical Cases

1. Refinery ESD System Control: A Gulf Coast oil refinery deployed 15 FOXBORO FBM206 P0916CQ assemblies to control 480 emergency shutdown valves across 10 process units. The high-density design reduced chassis requirements by 35%, while hot-swappable functionality allowed module replacement during production, avoiding unplanned shutdowns and saving $400,000 in lost revenue.
2. Power Plant Boiler Control: A European coal-fired power plant integrated FOXBORO FBM206 P0916CQ into its I/A Series DCS to control burner ignition, damper positioning, and feedwater pump relays. Robust isolation protected the module from voltage spikes caused by motor startup, reducing downtime due to electrical faults by 50%.
3. Chemical Batch Reactor Control: A U.S. pharmaceutical plant used FOXBORO FBM206 P0916CQ to actuate 32 valves in a sterile batch reactor system. The pre-assembled plug-and-play design cut installation time by 40% compared to separate modules, while long-life relay contacts reduced maintenance frequency from quarterly to annual, lowering operational costs.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Density Discrete Output Requirements: Choose FOXBORO FBM206 P0916CQ for applications needing 16+ relay outputs—its 32-channel density reduces chassis and wiring costs compared to 16-channel alternatives.
2. Emergency Shutdown/Safety Systems: Opt for FOXBORO FBM206 P0916CQ for ESD or SIS applications—robust isolation, fast response time, and hot-swappable design ensure maximum reliability and minimal downtime.
3. Fast-Track Installations: Select FOXBORO FBM206 P0916CQ for plant upgrades or new builds—the pre-assembled interface kit eliminates on-site configuration and cuts installation time by 30-40%.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM206 P0916CQ only in Foxboro I/A Series chassis (P0916, P0917XQ); secure the module with the integrated locking lever to prevent disconnection from vibration—loose connections cause output failure or erratic device actuation.
   • Do not exceed the 5A contact rating (resistive load) or 2A inductive load rating—overloading will damage relay contacts and void the warranty.
2. Configuration Notes:
   • Configure output fault detection (open/short circuit) via Foxboro Control Studio before commissioning—critical for identifying failed valves/pumps connected to FOXBORO FBM206 P0916CQ.
   • Map output channels to field devices in the DCS database to ensure proper actuation sequencing (e.g., ESD valve priority) and avoid process upsets.
3. Troubleshooting:
   • For failed output actuation: Check relay contact continuity with a multimeter, verify input voltage to the P0916CQ interface, and inspect field device wiring for short circuits.
   • For erratic output behavior: Ensure the module is properly grounded, check for EMI sources (VFDs, motors) near output wiring, and verify isolation between channel groups.
4. Maintenance:
   • Inspect relay contacts annually (or after 100,000 electrical cycles) for wear—replace the module if contact resistance exceeds 100Ω to prevent failed actuation.
   • Backup module configuration to the I/A Series database—essential for rapid replacement of FOXBORO FBM206 P0916CQ in case of failure.
   • Stock spare assemblies—lead times for FOXBORO FBM206 P0916CQ may exceed 10 weeks for hazardous-location certified units.
