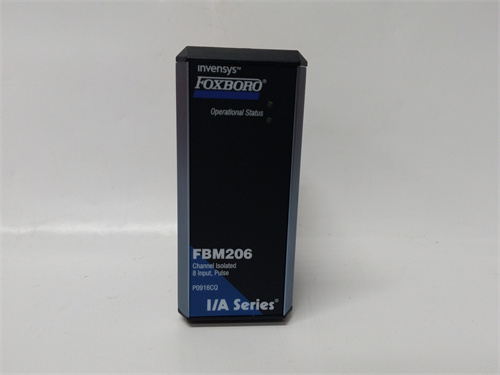

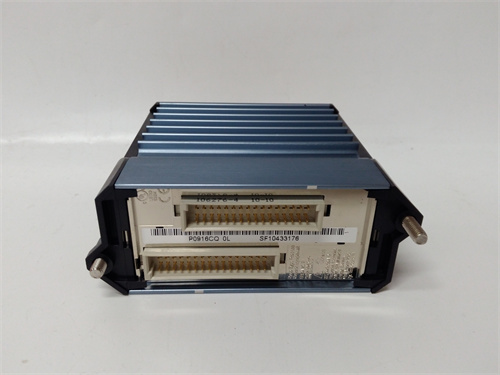

FOXBORO FBM206

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM206
• Core Digital Input Parameters
  • Input Channels: 32 isolated channels (4 groups of 8 channels)
  • Input Voltage: 24V DC (18-30V DC operating range)
  • Input Type: Sinking (NPN) / Sourcing (PNP) configurable per channel group
  • Response Time: ≤ 1ms (filtered mode), ≤ 10µs (fast mode)
  • Input Current: 4mA (typical) at 24V DC
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground (optical isolation)
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Open-circuit detection, short-circuit detection, overvoltage alerts, LED status indicators (per channel group)
  • Communication: Foxboro I/A Series backplane (Fieldbus H1 optional for remote I/O)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 12W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. High-Density Isolated Channels: FOXBORO FBM206 packs 32 digital input channels into a single module, reducing chassis space requirements by up to 75% compared to low-density modules and lowering overall system hardware costs for large-scale discrete signal monitoring.
2. Dual Input Configuration Flexibility: Support for both sinking (NPN) and sourcing (PNP) inputs per channel group eliminates the need for separate modules for different sensor types, simplifying system design and inventory management.
3. Comprehensive Diagnostics: Open-circuit, short-circuit, and overvoltage detection enable rapid fault identification, reducing mean time to repair (MTTR) and minimizing unplanned downtime in critical applications like power plant safety interlocks.
4. Hot-Swappable Design: The module supports hot-swappable replacement without DCS shutdown, allowing maintenance during continuous operation—essential for mission-critical processes such as oil refinery pipeline monitoring and chemical plant batch control.

Application Fields & Cases

1. Oil & Gas Pipeline Safety Monitoring: A midstream oil company deployed FOXBORO FBM206 modules in its Foxboro I/A Series DCS to monitor 32 discrete signals (valve position switches, pressure relief sensors) per module along a 500km pipeline. The high-density design reduced chassis footprint by 60%, while optical isolation protected against electrical interference from pipeline pumps and motors.
2. Power Generation Turbine Safety Interlocks: A combined-cycle power plant used FOXBORO FBM206 to acquire discrete signals from turbine safety interlocks (overspeed switches, vibration sensors, emergency stop buttons). The module’s fast response time (≤10µs) ensured immediate detection of critical faults, triggering safety shutdowns to prevent equipment damage.
3. Chemical Plant Batch Processing Discrete Monitoring: A petrochemical facility integrated FOXBORO FBM206 into its Foxboro Evo™ DCS to monitor discrete inputs from reactor lid switches, agitator motor status sensors, and level limit switches. Diagnostic alerts identified a faulty level switch early, allowing maintenance before batch overflow and reducing waste by 20%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM206 is ideal for Foxboro I/A Series/Evo™ DCS users needing high-density digital input with dual sinking/sourcing support and comprehensive diagnostics (e.g., oil & gas, power generation). For Emerson DeltaV DCS, choose DeltaV DI modules (with multiple modules for high-density needs); for Siemens S7-400 systems, select S7-400 DI modules (with expansion racks).
2. Precautions:
   • Configure input type (sinking/sourcing) per channel group via Foxboro engineering software to match connected sensors—incorrect settings will cause signal detection failures or module damage.
   • Use shielded twisted-pair cables for digital input wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near motors, switchgear, or VFDs).
   • Verify compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) before installation—older firmware may require updates for full functionality.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly check LED status indicators and diagnostic logs for open-circuit/short-circuit alerts to identify sensor/wiring faults before they impact process control.
