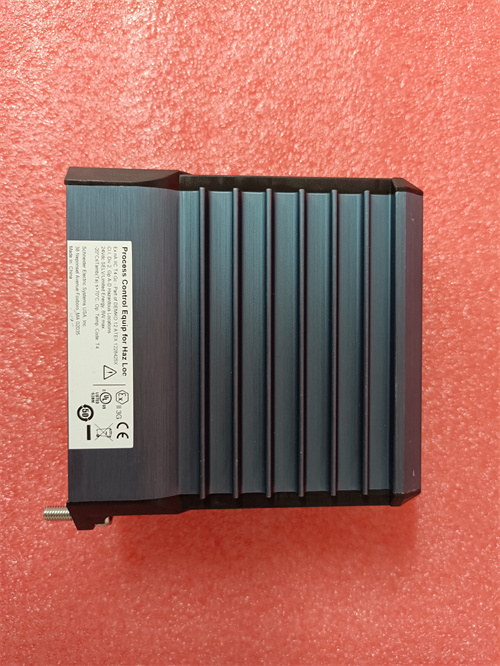

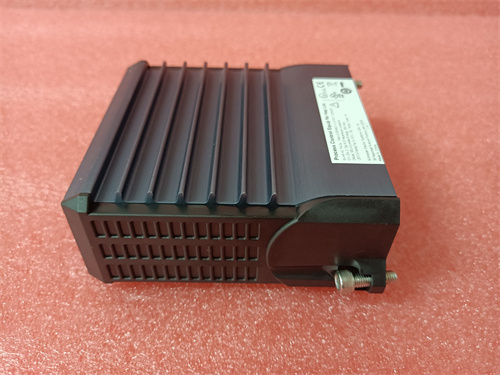

FOXBORO FBM205

Description

1. Product Overview

2. Product Parameters

2.1 Core Discrete Input Specifications

• Number of Channels: 32 isolated single-ended discrete input channels (8 channels per isolated group)
• Input Voltage Range: 24V DC (18-30V DC operating range), configurable for dry contact (no voltage) or wet contact (24V DC) inputs
• Input Type: Sinking (NPN) or sourcing (PNP) configurable per channel group
• Isolation: 1500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground
• Response Time: ≤1ms (on/off transition) for wet contacts; ≤5ms for dry contacts
• Input Current: 5mA typical (24V DC wet contact); 1mA maximum (dry contact)
• Logic Thresholds: Low = 0-5V DC, High = 18-30V DC (wet contact); Open = Low, Closed = High (dry contact)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from I/A Series chassis backplane), power consumption ≤15W
• Backplane Interface: Foxboro I/A Series high-speed bus (100 Mbps data transfer)
• Diagnostic Features: Channel-level open/short circuit detection, overvoltage/undervoltage alerts, LED status lights (Power, OK, Fault, Channel Activity), remote diagnostics via I/A Series Workbench
• Configuration: Software-configurable via Foxboro Control Studio (input type, threshold levels, alarm settings)
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), I/A Series chassis (P0916, P0917XQ), third-party discrete sensors/switches (24V DC or dry contact)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, random vibration)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Foxboro I/A Series standard module (fits all I/A Series chassis slots)
• Dimensions: 100mm (W) × 150mm (H) × 30mm (D)
• Weight: 0.9kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• MTBF: ≥1,500,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. High Channel Density & Flexibility: 32 isolated channels (8 per group) in a single module maximize I/O density, while configurable wet/dry contact and sinking/sourcing inputs make FOXBORO FBM205 compatible with nearly all industrial discrete sensors and switches—reducing the need for multiple module types.
2. Ultra-Fast Response Time: ≤1ms transition detection for wet contacts ensures FOXBORO FBM205 captures critical safety signals (e.g., emergency stops, pressure trips) with minimal latency, making it ideal for safety instrumented systems (SIS) and interlock control.
3. Hot-Swappable Design: FOXBORO FBM205 can be installed or replaced in a live I/A Series chassis without system shutdown, eliminating maintenance downtime for 24/7 operations like oil refining and power generation.
4. Comprehensive Diagnostics: Built-in open/short circuit detection and remote monitoring enable operators to quickly identify faulty wiring or failed field devices, reducing troubleshooting time by up to 60% compared to basic discrete input modules.
5. Robust Noise Immunity: 3000V AC channel-to-ground isolation and EMI/RFI filtering (per EN 61326) protect FOXBORO FBM205 from electrical interference in harsh industrial environments (e.g., near motors, VFDs), ensuring reliable signal capture even in noisy conditions.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery safety interlock monitoring (pressure relief valve status, emergency shutdown switches), pipeline valve position feedback, wellhead pump status detection
• Chemical Manufacturing: Reactor safety trip monitoring (high-temperature/high-pressure switches), batch process valve position feedback, agitator motor status detection
• Power Generation: Turbine protection system input (vibration trips, overspeed switches), boiler safety interlocks (low water level, flame detection), transformer temperature switch monitoring
• Manufacturing: Automotive assembly line limit switch input, packaging machine sensor feedback, robotic cell safety interlock monitoring

4.2 Typical Cases

1. Refinery Safety Interlock System: A Middle Eastern oil refinery deployed FOXBORO FBM205 modules to monitor 256 safety interlock signals (pressure relief valves, emergency shutdown switches) across 8 process units. High channel density reduced chassis requirements by 40%, while fast response time ensured critical trip signals were detected within 1ms, preventing a potential explosion in a crude storage area.
2. Power Plant Turbine Protection: A U.S. combined-cycle power plant integrated FOXBORO FBM205 into its turbine SIS to capture vibration trip, overspeed, and emergency stop signals. Comprehensive diagnostics identified a faulty vibration switch wiring issue before it caused a false turbine shutdown, saving $300,000 in lost generation.
3. Chemical Plant Batch Process Control: A European pharmaceutical plant used FOXBORO FBM205 to track 32 valve position feedback signals in a sterile batch reactor system. Configurable wet/dry contact inputs eliminated the need for additional modules, while noise immunity ensured reliable signal capture near high-power agitator motors.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Density Discrete Input Requirements: Choose FOXBORO FBM205 for applications needing 16+ discrete input channels—its 32-channel density reduces chassis and wiring costs compared to 16-channel modules.
2. Safety Instrumented Systems (SIS): Opt for FOXBORO FBM205 for critical interlock and trip monitoring (e.g., turbine protection, refinery safety)—fast response time and comprehensive diagnostics ensure reliable safety signal capture.
3. Noisy Industrial Environments: Select FOXBORO FBM205 for installations near motors, VFDs, or high-voltage equipment—robust noise immunity and isolation prevent signal interference.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM205 in Foxboro I/A Series chassis only (P0916, P0917XQ); ensure proper chassis grounding to minimize electromagnetic interference (EMI) and maintain signal reliability.
   • Use shielded twisted-pair wiring for discrete signals (maximum distance 500m) and ground shields at the module end for dry contact inputs to reduce noise.
2. Configuration Notes:
   • Configure input type (wet/dry, sinking/sourcing) per channel group via Foxboro Control Studio before commissioning—mismatched settings will cause incorrect signal detection.
   • Enable open/short circuit detection for critical safety signals to quickly identify wiring faults or failed field devices.
3. Troubleshooting:
   • For incorrect signal readings: Verify input voltage (18-30V DC for wet contacts), check wiring polarity (sinking/sourcing), and inspect for EMI sources near input cables.
   • For “Fault” LED activation: Review remote diagnostics via I/A Series Workbench to identify group-level isolation faults or overvoltage conditions in FOXBORO FBM205.
4. Maintenance:
   • Inspect module connectors quarterly (especially in vibration-prone areas) to prevent loose terminals and signal dropout.
   • Backup module configuration to I/A Series database for rapid replacement in case of failure.
   • Stock spare FOXBORO FBM205 modules—lead times for discrete input modules may exceed 8 weeks for hazardous-location certified units.
