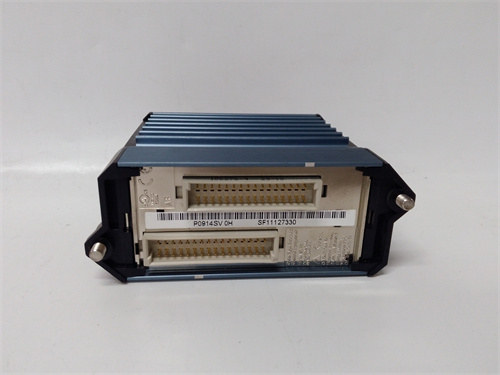

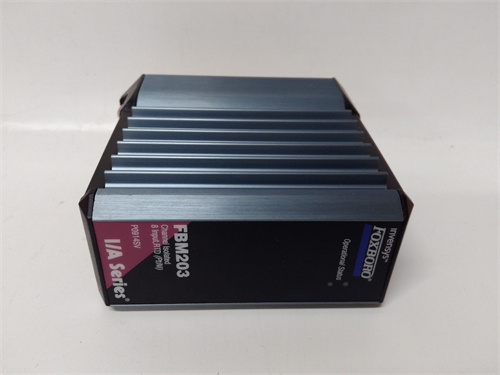

FOXBORO FBM203 Fieldbus Module

Product Description

The FOXBORO FBM203 is a high-performance, 4-channel analog input module belonging to the FBM (Fieldbus Module) series for the Foxboro I/A Series distributed control system (DCS). This module serves as a critical interface for connecting analog field instruments—such as pressure transmitters, temperature sensors (RTDs, thermocouples), and flow meters—directly to the I/A Series control network. It is responsible for accurately converting real-world continuous signals into precise digital values for use by the system’s control processors and operator workstations. Engineered for reliability in demanding process environments, the FOXBORO FBM203 provides robust signal conditioning, isolation, and diagnostic capabilities. For detailed technical specifications, configuration manuals, and safety guidelines, please visit the official resource: FOXBORO FBM203. The integration of the FBM203 into an FBM fieldbus assembly enables precise monitoring and control of key process variables, forming the sensory foundation for advanced regulatory control loops. The module’s design ensures long-term stability and accuracy, which are essential for maintaining product quality, safety, and operational efficiency in continuous processes.

Product Parameters

• Product Model: FOXBORO FBM203
• Series: Foxboro I/A Series FBM (Fieldbus Module).
• Module Type: Analog Input (AI) Module.
• Number of Channels: 4 isolated analog input channels.
• Input Signal Types: Configurable per channel for a variety of signals:
  • Voltage: ±100 mV, ±1 V, ±10 V.
  • Current: 4-20 mA (with or without 24V loop power).
  • Resistance: RTDs (e.g., Pt100, Cu10).
  • Thermocouples: Types J, K, T, E, R, S, B, N, C.
• Resolution: High resolution (typically 16-bit or better) for accurate measurement.
• Accuracy: High typical accuracy (e.g., ±0.05% of span) under reference conditions.
• Isolation: Channel-to-channel and channel-to-fieldbus isolation to prevent ground loops and ensure signal integrity.
• Fieldbus Communication: Connects to the parent FBM controller via the proprietary FBM fieldbus, which then interfaces with the main I/A Series nodebus.
• Diagnostics: Comprehensive diagnostics for out-of-range signals, open circuit, module health, and communication status.

Advantages and Features

• High Density and Flexibility: Four configurable channels in a compact module allow for efficient use of cabinet space. Each channel can be independently configured for a different sensor type, providing great application flexibility.
• Superior Accuracy and Stability: High-resolution analog-to-digital conversion, low drift, and excellent noise rejection ensure reliable and repeatable measurements over the long term, which is critical for precise process control.
• Robust Signal Conditioning: Built-in conditioning for thermocouple cold-junction compensation (CJC), linearization for RTDs and T/Cs, and filtering for noisy signals, reducing the need for external signal conditioners.
• Advanced Diagnostic Capabilities: Provides detailed diagnostic information that can be accessed remotely through the control system, enabling predictive maintenance and quick troubleshooting to minimize downtime.
• Hot-Swappable Design: Supports replacement in a live system (subject to redundancy and specific procedures), which is crucial for maintaining high availability in continuous processes.

Application Cases in Various Fields

• Oil Refining: Monitors temperatures at various points in a distillation column (using thermocouples) and pressures in reactor vessels (using 4-20 mA transmitters) for fractionation control.
• Chemical Processing: Measures pH, conductivity, and liquid level in batch reactors using a mix of analog signals, enabling precise recipe execution and quality control.
• Pharmaceutical Fermentation: Precisely monitors and controls bioreactor temperature (via RTD), pressure, and dissolved oxygen (via 4-20 mA) to maintain optimal cell growth conditions.
• Power Plant Boiler Control: Acquires critical temperatures from superheater and reheater sections (using thermocouples) and feedwater flow rates (using 4-20 mA) for efficient and safe boiler operation.

Comparison with Competing Products

The FOXBORO FBM203 competes with analog input modules from other major DCS vendors like Emerson (DeltaV CHARMs), Honeywell (Experion FTA), and Yokogawa (FA-M3). Its primary advantage is its seamless, native integration and optimized performance within the Foxboro I/A Series ecosystem, known for its robust control capabilities and user interface. Compared to generic analog input cards, the FBM203 offers superior built-in signal conditioning for a wider variety of sensors, higher channel density, and more comprehensive diagnostics tailored for process industry needs. It represents a high-reliability, system-integrated component versus a stand-alone data acquisition device.

Selection Suggestions and Precautions

1. System Compatibility Verification: Confirm that the FOXBORO FBM203 is compatible with your specific I/A Series FBM fieldbus assembly (e.g., FBM201, FBM202) and the associated controller (e.g., FCP270). Compatibility with the system software version is also crucial.
2. Sensor Type and Configuration: Meticulously plan the sensor type for each of the 4 channels. The module’s configuration in the I/A Series engineering tools must exactly match the physical sensor and wiring (e.g., 2-wire vs. 4-wire RTD, thermocouple type). Incorrect configuration yields faulty readings.
3. Wiring and Grounding Practices: Use proper shielded, twisted-pair cables for analog signals. Follow manufacturer guidelines for grounding to avoid ground loops and ensure the module’s specified accuracy and noise immunity are achieved.
4. Intrinsic Safety (IS) Considerations: If used in a hazardous area, ensure the loop is properly designed with approved intrinsic safety barriers or isolators. The FBM203 itself is typically a non-incendive or associated apparatus.
