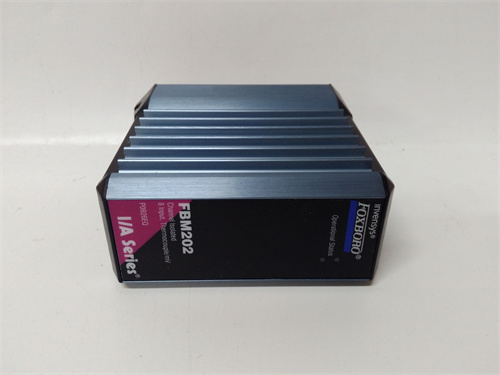

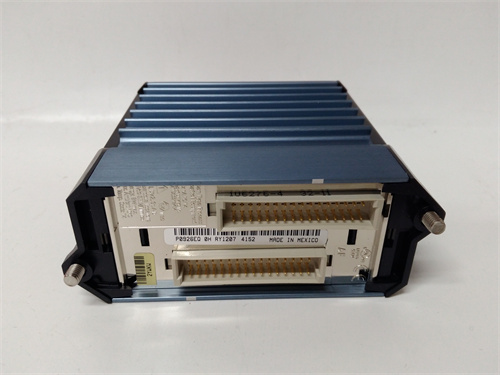

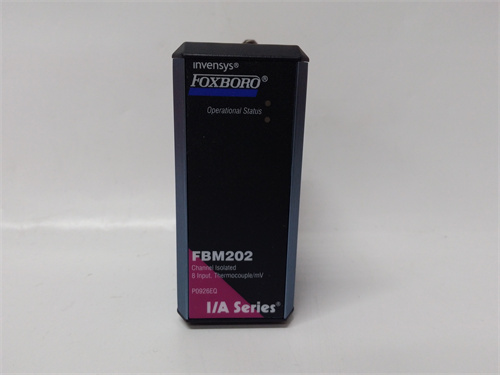

Foxboro FBM202 P0926EQ

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM202 P0926EQ
• Core Analog Output Parameters
  • Output Channels: 16 isolated channels (configurable per channel)
  • Supported Signal Types:
    • Current: 4-20mA DC (sink/source), 0-20mA DC
    • Voltage: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
  • Resolution: 16-bit
  • Accuracy: ±0.02% of full scale (25°C)
  • Load Capacity: 0-600Ω (4-20mA), 0-5kΩ (0-10V)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Overcurrent/short-circuit detection, open-load detection, output drift monitoring, LED status indicators (per channel group)
  • Update Rate: 50ms per channel (configurable down to 10ms)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 15W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. High-Density Isolated Outputs: FOXBORO FBM202 P0926EQ integrates 16 isolated analog output channels into a single module, reducing chassis space requirements by up to 50% compared to low-density modules and lowering overall system hardware costs for large-scale control applications.
2. Exceptional Precision & Flexibility: 16-bit resolution and ±0.02% full-scale accuracy ensure precise control signal delivery, while per-channel configurability (current/voltage) accommodates diverse actuator types without additional hardware.
3. Comprehensive Device Protection: Built-in overcurrent, short-circuit, and open-load detection prevents damage to the module and connected field devices (e.g., control valves, variable speed drives), minimizing unplanned downtime and maintenance costs.
4. Hot-Swappable Design: The module supports hot-swappable replacement without DCS shutdown, allowing maintenance during continuous operation—critical for mission-critical processes like refinery reactor control and power plant turbine regulation.

Application Fields & Cases

1. Oil Refinery Valve Control: A major oil refinery deployed FOXBORO FBM202 P0926EQ modules in its Foxboro I/A Series DCS to control 16 control valves per module in a crude distillation unit. The module’s high accuracy (±0.02%) ensured precise valve positioning, optimizing distillation efficiency and reducing energy consumption by 9%.
2. Chemical Plant Batch Reactor Actuation: A petrochemical facility used FOXBORO FBM202 P0926EQ to output 4-20mA signals to dosing pumps and agitator speed controllers in batch reactors. Open-load detection alerted operators to a faulty pump motor before process disruption, avoiding costly batch waste and ensuring product quality.
3. Power Generation Turbine Regulation: A combined-cycle power plant integrated FOXBORO FBM202 P0926EQ into its Foxboro Evo™ DCS to regulate turbine fuel valves and steam dampers (0-10V signals). The module’s fast update rate (10ms) enabled real-time adjustments to turbine load, improving grid stability and reducing emissions by 12%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM202 P0926EQ is ideal for Foxboro I/A Series/Evo™ DCS users needing high-density, high-precision analog output with comprehensive protection (e.g., oil & gas, chemical processing). For Emerson DeltaV DCS, choose DeltaV AO modules (with multiple modules for high-density needs); for Siemens S7-400 systems, select S7-400 AO modules (with expansion racks).
2. Precautions:
   • Configure signal types (current/voltage) and load limits per channel via Foxboro engineering software to match connected actuators—incorrect settings may damage devices or cause control errors.
   • Use shielded twisted-pair cables for analog output wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near motors, switchgear, or VFDs).
   • Verify compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) before installation—older firmware may require updates for full functionality.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly check diagnostic logs for overcurrent or open-load alerts to identify actuator faults before they impact process control.
