FOXBORO FBM201E

Description

Product Description

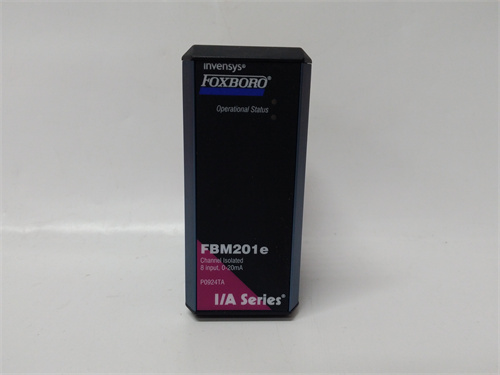

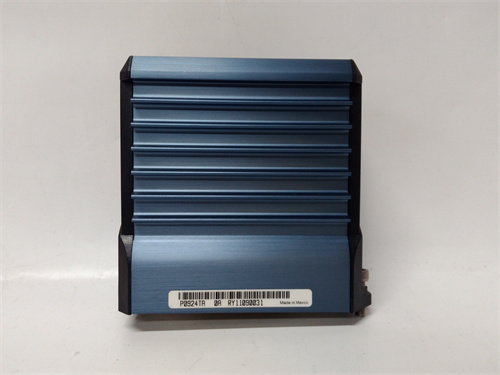

The FOXBORO FBM201E is an enhanced high-reliability analog input module designed as a key component within the Foxboro I/A Series distributed control system (DCS), now part of Schneider Electric’s industrial automation portfolio. This module represents an evolution of the proven FBM201 design, incorporating improvements in performance, diagnostics, and reliability for demanding process industry applications. The core function of the FOXBORO FBM201E is to receive and process analog signals from field instrumentation such as pressure transmitters, temperature sensors, flow meters, and level transmitters, converting these signals into digital values for use by the control system. Engineered for the demanding environments of continuous process industries, the FOXBORO FBM201E features high accuracy, galvanic isolation, and enhanced diagnostic capabilities that ensure reliable operation in refineries, chemical plants, power generation facilities, and other industrial settings.

Product Parameters

• Model Number: FOXBORO FBM201E
• Type: Enhanced Analog Input Module
• Series: Foxboro I/A Series DCS
• Input Channels: 8 analog input channels (typical)
• Input Signal Types: 4-20 mA, 0-20 mA, 0-10 V, 1-5 V, and other industrial standards (configurable)
• Resolution: High-resolution A/D conversion for precise measurement
• Accuracy: Enhanced accuracy compared to base model for critical applications
• Isolation: Galvanic isolation between channels and between field and system circuits
• Diagnostics: Enhanced diagnostic capabilities with detailed channel health monitoring
• Indicators: Front-panel LEDs for power, communication, channel status, and diagnostic alerts
• Power Supply: Powered through fieldbus interface; external power for field devices may be required
• Mounting: DIN rail or panel mount in Foxboro field enclosure
• Operating Temperature: -20°C to +60°C (industrial range)

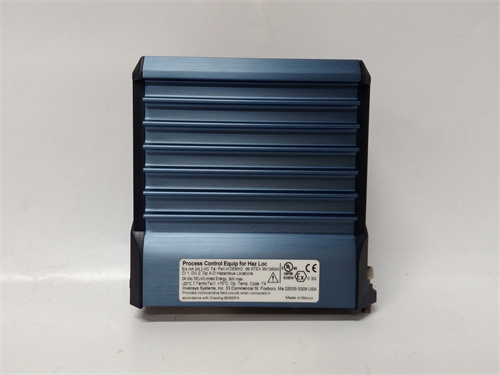

• Certification: CE, UL, CSA, ATEX (for installation in hazardous areas when properly housed)

Advantages and Features

The primary advantage of the FOXBORO FBM201E lies in its enhanced performance and diagnostic capabilities compared to earlier versions. By utilizing the FOXBORO FBM201E, process engineers benefit from improved measurement accuracy that can lead to tighter process control and better product quality. The enhanced diagnostics of the FOXBORO FBM201E provide detailed information about input signal quality, detecting issues such as open circuits, out-of-range conditions, and signal degradation before they impact process control. The module maintains the proven reliability of the FBM series while incorporating lessons learned from years of field experience into the FOXBORO FBM201E design. Per-channel configurability of the FOXBORO FBM201E allows different signal types to be connected to a single module, reducing spare parts inventory and simplifying engineering. The galvanic isolation design protects the control system from voltage transients and ground loops that may occur on field wiring. Compatibility with existing FBM201 installations ensures that the FOXBORO FBM201E can be used as a drop-in replacement or upgrade for earlier modules.

Application Cases in Application Fields

The enhanced precision and diagnostics of the FOXBORO FBM201E make it valuable across numerous process industries requiring accurate analog measurement.

• Oil Refining – Critical Control Loops: In a crude distillation unit’s critical control loops, the FOXBORO FBM201E provides the high-accuracy input needed for tight temperature and pressure control, improving product separation and energy efficiency.
• Chemical Processing – Reactor Monitoring: At a specialty chemical plant, the FOXBORO FBM201E interfaces with precision pressure transmitters on high-pressure reactors, where accurate measurement is essential for safe operation.
• Pharmaceutical Manufacturing – Critical Process Parameters: In a sterile API production facility, the FOXBORO FBM201E monitors critical parameters such as temperature and pressure in bioreactors, with enhanced diagnostics supporting regulatory compliance and data integrity.
• LNG Facilities – Cryogenic Measurements: At an LNG liquefaction plant, the FOXBORO FBM201E processes signals from cryogenic temperature sensors and pressure transmitters, with enhanced accuracy contributing to plant efficiency.
• Power Generation – Boiler Control: In a combined-cycle power plant, the FOXBORO FBM201E receives signals from flow transmitters measuring fuel gas and steam flow, with enhanced precision enabling optimization of combustion efficiency.

Comparison with Competing Products

When compared to standard analog input modules from other DCS suppliers, the FOXBORO FBM201E offers specific advantages for users invested in the Foxboro I/A Series ecosystem. While Emerson’s CHARM technology offers electronic marshalling flexibility, the FOXBORO FBM201E provides enhanced performance within the familiar Foxboro architecture. Compared to Honeywell’s analog input modules, the FOXBORO FBM201E offers the enhanced diagnostic capabilities that process engineers need for predictive maintenance and troubleshooting. For facilities with existing Foxboro infrastructure, upgrading to the FOXBORO FBM201E provides improved performance while maintaining compatibility with existing engineering tools and spare parts. The module’s enhanced accuracy and diagnostics make the FOXBORO FBM201E a compelling choice for critical applications where measurement quality directly impacts product quality or process safety.

Comparison with Standard FBM201

When compared to the standard FOXBORO FBM201, the FOXBORO FBM201E represents a significant enhancement in several key areas. The “E” version typically offers improved accuracy specifications, enabling tighter process control in critical applications. Enhanced diagnostic capabilities in the FOXBORO FBM201E provide more detailed information about input signal quality and module health, facilitating predictive maintenance and faster troubleshooting. The FOXBORO FBM201E may also incorporate improved components and design enhancements that increase long-term reliability. For new installations or upgrades, the FOXBORO FBM201E is the preferred choice when enhanced performance is required, while the standard FBM201 remains suitable for less demanding applications.

Selection Suggestions and Precautions

When selecting the FOXBORO FBM201E for your project, first verify that the enhanced accuracy and diagnostic features are justified by your application requirements. Ensure compatibility with your specific Foxboro I/A Series system version and fieldbus interface. When installing the FOXBORO FBM201E, follow Foxboro’s guidelines for field wiring, including proper shielding and grounding practices to maintain signal integrity and take full advantage of the module’s enhanced accuracy. Pay careful attention to the configuration of each channel, ensuring that the correct signal type and range are selected for each connected field device. For two-wire transmitters, ensure that appropriate field power is provided externally as the FOXBORO FBM201E typically does not supply loop power. Before commissioning, perform complete channel verification on the FOXBORO FBM201E using a calibrated signal source to confirm accuracy and configuration. Take advantage of the enhanced diagnostic features by configuring appropriate alarming for signal quality issues. When handling the FOXBORO FBM201E, observe proper electrostatic discharge precautions and follow the manufacturer’s installation procedures. Finally, maintain current backups of the control system configuration related to the FOXBORO FBM201E to enable rapid recovery in the event of module replacement. For critical applications, consider keeping a spare FOXBORO FBM201E on hand to minimize downtime.
