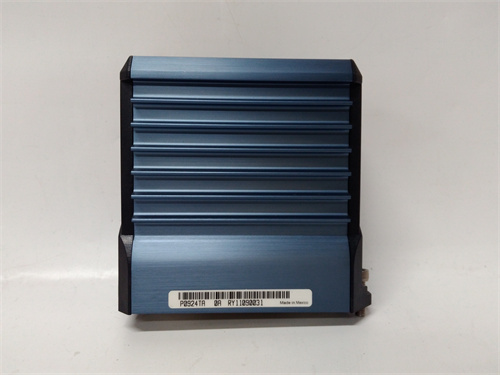

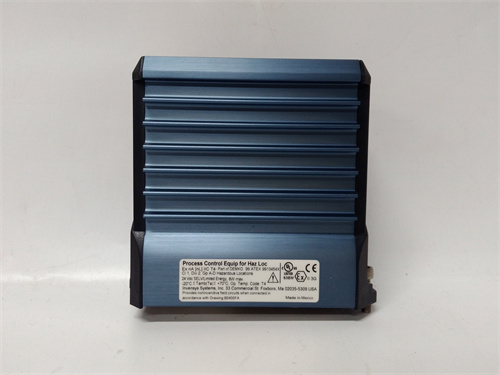

FOXBORO FBM201 P0916AA

Description

1. Product Overview

2. Product Parameters

2.1 Core FBM201 Module Specifications

• Number of Channels: 16 isolated single-ended 4-20mA DC input channels (4 channels per isolated group)
• Input Range: 0-20mA DC (configurable per channel; 4-20mA default)
• Resolution: 16-bit (0.00125% of full scale)
• Accuracy: ±0.02% of reading (25°C); ±0.05% of reading (-40°C to +70°C)
• Isolation: 1500V AC channel-to-channel (group isolation), 3000V AC channel-to-ground
• Response Time: ≤20ms (90% step response)
• Input Impedance: 250Ω (nominal for loop-powered devices)

2.2 P0916AA Chassis Interface Kit Specifications

• Compatibility: Foxboro I/A Series 8-slot/14-slot I/O chassis (P0916, P0917XQ)
• Interface Type: High-speed I/A Series backplane connector (100 Mbps data transfer)
• Mechanical Features: Hot-swappable module carrier, locking lever for secure chassis engagement, integrated ESD protection
• Power Delivery: 24V DC power distribution from chassis to FBM201 module (via P0916AA interface)

2.3 Combined Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Dimensions (Assembly): 100mm (W) × 150mm (H) × 35mm (D)
• Weight: 0.95kg (FBM201 + P0916AA kit)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: Foxboro I/A Series controllers (P0973JX, CP60/CP70), third-party 4-20mA transmitters/sensors, I/A Series Workbench/Control Studio
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards, combined assembly)

3. Advantages & Features

1. Turnkey Plug-and-Play Integration: The FOXBORO FBM201 P0916AA assembly includes a pre-mated FBM201 module and P0916AA interface kit, eliminating on-site wiring/configuration and reducing installation time by up to 40% compared to separate components.
2. Ultra-Precise 16-Channel Acquisition: FOXBORO FBM201 P0916AA delivers ±0.02% accuracy and 16-bit resolution across all 16 channels, ensuring reliable capture of critical process variables (e.g., LNG cryogenic temperatures, pharmaceutical reactor pressures) with minimal error.
3. Hot-Swappable & Redundancy-Ready: The integrated P0916AA carrier enables hot-swapping of FOXBORO FBM201 P0916AA in live chassis, while compatibility with I/A Series redundant power supplies ensures zero downtime during maintenance or module failure.
4. Robust Isolation & Noise Immunity: Group-level channel isolation (1500V AC) and 3000V AC channel-to-ground isolation protect FOXBORO FBM201 P0916AA from EMI/RFI interference in harsh industrial environments (e.g., refineries with high-voltage equipment), ensuring signal integrity.
5. Extended Environmental Durability: -40°C to +70°C operating range allows FOXBORO FBM201 P0916AA to perform in extreme conditions (arctic pipelines, desert power plants) where standard analog modules fail, reducing replacement costs and unplanned downtime.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery CDU/VDU (Vacuum Distillation Unit) process monitoring, pipeline flow/pressure data acquisition, offshore platform sensor input
• Chemical Manufacturing: Batch reactor pH/level/flow monitoring, polymer production temperature control, hazardous area analog signal capture
• Power Generation: Gas/steam turbine process variable input, boiler water level/pressure monitoring, renewable energy (solar/wind) inverter control
• Pharmaceutical: Sterile manufacturing process monitoring, bioreactor sensor input, cleanroom environmental control (temperature/humidity)

4.2 Typical Cases

1. Refinery CDU Monitoring System: A Gulf Coast oil refinery deployed 20 FOXBORO FBM201 P0916AA assemblies to monitor 320 process variables (pressure, temperature, flow) across 5 CDUs. The plug-and-play design reduced installation time by 35% compared to legacy modules, while 16-bit resolution enabled precise temperature control, improving diesel yield by 1.5%.
2. Gas Turbine Power Plant Control: A European combined-cycle power plant integrated FOXBORO FBM201 P0916AA into its I/A Series DCS to acquire 4-20mA signals from turbine vibration, temperature, and pressure sensors. Hot-swappable functionality allowed module replacement during peak power generation, eliminating a potential 8-hour shutdown and saving €120,000 in lost revenue.
3. Pharmaceutical Batch Process Control: A U.S. biotech manufacturer used FOXBORO FBM201 P0916AA to monitor 16 critical bioreactor variables (pH, dissolved oxygen, temperature). ±0.02% accuracy ensured batch consistency, reducing product rejection rates by 10% and improving FDA compliance.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Density Analog Input Requirements: Choose FOXBORO FBM201 P0916AA for applications needing 16 4-20mA channels per module—its high density reduces chassis footprint and wiring complexity compared to 8-channel alternatives.
2. Fast-Track Installations: Opt for FOXBORO FBM201 P0916AA for plant upgrades or new builds—pre-assembled plug-and-play design eliminates on-site configuration and cuts installation time by 30-40%.
3. Extreme/Harsh Environments: Select FOXBORO FBM201 P0916AA for sites with wide temperature ranges or hazardous locations—extended environmental rating and ATEX certification ensure reliable operation.

6.2 Precautions

1. Installation Guidelines:
   • Install FOXBORO FBM201 P0916AA only in Foxboro I/A Series chassis (P0916, P0917XQ); use the integrated locking lever to secure the module—loose connections cause signal dropout or communication errors.
   • Use shielded twisted-pair wiring for 4-20mA signals (maximum 1000m) and ground shields at the field device end to minimize EMI interference with FOXBORO FBM201 P0916AA.
2. Configuration Notes:
   • Configure channel ranges and alarm thresholds via Foxboro Control Studio before commissioning—match scaling to field device output (e.g., 4-20mA = 0-100 bar for pressure transmitters).
   • Enable open-loop detection for loop-powered devices to quickly identify broken wiring or failed transmitters connected to FOXBORO FBM201 P0916AA.
3. Troubleshooting:
   • For erratic signal readings: Check for EMI sources (VFDs, high-voltage cables) near input wiring, verify shield grounding, and inspect the P0916AA backplane connector for corrosion.
   • For “Fault” LED activation: Review I/A Series Workbench diagnostics to identify overrange/underrange conditions or group-level isolation faults in FOXBORO FBM201 P0916AA.
4. Maintenance:
   • Inspect the P0916AA locking lever and backplane connector quarterly (especially in vibration-prone areas) to prevent module disconnection.
   • Backup module configuration to the I/A Series database—critical for rapid replacement of FOXBORO FBM201 P0916AA in case of failure.
   • Stock spare assemblies—lead times for FOXBORO FBM201 P0916AA may exceed 10 weeks for hazardous-location certified units.
