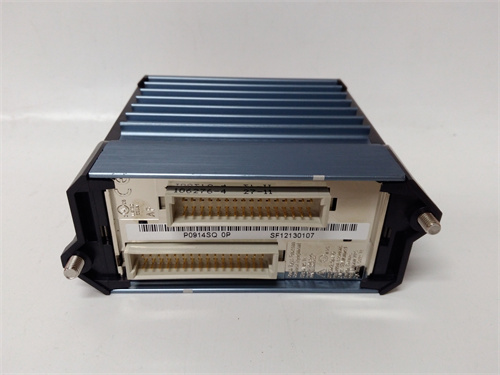

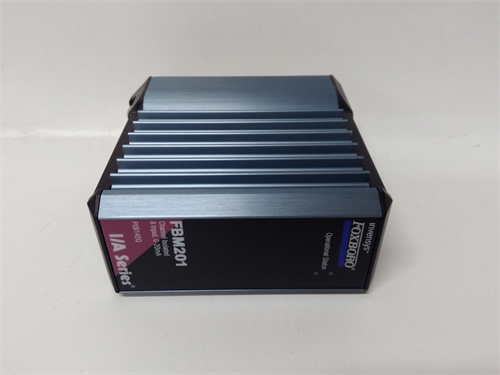

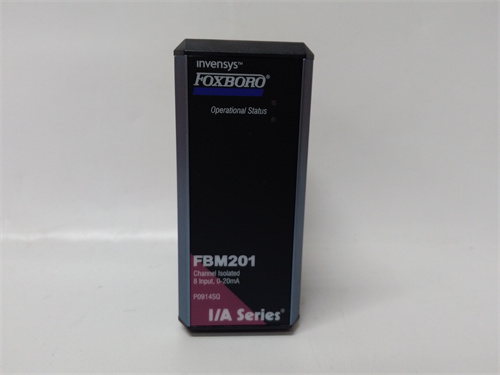

FOXBORO FBM201 P0914SQ

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM201 P0914SQ
• Core Analog Input Parameters
  • Input Channels: 16 isolated channels (differential inputs)
  • Supported Signal Types:
    • Current: 4-20mA DC (loop-powered or externally powered)
    • Voltage: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
  • Resolution: 16-bit
  • Accuracy: ±0.02% of full scale (25°C)
  • Input Impedance: 1MΩ (voltage), 250Ω (current)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP270, FCP280, FCP400), Foxboro Evo™ DCS
  • Diagnostic Functions: Open-loop detection (current), overrange/underrange alerts, short-circuit detection, LED status indicators (per channel group)
  • Update Rate: 100ms per channel (configurable down to 20ms)
  • Configuration: Foxboro I/A Series Workbench, Evo™ Engineering Studio
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 12W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. High-Density Isolated Channels: FOXBORO FBM201 P0914SQ packs 16 isolated analog input channels into a single module, reducing chassis space requirements by up to 50% compared to low-density modules and lowering overall system hardware costs for large-scale industrial applications.
2. Exceptional Accuracy & Resolution: 16-bit resolution and ±0.02% full-scale accuracy ensure precise measurement of critical process variables (e.g., flow, pressure, level), directly impacting product quality and process efficiency in chemical and oil & gas operations.
3. Comprehensive Diagnostics: Open-loop detection, overrange alerts, and short-circuit monitoring enable rapid identification of sensor or wiring faults, reducing mean time to repair (MTTR) and minimizing unplanned process downtime.
4. Hot-Swappable Design: The module supports hot-swappable replacement without DCS shutdown, allowing maintenance during continuous operation—essential for mission-critical processes like power plant turbine monitoring and refinery distillation control.

Application Fields & Cases

1. Oil Refinery Process Monitoring: A major oil refinery deployed FOXBORO FBM201 P0914SQ modules in its Foxboro I/A Series DCS to monitor 16 flow and pressure signals (4-20mA) per module across a crude distillation unit. The high-density design reduced the number of modules needed by 40%, while isolation eliminated signal interference from nearby pumps and compressors.
2. Chemical Plant Batch Reactor Control: A petrochemical facility used FOXBORO FBM201 P0914SQ to acquire 4-20mA signals from reactor temperature and pressure transmitters, feeding data to the DCS for real-time process control. Open-loop detection alerted operators to a faulty pressure transmitter, preventing a dangerous overpressure event and ensuring batch safety.
3. Power Generation Boiler Monitoring: A combined-cycle power plant integrated FOXBORO FBM201 P0914SQ into its Foxboro Evo™ DCS to monitor 16 boiler water level and steam pressure signals (0-10V). The module’s high accuracy (±0.02%) ensured compliance with safety regulations, while hot-swappable installation allowed maintenance without disrupting power generation.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM201 P0914SQ is ideal for Foxboro I/A Series/Evo™ DCS users needing high-density, high-accuracy analog input (4-20mA/voltage) with comprehensive diagnostics (e.g., oil & gas, chemical processing). For Emerson DeltaV DCS, choose DeltaV AI modules; for Siemens S7-400 systems, select S7-400 AI modules (with additional modules for high-density needs).
2. Precautions:
   • Configure signal types (current/voltage) per channel via Foxboro engineering software to match connected sensors—incorrect settings will cause measurement errors or module damage.
   • Use shielded twisted-pair cables for voltage/current wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near motors, switchgear, or VFDs).
   • Verify the module’s compatibility with Foxboro DCS firmware (minimum v9.0 for I/A Series, v2.0 for Evo™) before installation—older firmware may require updates for full functionality.
   • Follow Foxboro hot-swappable procedures when replacing the module to avoid disrupting the DCS chassis or other connected modules.
   • Regularly check diagnostic logs for open-loop or short-circuit alerts to identify sensor/wiring faults before they impact process control.
