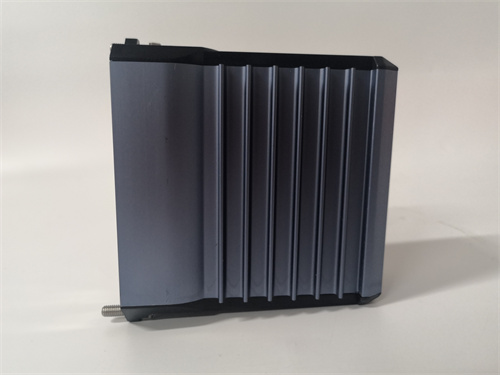

FOXBORO FBM01

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO FBM01
• Core Analog Input Parameters
  • Input Channels: 8 isolated channels (differential inputs)
  • Supported Signal Types:
    • Thermocouple: J, K, T, E, R, S, B, N
    • RTD: Pt100 (2/3-wire), Cu100
    • Millivolt: 0-100mV, ±50mV
    • Voltage: 0-5V (optional via configuration)
  • Resolution: 16-bit (thermocouple/RTD), 14-bit (millivolt)
  • Accuracy: ±0.2°C (Pt100 RTD), ±0.5°C (thermocouple), ±0.1% full scale (millivolt)
  • Isolation: 1000V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Foxboro I/A Series DCS (FCP200, FCP270, FCP280 controllers)
  • Diagnostic Functions: Open-wire detection (thermocouple/RTD), overrange/underrange alerts, LED status indicators (per channel group)
  • Cold-Junction Compensation: Internal sensor (±0.5°C accuracy)
  • Configuration: Foxboro I/A Series Workbench, Legacy Configuration Tool
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from I/A Series chassis), power consumption ≤ 8W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 100mm (W) × 200mm (H) × 150mm (D) (I/A Series chassis-compatible)
  • Installation: Hot-swappable (Foxboro certified chassis)

Advantages & Features

1. Low-Level Signal Expertise: FOXBORO FBM01 is optimized for weak analog signals (thermocouple, millivolt), with built-in signal conditioning and noise rejection to ensure accurate measurement—critical for applications like furnace temperature monitoring or chemical reaction calorimetry.
2. Integrated Cold-Junction Compensation: Dedicated cold-junction compensation for thermocouple inputs eliminates the need for external compensation hardware, reducing system complexity and calibration costs.
3. Hot-Swappable & Field-Proven Design: The module’s hot-swappable capability allows maintenance without DCS shutdown, while its legacy design has been field-tested for decades in industrial environments, ensuring reliable performance in long-running systems.
4. Isolated Channel Architecture: 1000V AC channel-to-channel isolation prevents cross-talk and ground loops, safeguarding signal integrity in high-noise industrial settings (e.g., near motors, transformers, or switchgear).

Application Fields & Cases

1. Power Generation Boiler Temperature Monitoring: A coal-fired power plant deployed FOXBORO FBM01 modules in its Foxboro I/A Series DCS to monitor 8 boiler tube temperatures (K-type thermocouples) per module. The module’s cold-junction compensation ensured ±0.5°C accuracy, enabling early detection of overheating tubes and preventing catastrophic failures.
2. Chemical Plant Reaction Calorimetry: A specialty chemical manufacturer used FOXBORO FBM01 to measure millivolt signals from reaction calorimeters (0-50mV), providing real-time data on heat release during batch reactions. The module’s noise rejection capabilities filtered out electrical interference from nearby agitators, ensuring precise calorimetric measurements and safe reaction control.
3. Pulp & Paper Mill Dryer Temperature Control: A pulp mill integrated FOXBORO FBM01 into its I/A Series DCS to monitor dryer cylinder temperatures (Pt100 RTDs). Open-wire detection alerted operators to broken RTD wiring before temperature excursions damaged product quality, reducing waste by 15%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO FBM01 is ideal for Foxboro I/A Series DCS users with legacy systems needing low-level analog signal input (thermocouple, millivolt) and hot-swappable support. For Emerson DeltaV DCS, choose DeltaV AI Low-Level modules; for Siemens S7-400 systems, select S7-400 AI 8xTC/RTD modules.
2. Precautions:
   • Verify compatibility with Foxboro I/A Series firmware (minimum v7.0) to ensure communication stability—older firmware may require updates for full functionality.
   • Use twisted-pair shielded cables for thermocouple/RTD wiring and ground shields at the module end only to avoid ground loops and noise interference.
   • Calibrate cold-junction compensation annually (per Foxboro guidelines) to maintain thermocouple measurement accuracy, especially in environments with wide ambient temperature swings.
   • Follow hot-swappable procedures (per module documentation) to avoid damaging the DCS chassis or other modules during replacement.
   • For millivolt applications, ensure the module is configured for unipolar/bipolar signals to match the sensor output (e.g., 0-100mV vs. ±50mV).
