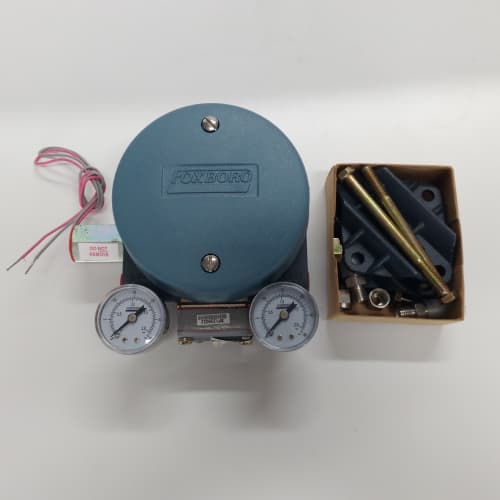

FOXBORO E69F-B12-MS

Description

Product Description

Product Parameters

• Brand/Model: FOXBORO E69F-B12-MS
• Core Measurement Parameters
  • Pressure Range: 0-100 bar (gauge pressure), configurable down to 0-1 bar
  • Accuracy: ±0.075% of span (including linearity, hysteresis, and repeatability)
  • Output Signal: 4-20mA DC (2-wire) + HART® 7 digital signal
  • Response Time: ≤ 50ms (adjustable via HART)
  • Temperature Effect: ±0.01% of span/°C (compensated temperature range)
• Environmental & Mechanical Parameters
  • Compensated Temperature Range: -20°C ~ +85°C
  • Operating Temperature Range: -40°C ~ +125°C
  • Enclosure Rating: NEMA 4X/IP67 (indoor/outdoor use)
  • Explosion-Proof Certification: ATEX II 1G Ex ia IIC T6 Ga, IECEx Ex ia IIC T6 Ga (Zone 1)
  • Process Connection: 1/2″ NPT male (stainless steel 316L)
  • Electrical Connection: 1/2″ NPT conduit entry (terminal block)
  • Wetted Materials: 316L stainless steel (sensor), Viton® O-rings
• Communication & Power Parameters
  • Protocol: HART® 7 (compatible with HART 5/6)
  • Power Supply: 12-42V DC (2-wire loop-powered)
  • Load Resistance: 0-600Ω (at 24V DC supply)

Advantages & Features

1. High Precision & Stability: FOXBORO E69F-B12-MS offers ±0.075% span accuracy and low temperature drift, ensuring reliable pressure measurement for critical processes (e.g., reactor pressure control, pipeline monitoring) where precision directly impacts product quality or safety.
2. Smart HART Communication: HART® 7 support enables remote configuration (range adjustment, damping), calibration (zero/span), and diagnostic monitoring (sensor health, loop integrity) without physical access to the transmitter—reducing maintenance downtime and costs in hard-to-reach or hazardous locations.
3. Rugged & Hazardous Area Certified: Explosion-proof design (ATEX/IECEx Zone 1) and IP67 enclosure protect the transmitter from environmental damage and ensure safe operation in flammable or corrosive industrial environments.
4. Wide Compatibility: 4-20mA analog output + HART digital signal ensures seamless integration with Foxboro I/A Series DCS, Honeywell Experion® PKS, Siemens PCS 7, and other mainstream control systems.

Application Fields & Cases

1. Oil & Gas Pipeline Pressure Monitoring: A midstream oil company deployed FOXBORO E69F-B12-MS transmitters to monitor pipeline pressure (0-50 bar) in a crude oil transportation network. HART communication allowed remote calibration during routine maintenance, eliminating the need for on-site technicians in remote locations and cutting maintenance costs by 25%.
2. Chemical Reactor Pressure Control: A petrochemical facility installed FOXBORO E69F-B12-MS in batch reactors (0-100 bar gauge pressure) to provide real-time pressure data to the Foxboro I/A Series DCS. The transmitter’s high accuracy (±0.075%) ensured precise reactor pressure regulation, preventing overpressure events and improving batch consistency.
3. Water Treatment Plant Pump Pressure Measurement: A municipal wastewater treatment plant used FOXBORO E69F-B12-MS to monitor booster pump discharge pressure (0-10 bar). The IP67 enclosure and corrosion-resistant wetted materials withstood harsh wastewater environments, while HART diagnostics alerted operators to sensor drift before measurement errors occurred, reducing unplanned downtime by 30%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: FOXBORO E69F-B12-MS is ideal for industrial pressure measurement applications requiring HART communication, hazardous area certification, and wide temperature tolerance (e.g., oil & gas pipelines, chemical reactors). For applications needing Foundation Fieldbus (FF) or Profibus protocols, choose Rosemount 3051TG; for compact installations with limited space, select Emerson Rosemount 2051.
2. Precautions:
   • Verify the pressure range matches process requirements (e.g., gauge vs. absolute pressure) and configure via HART before installation to avoid measurement errors.
   • Use compatible HART communicators (e.g., Foxboro Field Communicator, Emerson AMS Trex) for remote configuration/calibration—unauthorized tools may damage the transmitter’s firmware.
   • Ensure electrical connections comply with hazardous area wiring standards (e.g., intrinsically safe barriers for Zone 1 installations) to maintain explosion-proof certification.
   • Regularly check HART diagnostic data (e.g., sensor drift, loop resistance) to detect early signs of failure and schedule preventive maintenance.
   • Avoid exposing the transmitter to media incompatible with wetted materials (316L stainless steel/Viton®)—use chemical compatibility charts to select appropriate process seals for corrosive fluids.
