FM9925A-E Replacement | ABB Freelance DO Module

Description

Product Introduction (Anti-Template)

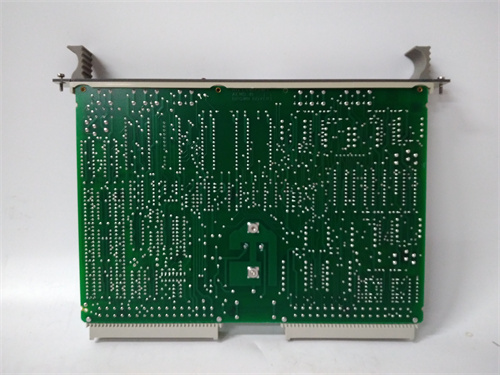

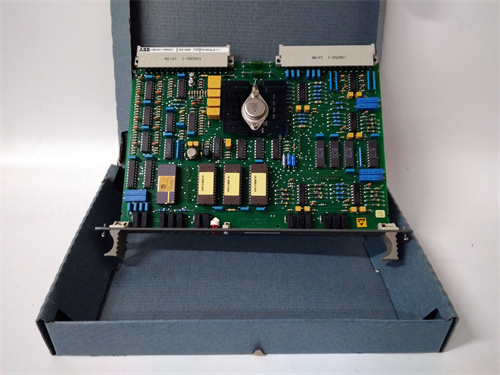

Solenoids, pilot lights, and interposing relays—the FM9925A-E is what drives them from the Freelance DCS. It’s the standard 24 VDC digital output module for the Freelance 200F series, taking the logic from the controller and converting it into the wet contact signals that actually actuate field devices. This module is pure workhorse I/O.

It gives you 16 channels of transistor-switched outputs, each capable of 0.5A continuous. The value is in its density and diagnostic capability. You get 16 points in a single wide module, and because it’s part of the Freelance system, the controller monitors each output for short circuits and overloads. For a panel builder, it means fewer modules to stock and less wiring complexity compared to using individual relays for every output.

 Key Technical Specifications

Compatible Replacement Models

The Freelance 200F series has a clear I/O structure. Here is how the FM9925A-E fits and what alternatives exist.

• ✅ Drop-in Replacement: FM9925A-E (any revision)
  This module may have minor hardware revisions, but any FM9925A-E is a 100% functional replacement. It fits in the same I/O rack, uses the same termination modules (e.g., TA523A), and is configured identically in the Freelance engineering tool. The -E suffix is part of the model, not a revision indicator.
• ⚠️ Software Compatible: FM9926A-E
  This is the digital input module (24 VDC). It uses the same physical rack, same backplane, and same termination block type. However, the configuration in the Freelance project must define the slot as an input module. It is not a replacement for a failed output module, but if you are reconfiguring a rack, the physical mounting is identical.
• ❌ Hardware Incompatible: FM9915A-E
  This is an analog module. While it fits in the same rack, the termination wiring is completely different (analog signals require shielding and different termination blocks). Plugging an analog module into a slot configured for digital outputs will result in no valid I/O and likely a configuration fault in the controller.

Frequently Asked Questions (FAQ)

Do I need a separate termination unit for the FM9925A-E?
Yes. The FM9925A-E is the electronics module. It plugs into the backplane, and the field wiring lands on a separate termination module (like the TA523A or similar). A ribbon cable connects the two. You cannot land 16-gauge wire directly onto the FM9925A-E module itself. Always verify you have the correct mating termination unit for your specific wiring needs (e.g., screw clamp, spring clamp).

What do the LEDs indicate on this module?
The FM9925A-E itself typically has a single “RUN” or “OK” LED to indicate communication with the controller. The individual channel status (on/off) and fault indicators (short circuit) are usually located on the separate termination module. If you see a channel fault LED lit, you have an overload or short on that specific output wiring.

Can I hot-swap an FM9925A-E in a running Freelance system?
The Freelance 200F series supports module replacement with the system powered, provided the slot is configured for it and the process allows it. However, removing the module will drop all 16 outputs to zero. If any of those outputs are controlling critical devices (like a valve that should stay open), you will cause a process upset. Always verify the impact of removing the module before you pull it. The safe bet is to put the loop in manual or bypass the outputs if possible.

What causes an FM9925A-E output channel to fail?
The most common failure is a short circuit on the field wiring that exceeds the module’s protection capability. While the module is short-circuit protected, repeated dead shorts can eventually damage the output transistor. We also see failures from inductive kickback—if you’re driving solenoids or relays without proper snubber diodes across the coil, the voltage spike when the output turns off can punch through the transistor.

My output shows “ON” in the software, but the field device doesn’t energize. What should I check?
Start at the termination module. Use a meter to check for 24V between the output terminal and common. If voltage is present, the issue is in your field wiring or the device itself. If voltage is absent, check the 24V field power supply to the termination module. Is it present and at the correct level? If field power is good and the output still has no voltage, the output channel is likely dead and the module needs replacement.

What is the difference between sourcing and sinking with this module?
The FM9925A-E is typically a sourcing output module. This means it provides the +24V to the load when the output is on, and the load connects to the common (0V) return. Verify your field devices (solenoids, relays) are compatible with sourcing outputs. If you have sinking devices, you may need to use interposing relays to invert the signal. Check the manual for your specific termination unit to confirm the wiring scheme
