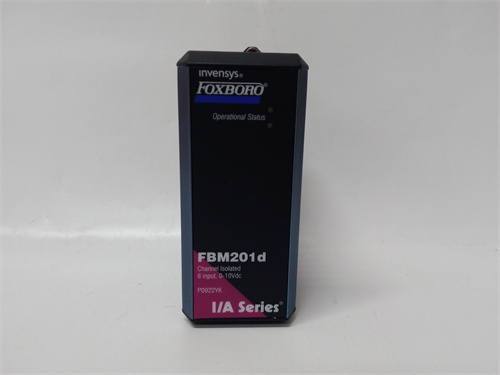

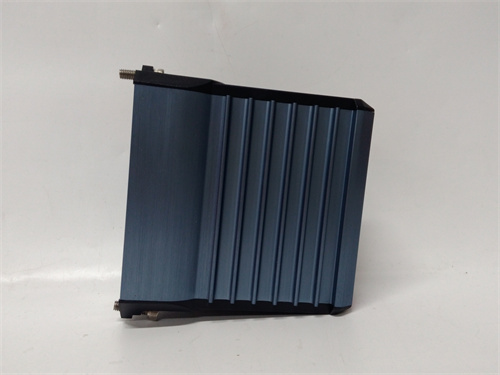

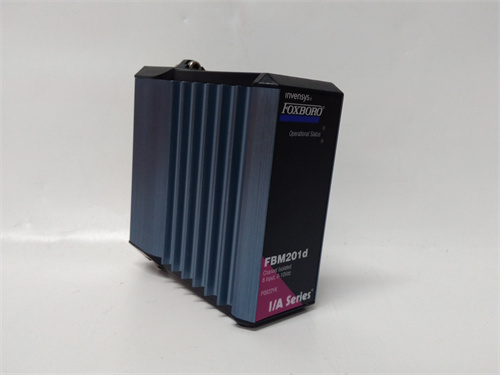

FBM201D Replacement | FOXBORO FBM200 Analog Module

Description

Product Introduction (Anti-Template)

You’ve got pressure transmitters and flow meters screaming 4-20 mA signals back to the DCS, and you need a reliable way to get that data into the control logic. That’s the FBM201D’s function. It’s the standard 8-channel analog input module for FOXBORO’s FBM200 series, sitting on the fieldbus and converting those analog loops into digital data for the I/A Series workstation.

This module isn’t just a signal converter; it performs signal conditioning and isolation right at the point of entry. Its primary value is in channel density and system integration. Running 8 loops through one module saves rack space, and because it communicates via the FOXBORO fieldbus, you get the data into the controller with minimal scan latency—typically under 50ms. It’s a workhorse module for any process plant running I/A.

Key Technical Specifications

Compatible Replacement Models

FOXBORO uses a fairly straightforward naming convention, but the “D” suffix and the FBM200 family have specific compatibilities you need to respect.

• ✅ Drop-in Replacement: FBM201 (any suffix, e.g., A, B, C, D)
  The base model FBM201 has gone through several revisions (A, B, C, D). Any of these revisions are hardware-compatible with the same termination assemblies (FTAs) and backplane bus. The “D” suffix typically indicates a later component revision or a specific factory calibration. You can swap an FBM201B for an FBM201D without changing configuration or wiring—just install and verify channel status.
• ⚠️ Software Compatible: FBM202
  This is the analog output equivalent (4-20 mA output). It fits in the same rack and uses the same type of FTA, but the configuration in the I/A Series workstation must be changed to treat the slot as an output module. It’s not a replacement for input, but if you are re-purposing a rack slot, the physical installation process is identical.
• ❌ Hardware Incompatible: FBM204
  This is a discrete input module (24 VDC dry contact). While it mounts on the same DIN rail and uses a similar FTA, the field wiring is different, and the internal electronics are designed for voltage sensing, not current loops. Plugging an FBM204 into a slot configured for an FBM201D will result in no valid input data.

 Frequently Asked Questions (FAQ)

Do I need a separate termination assembly (FTA) for the FBM201D?
Yes, absolutely. The FBM201D itself is the electronics module. It connects via a ribbon cable or a backplane connector to a specific FTA (Field Termination Assembly), such as the P0400 series. The FTA is where you land your field wiring from the transmitters. You cannot land wires directly on the FBM201D module. When you order, verify you have the correct mating FTA, or you won’t be able to hook it up.

What do the LEDs on the FBM201D indicate?
The module itself usually has limited LEDs—typically just a “PWR” (power) and a “COMM” (communication) light. The channel status (loop health, open circuit) is typically displayed on the FTA. If you see a solid “PWR” but a blinking or off “COMM,” the module is powered but not talking to the fieldbus controller (FCM). This points to a bus configuration issue or a bad backplane connection.

Can I replace an FBM201D with the power on?
Officially, FOXBORO documentation says no—the FBM200 series is not designed for true hot-swapping in a live control system. However, in practice, we’ve seen techs do it on non-critical loops. The risk is arcing on the connector pins, which can cause a glitch on the fieldbus or even damage the module. If the loop is critical, power down the rack or ensure the process is in a safe state before swapping.

What causes an FBM201D to fail in the field?
The most common failure is surge damage coming in from the field wiring. A lightning strike near a transmitter can send a spike back through the 4-20 mA loop and fry the input circuitry on the module. We also see failures in the DC-DC converter section that provides channel isolation. Less common, but we’ve seen it, is corrosion on the connector pins from humidity, causing intermittent communication faults.

My system shows “Bad Input” on all channels of one FBM201D. Is it the module?
Start by checking the FTA. Are all the fuses (if present) on the FTA intact? Next, check the ribbon cable between the FTA and the module. Those cables can work loose over time from vibration. If the FTA and cabling check out, then suspect the module. The “Bad Input” status on all channels often means the module has lost its internal calibration or the ADC (Analog-to-Digital Converter) has failed.

What is the difference between FBM201 and FBM201D?
The “D” is simply a revision level. FOXBORO revises modules to accommodate component changes (e.g., a chip goes end-of-life, replaced with a newer equivalent) or to improve manufacturing. Functionally, there is no difference between an FBM201C and an FBM201D. They use the same configuration files, the same FTAs, and the same wiring. The only time it matters is if you are bound by strict plant standards that require exact revision matching for spares.
